1990 Yamaha Y-Zinger (PW50A) Handlebar - Cable Diagram

← All diagrams

Find the part on the Handlebar - Cable diagram for your 1990 Yamaha Y-Zinger (PW50A), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

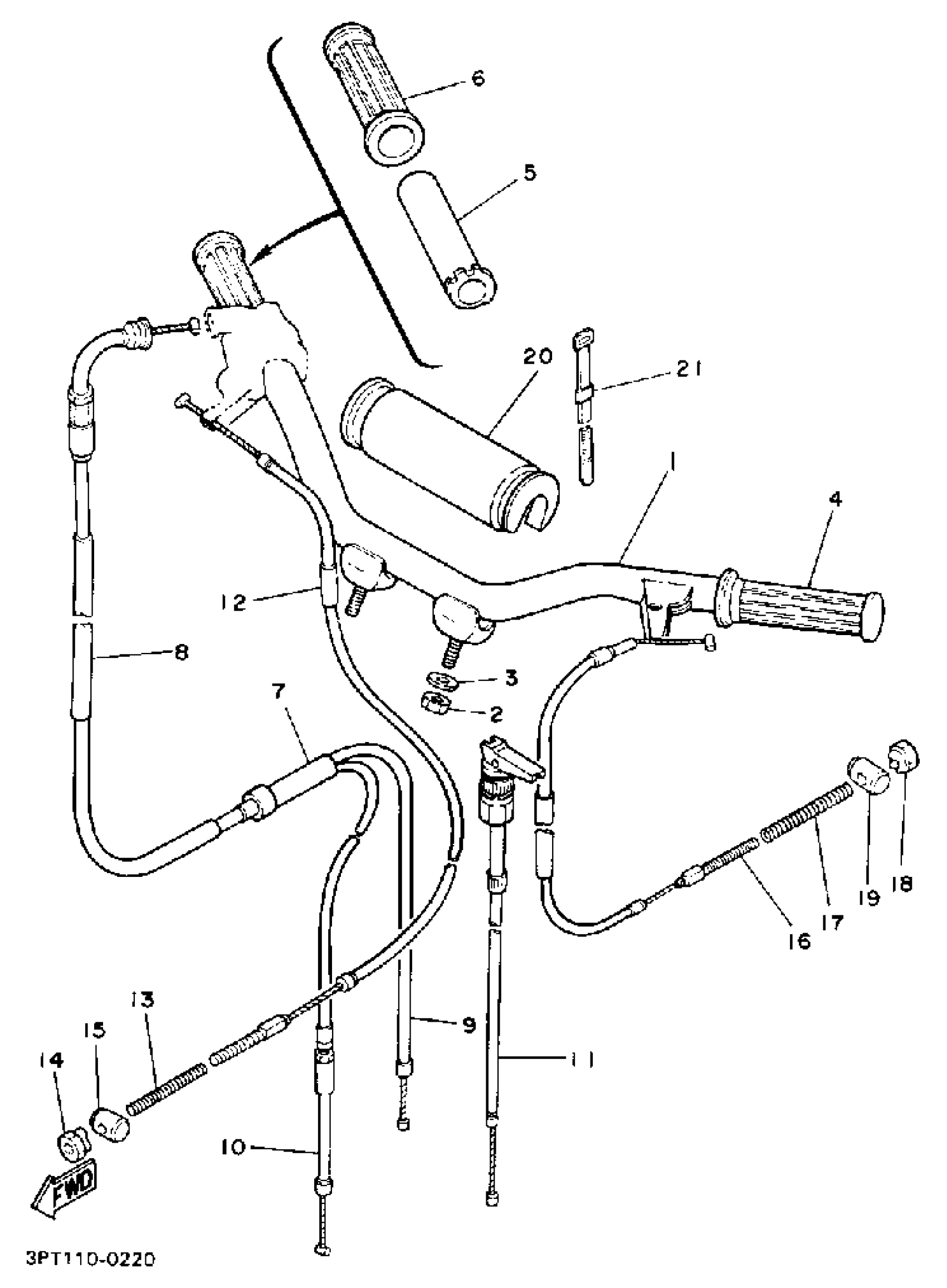

1990 Yamaha Y-Zinger (PW50A) Handlebar - Cable Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HANDLEBAR

3PT-26111-00-00

1
Out of stock

2

NUT, U

95617-08100-00

1
Out of stock

3

WASHER

2E9-26129-00-00

—
Out of stock

4

GRIP LH

36E-26241-00-00

1
Out of stock

5

TUBE, THROTTLE GUIDE

4X4-26243-00-00

1
Out of stock

6

GRIP (R.H)

4X4-26242-00-00

1
Out of stock

7

CONNECTER, CABLE

4U1-26261-00-00

1
Out of stock

8

CABLE,THROTTLE 1

4X4-26311-11-00

1
Out of stock

9

CABLE, THROTTLE 2

4X4-26312-10-00

1
Out of stock

10

CABLE, PUMP

4X4-26321-10-00

1
Out of stock

11

CABLE, STARTER 1

4X4-26331-01-00

1
Out of stock

12

CABLE, BRAKE

4X4-26341-10-00

—
Out of stock

13

SPRING, COMPRESSION (2T4)

90501-10513-00

—
Out of stock

14

NUT (25K)

90179-06411-00

1
Out of stock

15

PIN 1562723700

90249-12008-00

1
Out of stock

16

CABLE, BRAKE

4X4-26351-10-00

—
Out of stock

17

SPRING, COMPRESSION (3L5)

90501-10074-00

—
Out of stock

18

NUT (25K)

90179-06411-00

1
Out of stock

19

PIN 1562723700

90249-12008-00

1
Out of stock

20

PROTECTOR, HDLBR

36R-26124-00-00

1
Out of stock

21

BAND, SWITCH CORD

437-83936-11-00

—
Out of stock
