1990 Yamaha Y-Zinger (PW50A) Front Fork Diagram

← All diagrams

Find the part on the Front Fork diagram for your 1990 Yamaha Y-Zinger (PW50A), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

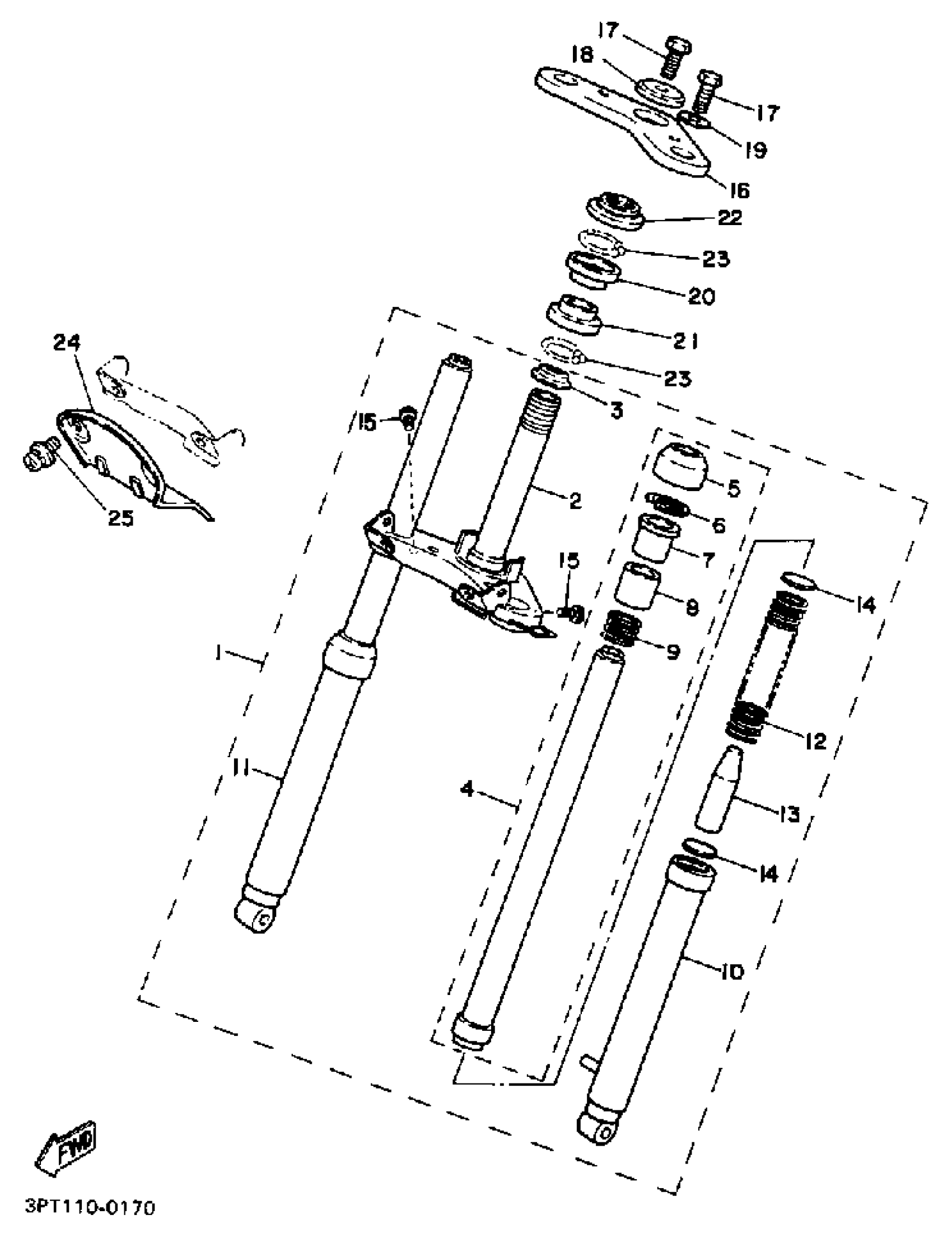

1990 Yamaha Y-Zinger (PW50A) Front Fork Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FRONT FORK ASSY

3PT-23100-11-E1

1
Out of stock

2

UNDER BRACKET COMP.

3PT-23340-10-00

—
Out of stock

3

RACE, BALL 4

3YJ-23414-00-00

1

$5.46

In stock

4

INNER TUBE COMP.1

3PT-23110-00-00

1
Out of stock

5

SEAL, DUST

2E9-23144-01-00

1
Out of stock

6

CIRCLIP (4V1)

93420-30049-00

1
Out of stock

7

.. METAL, SLIDE 1

2E9-23125-02-00

1
Out of stock

8

.. COLLAR

3L5-23113-00-00

1
Out of stock

9

SPRING, REBOUND

36R-23151-00-00

1
Out of stock

10

. OUTER TUBE LH (LH)

4X4-23106-00-E1

1
Out of stock

11

. OUTER TUBE RH (RH)

4X4-23107-00-E1

1
Out of stock

12

SPRING, FRONT FORK

4X4-23141-00-00

—
Out of stock

13

RUBBER

3L6-23195-01-00

1
Out of stock

14

SEAT, SPRING UNDER

2E9-23143-00-00

—

$8.97

In stock

15

BOLT,SOCKET

91317-06016-00

1

$1.16

In stock

16

CROWN, HANDLE

4X4-23435-00-00

—

$39.85

In stock

17

BOLT 1222345100

90105-10006-00

—

$9.17

In stock

18

WASHER (1YJ)

90209-10160-00

—

$5.68

In stock

19

WASHER PLATE (3L6)

90201-10742-00

—

$6.80

In stock

20

RACE, BALL 2

2SA-23412-00-00

—

$26.00

In stock

21

RACE, BALL 3

2SA-23413-00-00

—

$26.08

In stock

22

RACE, BALL 1

3PT-23411-00-00

—

$35.35

In stock

23

BALL

93505-32002-00

—

$2.22

In stock

24

PLATE 1

4X4-21543-00-00

—

$32.39

In stock

25

SCREW, W/WASHER (4L0)

90159-06060-00

—

$6.17

In stock
