1990 Yamaha Y-Zinger (PW50A) Front Wheel Diagram

← All diagrams

Find the part on the Front Wheel diagram for your 1990 Yamaha Y-Zinger (PW50A), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

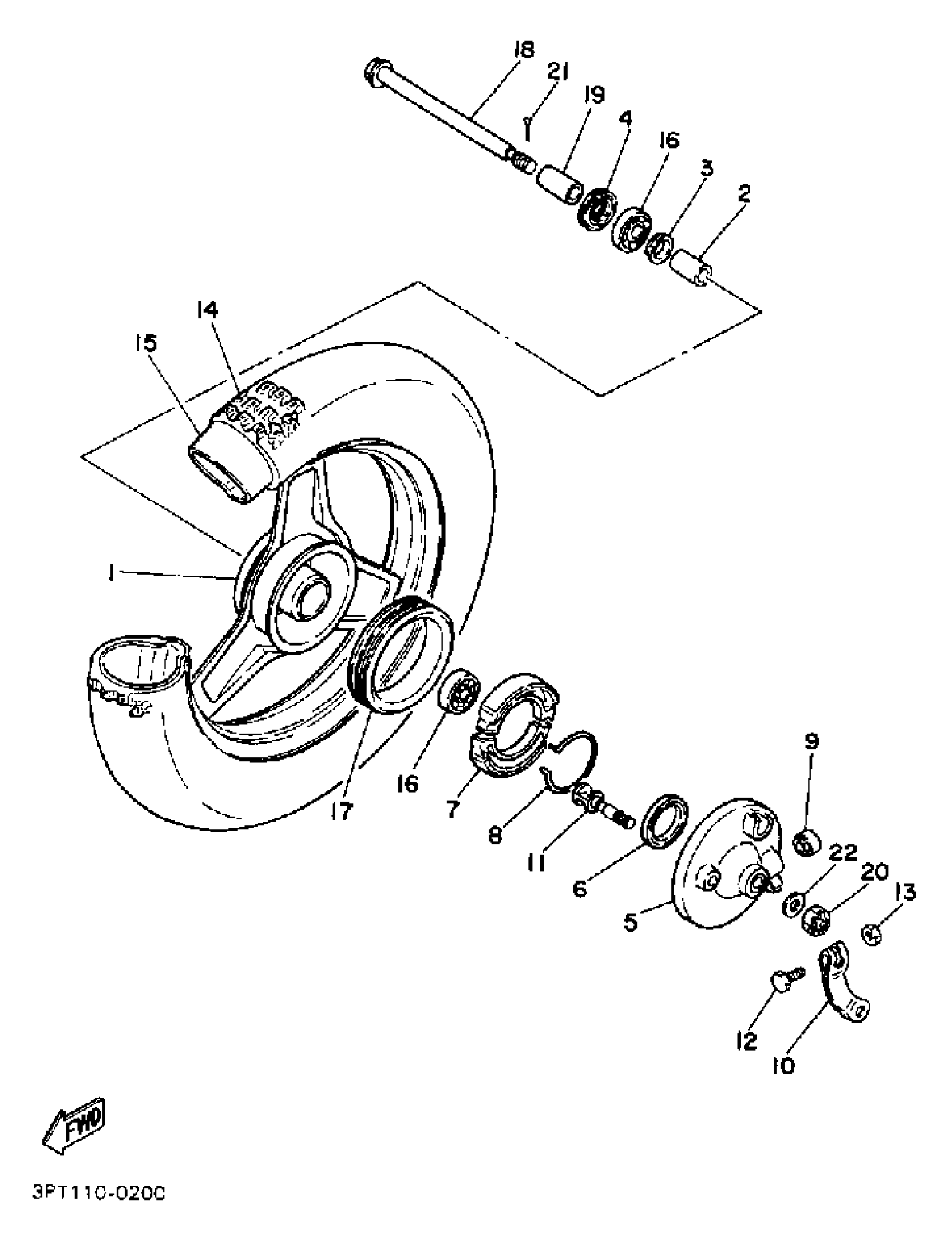

1990 Yamaha Y-Zinger (PW50A) Front Wheel Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

WHEEL, FRONT

5M0-25180-00-FH

1
Out of stock

2

SPACER

90560-10173-00

1
Out of stock

3

FLANGE, SPACER 2

2E9-25116-00-00

1
Out of stock

4

OIL SEAL (2E9)

93106-17015-00

1
Out of stock

5

PLATE, BRAKE SHOE

2T4-25121-00-98

—
Out of stock

6

OIL SEAL(2JA)

93109-34057-00

1
Out of stock

7

BRAKESHOE SET-2PCS

2E9-W2535-00-00

1
Out of stock

8

SPRING, SHOE RETURN

2E9-25133-00-00

1
Out of stock

9

PLUG, TAPER (4X4)

90336-15033-00

1
Out of stock

10

LEVER, CAMSHAFT 1

2T4-25155-00-00

—
Out of stock

11

CAMSHAFT

25K-25151-00-00

1
Out of stock

12

BOLT(3JK)

97027-05020-00

1
Out of stock

13

NUT, HEXAGON (663)

95380-05600-00

1
Out of stock

14

TIRE (INOUE 2.50-10)

94125-10650-00

1
Out of stock

15

TUBE (2.50-10)(3LL)

94225-10270-00

1
Out of stock

16

BEARING (3R0)

93306-20009-00

—
Out of stock

16

BEARING (3R0)

93306-20009-00

—
Out of stock

17

RING 1

2T4-25185-00-00

—
Out of stock

18

AXLE,WHEEL

99999-03089-00

1
Out of stock

19

COLLAR (2E9)

90387-10620-00

—
Out of stock

20

NUT 3532518200

90171-10004-00

—
Out of stock

21

PIN, COTTER

91490-20025-00

—
Out of stock

22

958-69527-00 WASHER, PLAIN

92990-10200-00

—
Out of stock
