Description

Price

1

Nut, Lock

0450265

$4.79

2

Sprocket, Drive

0452143

$40.46

3

Circlip, Internal

0450162

$5.59

4

Bearing, Ball

0450261

Unavailable

5

Cover, Transmission

0452140

$187.99

6

PIN, DOWEL

0450142

$3.99

6

PIN, DOWEL

0450142

$3.99

7

SEAL, OIL

0450259

$6.39

8

Gear, Final

0452142

$54.99

9

Shaft, Final

0452141

Unavailable

10

BEARING, BALL

0450254

$23.99

11

Shaft, Counter

0452144

Unavailable

12

GEAR, COUNTER

0452146

$75.99

13

BEARING

0452156

$15.99

14

Shaft, Main Transmission

0452155

$107.99

15

ASM., REVERSE GEAR

0453312

$115.99

16

Washer, Flat

0452152

$3.99

17

Circlip, External

0450060

$3.99

18

RATCHET, SHIFT

0452151

$83.99

19

Asm., Spur Gear

0453220

$91.99

20

Washer, Flat

0452148

$3.99

21

Collar, Shaft

0452147

Unavailable

22

Asm., Gear Shift Drum

0452159

$159.99

23

FORK, SHIFT

0452157

$59.99

24

ROLLER, DRUM SENSOR

0452163

$7.19

25

SHAFT, GEAR SHIFT

0452158

$8.79

26

SPRING, DRUM SENSOR

0452162

$3.99

27

Spindle, Shift

0452160

$63.99

28

E-CLIP

0452161

$3.99

29

WASHER

0450264

$3.99

30

Asm., Sight Glass

0450233

$2.38

31

Asm., Gear/Driveshaft [Incl. 8,9]

0454103

Unavailable

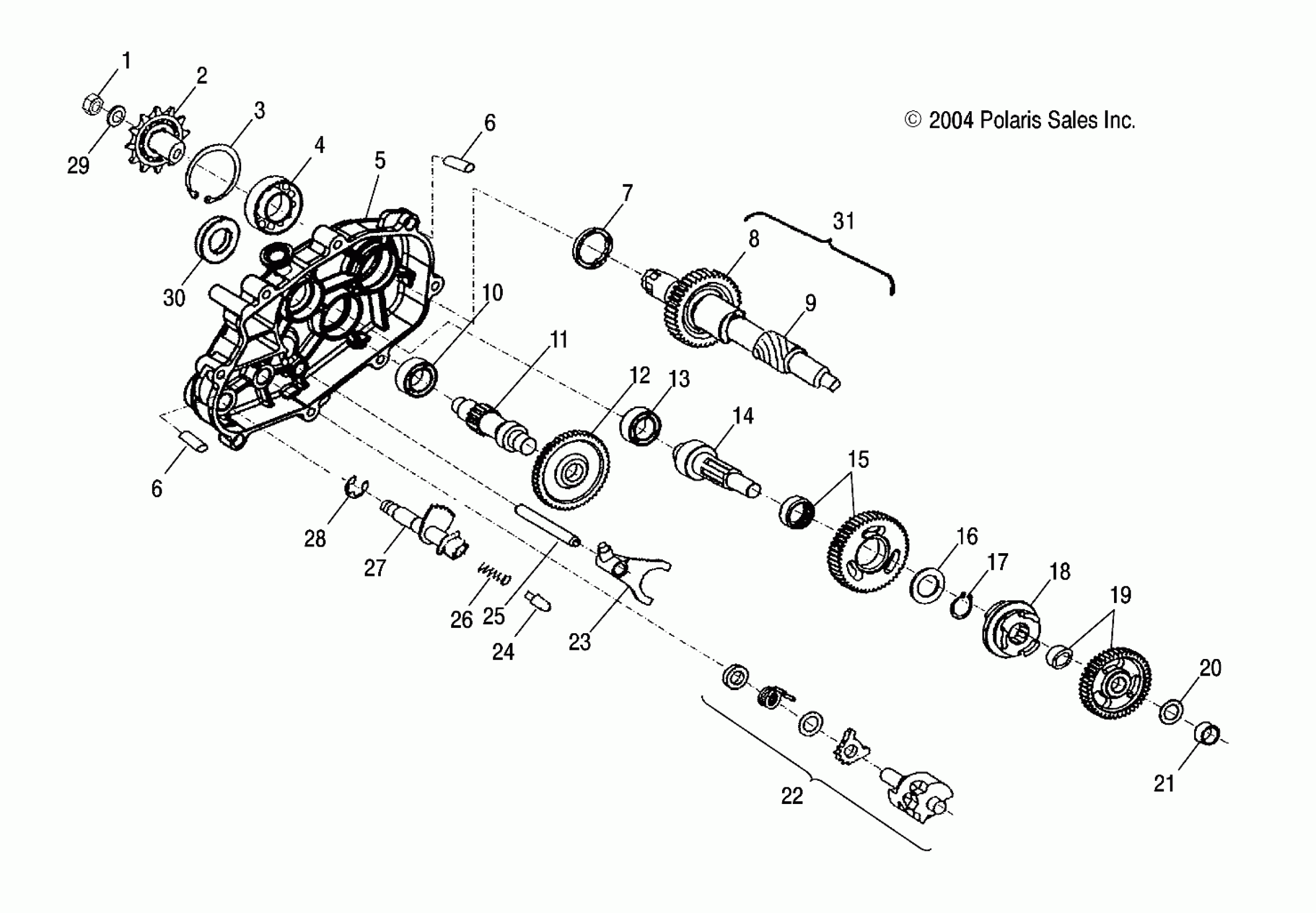

Polaris PREDATOR 90 - A05KA09CA DRIVE SHAFT - A05KA09CA/CB (4995259525A13) Diagram

Nut, Lock

Sprocket, Drive

Circlip, Internal

Bearing, Ball

Cover, Transmission

PIN, DOWEL

PIN, DOWEL

SEAL, OIL

Gear, Final

Shaft, Final

BEARING, BALL

Shaft, Counter

GEAR, COUNTER

BEARING

Shaft, Main Transmission

ASM., REVERSE GEAR

Washer, Flat

Circlip, External

RATCHET, SHIFT

Asm., Spur Gear

Washer, Flat

Collar, Shaft

Asm., Gear Shift Drum

FORK, SHIFT

ROLLER, DRUM SENSOR

SHAFT, GEAR SHIFT

SPRING, DRUM SENSOR

Spindle, Shift

E-CLIP

WASHER

Asm., Sight Glass

Asm., Gear/Driveshaft [Incl. 8,9]
