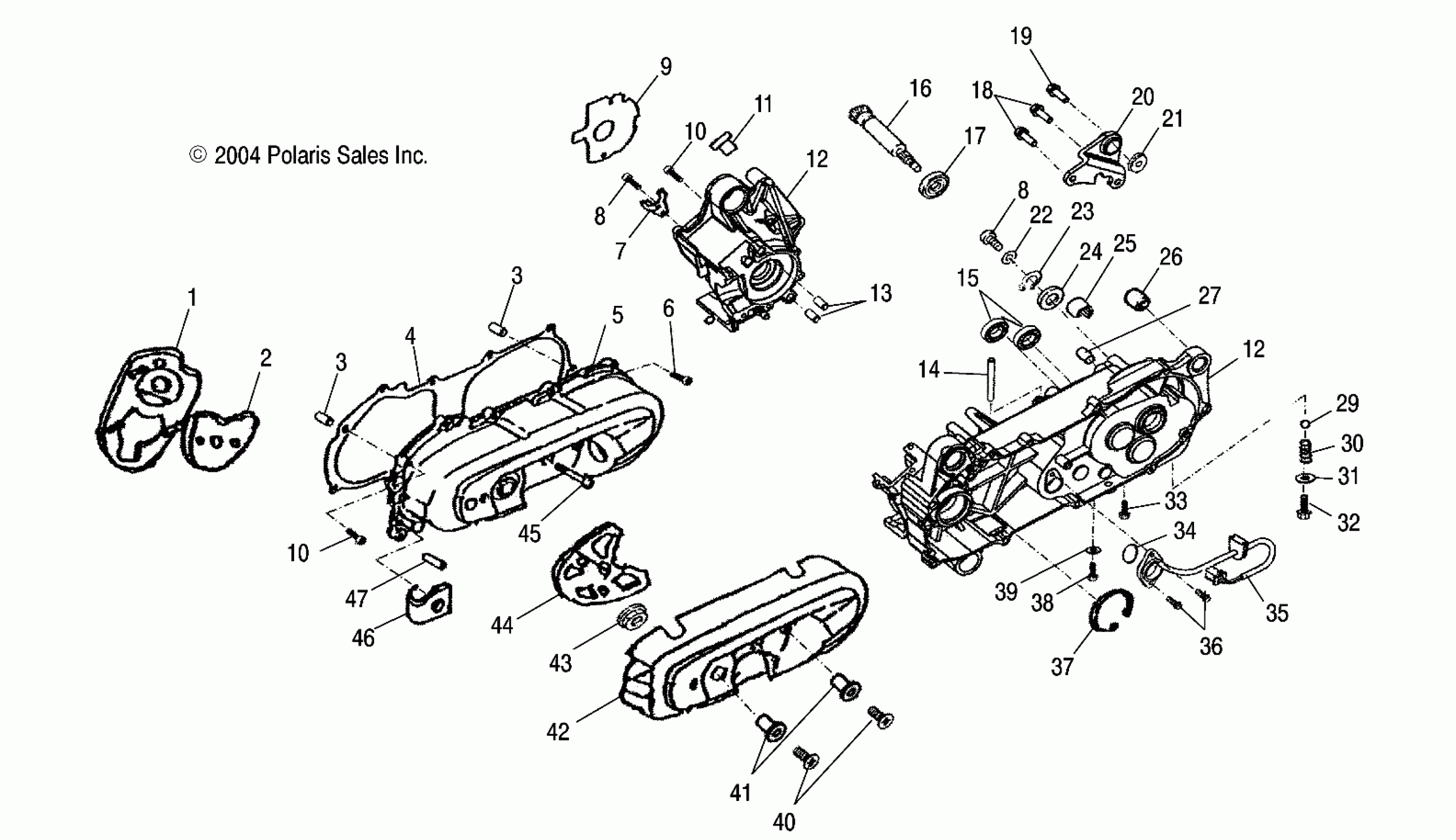

Polaris PREDATOR 90 - A05KA09CA CRANKCASE - A05KA09CA/CB (4995259525A10) Diagram

#

Description
Price

1

Protector A

0450166

Unavailable

2

Filter

0450164

$9.49

3

PIN, DOWEL

0450142

$3.97

3

PIN, DOWEL

0450142

$3.97

4

Gasket, Crankcase

0450141

$32.37

5

Cover, Clutch

0451671

Unavailable

6

Bolt, Hex

0450148

$3.97

7

Bracket, Oil Seal

0450157

Unavailable

8

Bolt, Hex

0450158

$5.65

8

Bolt, Hex

0450158

$5.65

9

Gasket, Generator

0450159

$8.08

10

Bolt

0450138

Unavailable

10

Bolt

0450138

Unavailable

11

Plug, Rubber

0450170

$5.65

12

Asm., Crankcase

0454187

$247.99

12

Asm., Crankcase

0454187

$247.99

13

Pin, Dowel

0450137

$2.22

14

Breather, Crankcase, Upper

0452127

$7.27

15

Bearing, Needle

0450254

$23.81

16

Shaft, Primary Drive

0452130

$63.49

17

BEARING

0450199

$31.75

18

BOLT, HEX

0450298

$2.38

19

Bolt, Hex

0450684

$4.76

20

Mount, Engine, Rear

0452131

$11.90

21

Bushing, Rubber

0450132

Unavailable

22

WASHER

0450041

$4.76

23

Circlip, External

0450198

$4.76

24

Seal, Oil

0450200

$12.13

25

Bearing, Needle

0452139

$23.79

26

BUSHING, RUBBER

0451139

$7.14

27

Breather, Crankcase, Lower

0452125

$13.99

29

BALL, STEEL

0452134

$5.65

30

SPRING, DETENT

0452135

$1.59

31

WASHER, FLAT

0452136

$4.35

32

Bolt, Hex

0452137

$7.14

33

Bolt, Hex

0452126

$4.76

34

O-RING

0452129

$1.60

35

SENSOR, GEAR POSITION

0452128

$32.37

36

Bolt, Hex, Flange

0452138

$3.17

37

Circlip, Internal

0450162

$5.56

38

Bolt, Hex

0452132

$5.99

39

WASHER, FLAT

0452133

$4.74

40

Bolt

0450167

$4.76

41

Grommet

0450168

Unavailable

42

Guard, Clutch Cover

0451672

Unavailable

43

Nut, Hex, Flange

0450150

$1.19

44

Protector B

0450152

Unavailable

45

Bolt, Hex

0450151

Unavailable

46

Bracket, Carburator Tube

0450160

$4.84

47

Shaft, Pin

0450147

Unavailable
