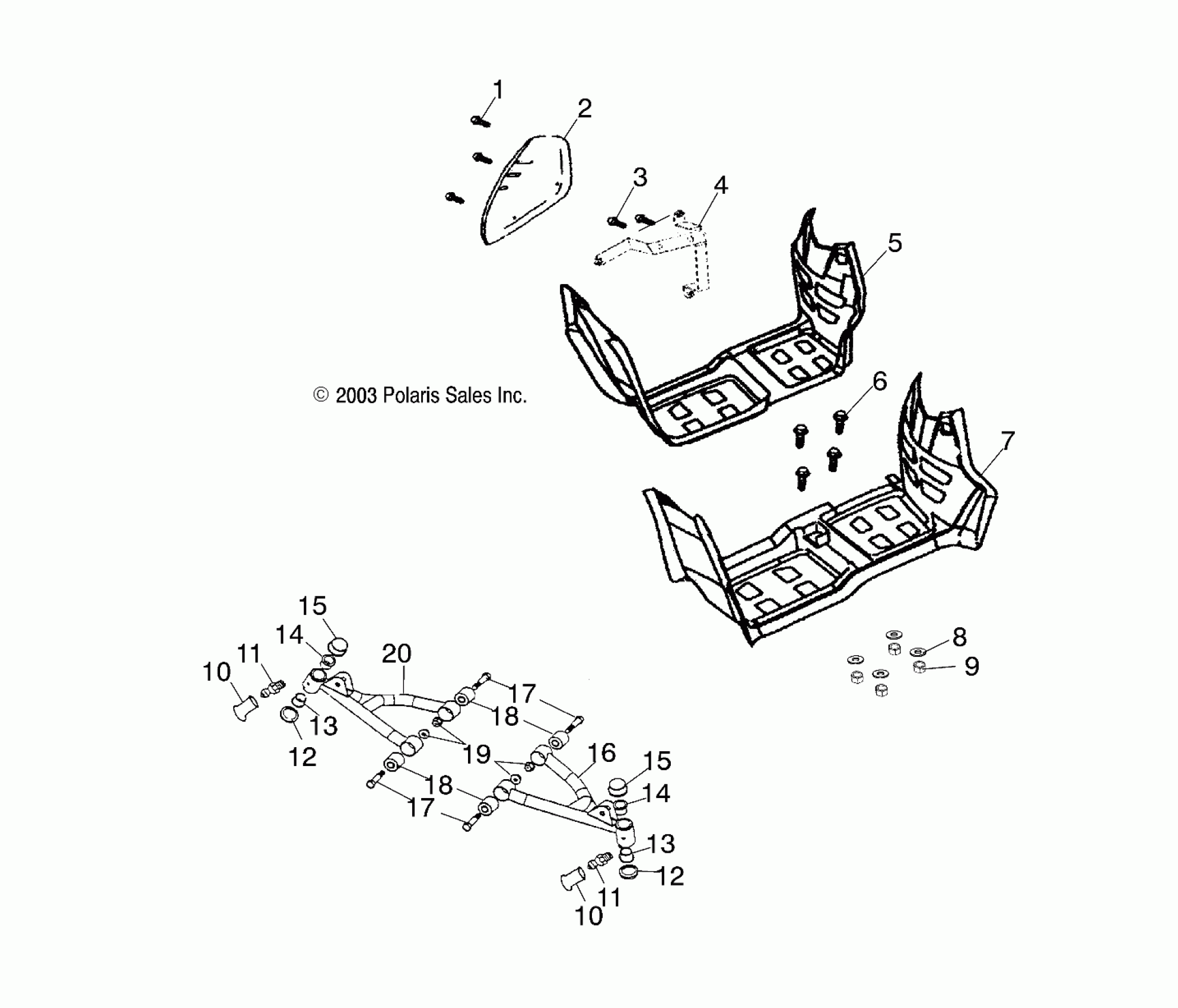

Polaris PREDATOR 90 - A04KA09CA SWING ARM/FOOTREST - A04KA09CA/CB (4991329132B03) Diagram

#

Description
Price

1

Bolt, Hex

0450701

$1.49

2

Shield, Heat

0450611

Unavailable

3

BOLT, HEX

0450298

$2.39

4

Bracket, Heat Shield

0451119

Unavailable

5

Footwell, RH

0451117

Unavailable

6

Bolt, Hex, Washer Face

0450340

Unavailable

7

Footwell, LH

0451118

$123.54

8

Washer, Plain

0450879

Unavailable

9

NUT, LOCK

0450808

$2.39

10

Cap, Rubber

0450321

$3.19

10

Cap, Rubber

0450321

$3.19

11

Valve, Grease

0450320

$5.59

11

Valve, Grease

0450320

$5.59

12

RUBBER, DUSTPROOF

0450317

$6.39

12

RUBBER, DUSTPROOF

0450317

$6.39

13

Seat, Grease Contain

0450314

$3.99

13

Seat, Grease Contain

0450314

$3.99

14

Seat, Grease Contain

0450313

$3.99

14

Seat, Grease Contain

0450313

$3.99

15

COVER, WATERPROOF

0450316

Unavailable

15

COVER, WATERPROOF

0450316

Unavailable

16

Arm, Suspension, Red, LH [CA]

0451004

Unavailable

16

Arm, Suspension, Silver, LH [CB]

0451155

Unavailable

17

Bolt, Hex, Washer Face

0450820

$5.59

17

Bolt, Hex, Washer Face

0450820

$5.59

18

Bushing

0450288

$8.79

18

Bushing

0450288

$8.79

19

NUT, FLANGE

0450249

$3.99

20

Arm, Suspension, Red, RH [CA]

0451003

Unavailable

20

Arm, Suspension, Silver, RH [CB]

0451156

Unavailable
