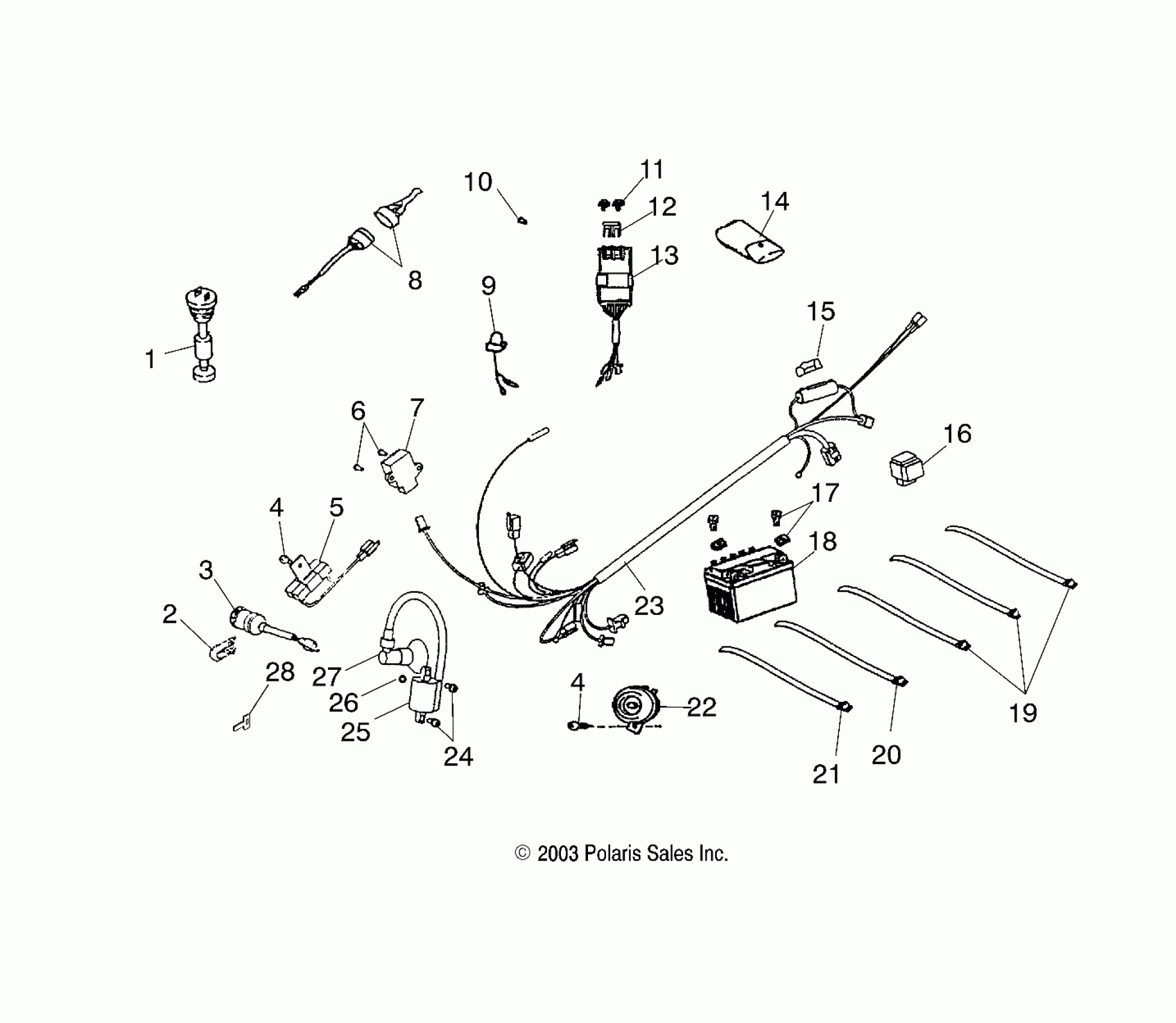

Polaris PREDATOR 90 - A04KA09CA ELECTRICAL PARTS - A04KA09CA/CB (4991329132C03) Diagram

#

Description
Price

1

Asm., Oil Level Gauge

0450558

Unavailable

2

Clip, Main Switch

0450886

$5.56

3

Switch, Main, Ignition w/Clip

0450549

Unavailable

4

Bolt, Washer Face, Hex

0450701

$1.19

4

Bolt, Washer Face, Hex

0450701

$1.19

5

Asm., Resistor

0453315

$64.75

6

Bolt, Pan, Phillips

0450057

$0.63

7

Rectifier/Regulator

0450553

$124.99

8

SWITCH, SAFETY

0451693

$61.74

9

Lamp, Warning, Low Oil

0451710

$32.37

10

Bolt, Hex

0450309

$3.97

11

Screw, Fixing

0451020

Unavailable

12

JUMPER

0451019

$7.27

13

Asm., CDI Unit

0451018

$309.83

14

Bag, Tool

0450563

Unavailable

15

FUSE

0450842

$9.49

16

Asm., Starter Relay

0450555

$124.99

17

Bolt and Nut, Battery

0450888

Unavailable

18

BATTERY

4011181

$76.17

19

STRAP

0450559

$2.41

20

STRAP

0450721

$3.22

21

Strap

0450742

Unavailable

22

HORN

0451695

$22.79

23

Asm., Main Wire Harness

0451694

Unavailable

24

Bolt, Hex

0450556

Unavailable

25

Asm., Ignition Coil [Incl. 27]

0450753

$68.79

26

Washer, Star

0451018

$309.83

27

Cap, Spark Plug

0451162

Unavailable

28

Key, Blank, RH Groove

0453013

$32.37

28

Key, Blank, LH Groove

0453371

Unavailable
