1983 Kawasaki Prairie Trunk Diagram

← All diagrams

Find the part on the Trunk diagram for your 1983 Kawasaki Prairie, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

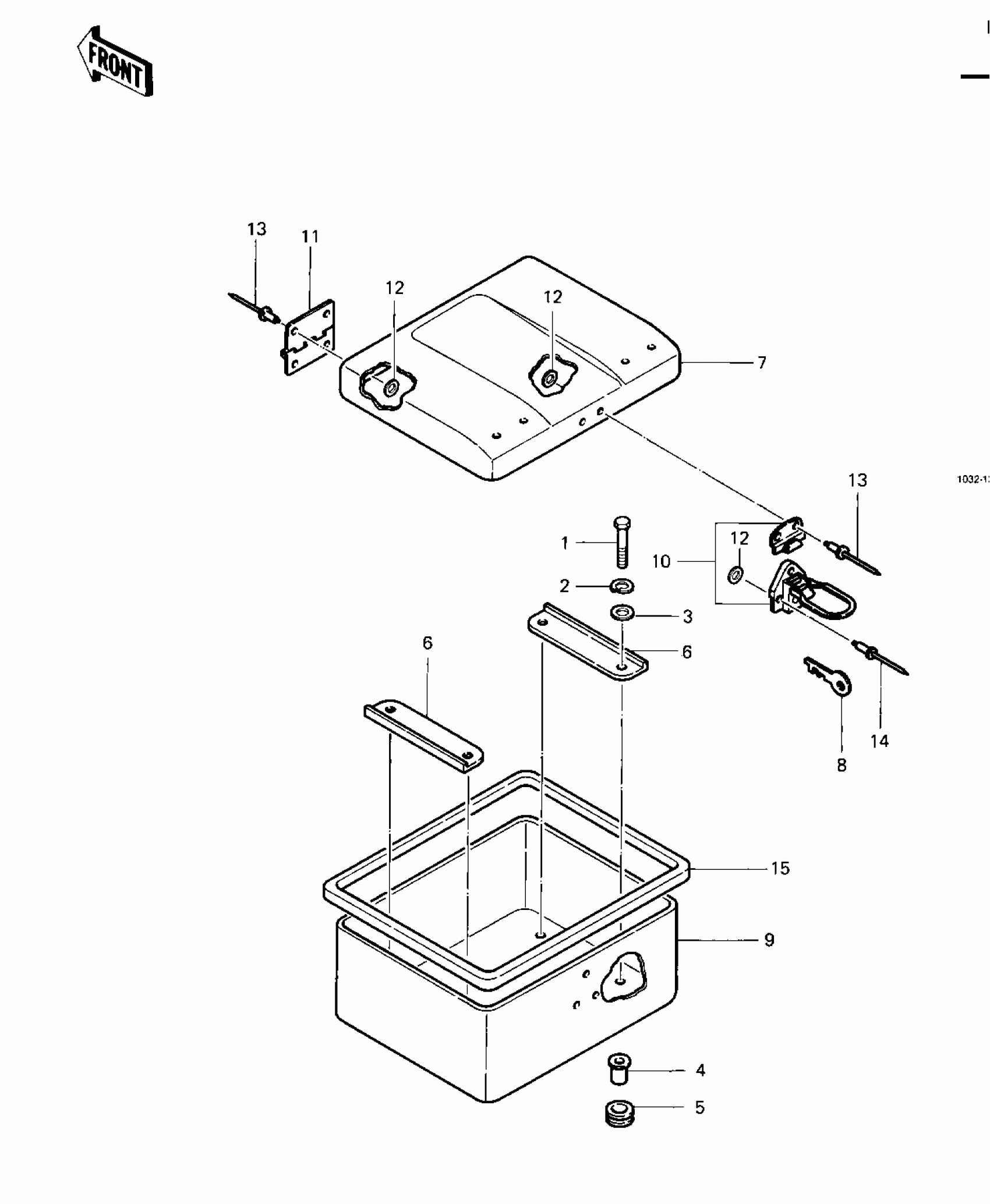

1983 Kawasaki Prairie Trunk Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

BOLT,8X40

115G0840

1
Out of stock

2

WASHER SPRING 8MM

461F0800

1
Out of stock

3

WASHER PLAIN 8MM

410B0800

1
Out of stock

4

1

$8.16

In stock

5

1

$3.92

In stock

6

PLATE

13169-4017

1
Out of stock

7

COVER,TRUNK,BLACK

14025-4027-6D

1
Out of stock

8

KEY

27008-4001

1

$7.56

In stock

9

CASE, TRUNK

32099-4006

1

$17.37

In stock

10

LATCH

49031-4002

1

$13.66

In stock

11

HINGE

53009-4001

1

$7.90

In stock

12

WASHER

92022-4017

1
Out of stock

13

RIVET,POP

92039-4006

1

$1.22

In stock

14

RIVET

92039-4007

1

$0.65

In stock

15

SEAL-TRUNK

92093-4003

1
Out of stock
