1983 Kawasaki Prairie Seat Diagram

← All diagrams

Find the part on the Seat diagram for your 1983 Kawasaki Prairie, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

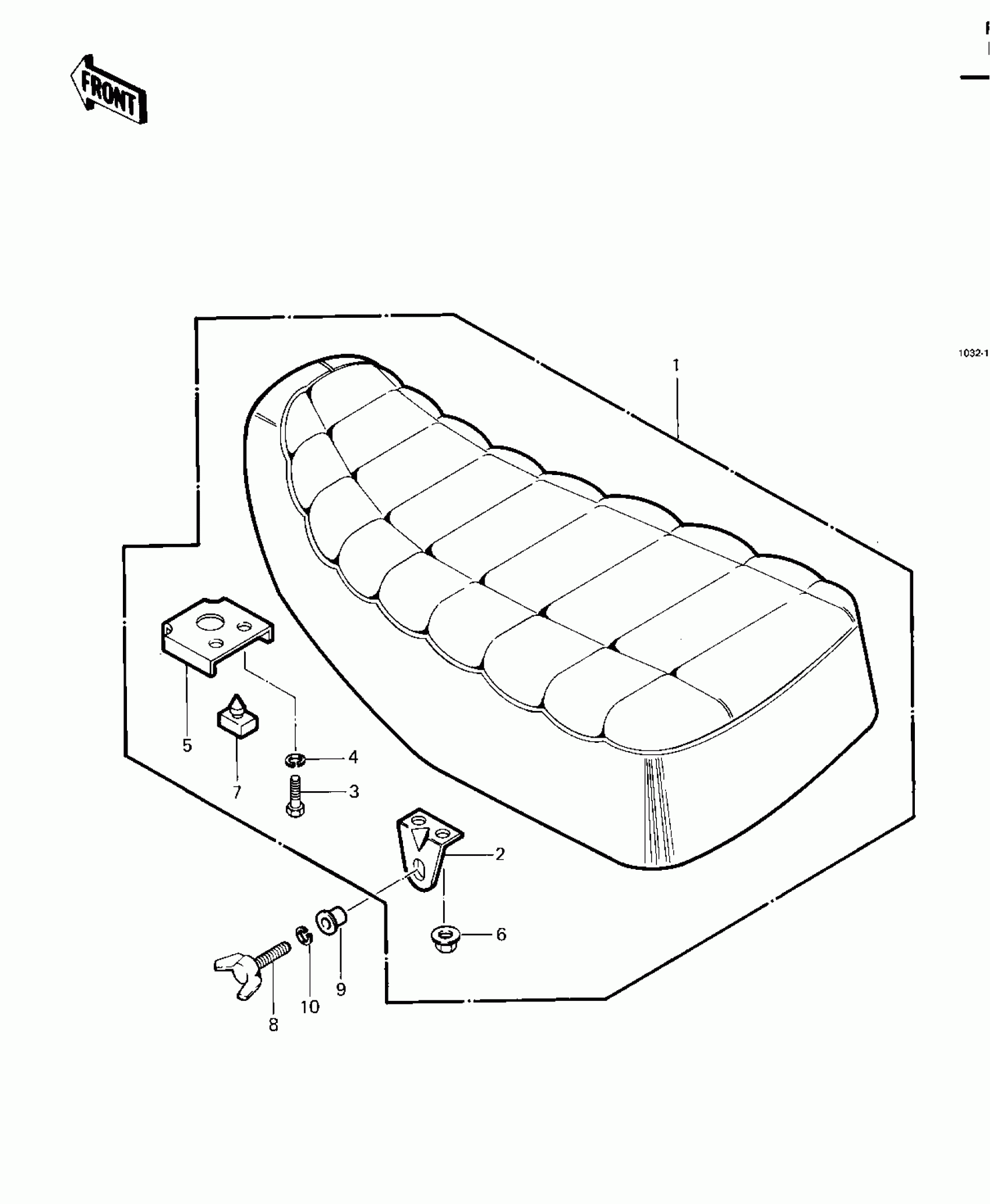

1983 Kawasaki Prairie Seat Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SEAT-ASSY,WHITE LOGO

53001-4009

1
Out of stock

2

BRACKET

11034-1617

1
Out of stock

3

BOLT-UPSET,6X16

112G0616

1
Out of stock

4

WASHER SPRING 6MM

461F0600

1
Out of stock

5

HOOK,SEAT

27012-4008

1

$8.05

In stock

6

NUT,FLANGED,6MM

92015-1078

1
Out of stock

7

DAMPER

92075-099

1

$4.37

In stock

8

BOLT,CLNR ELEMENT

92003-199

1
Out of stock

9

COLLAR

92027-4020

1

$3.69

In stock

10

WASHER SPRING 6MM

461F0600

1
Out of stock
