1983 Kawasaki Prairie Carriers Diagram

← All diagrams

Find the part on the Carriers diagram for your 1983 Kawasaki Prairie, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

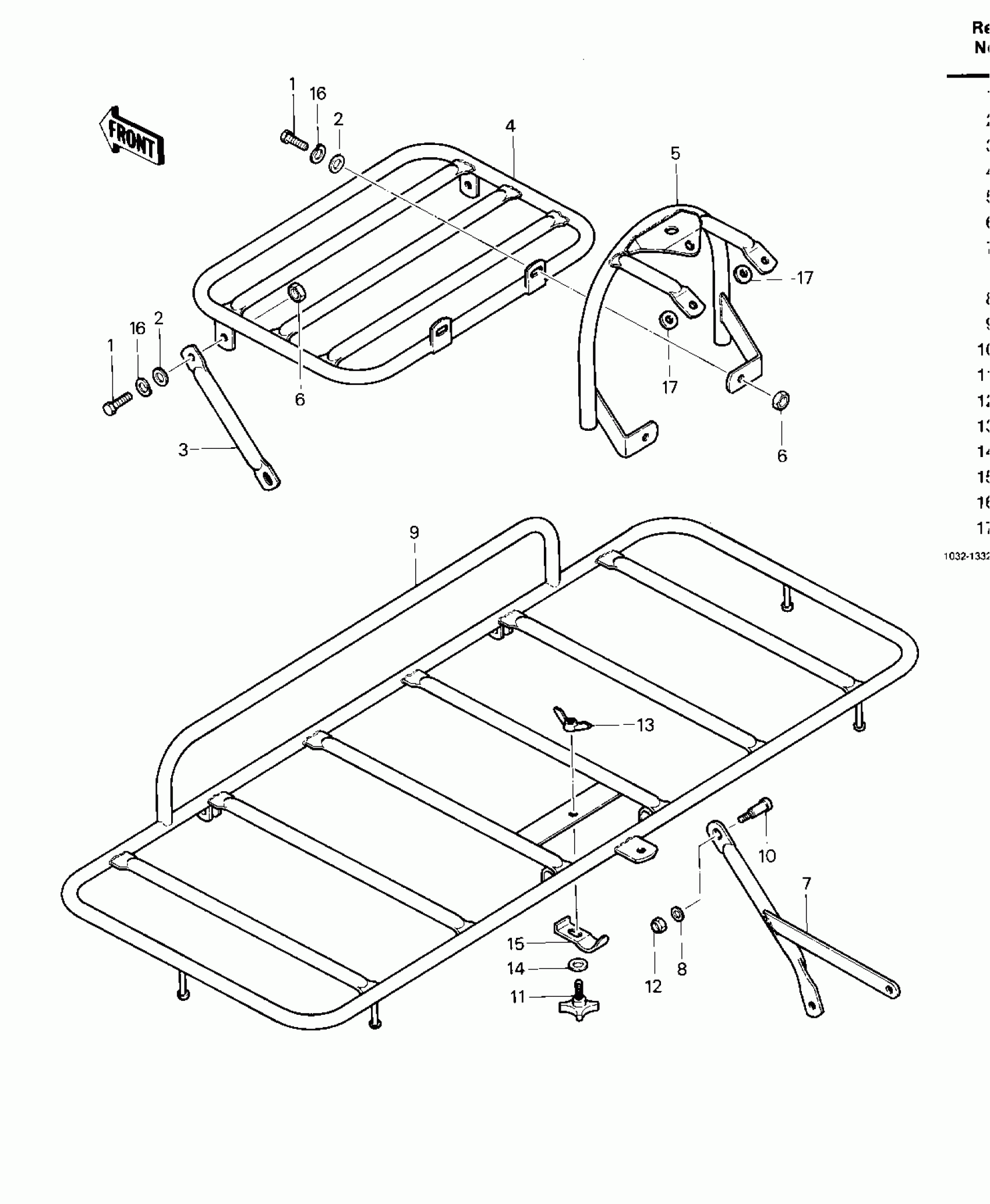

1983 Kawasaki Prairie Carriers Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

BOLT-SMALL-UPSET 8X25

115G0825

1
Out of stock

2

WASHER PLAIN 8MM

410B0800

1
Out of stock

3

ARM

21083-4008-8G

1

$8.24

In stock

4

FRONT CARRIER,BLACK

53029-4005-8G

1

$111.61

In stock

5

GUARD,HEAD LAMP,BLACK

55020-4022-8G

1

$54.24

In stock

6

NUT,LOCK,8MM

92015-1124

1
Out of stock

7

ARM,LEFT

21083-4009-8G

1

$10.32

In stock

7

ARM,RIGHT

21083-4010-8G

1

$10.08

In stock

8

WASHER PLAIN 8MM

411B0800

1
Out of stock

9

REAR CARRIER,BLACK

53029-4006-8G

1

$152.32

In stock

10

BOLT

92001-4026

1

$6.42

In stock

11

BOLT,CARRIER

92001-4027

1

$4.59

In stock

12

NUT,LOCK,8MM

92015-1124

1
Out of stock

13

NUT-WING

92015-4021

1

$4.39

In stock

14

WASHER

92022-4032

1
Out of stock

15

CLAMP,BLACK

92037-4011-8G

1

$3.41

In stock

16

WASHER SPRING 8MM

461F0800

1
Out of stock

17

WASHER PLAIN 8MM

411B0800

1
Out of stock
