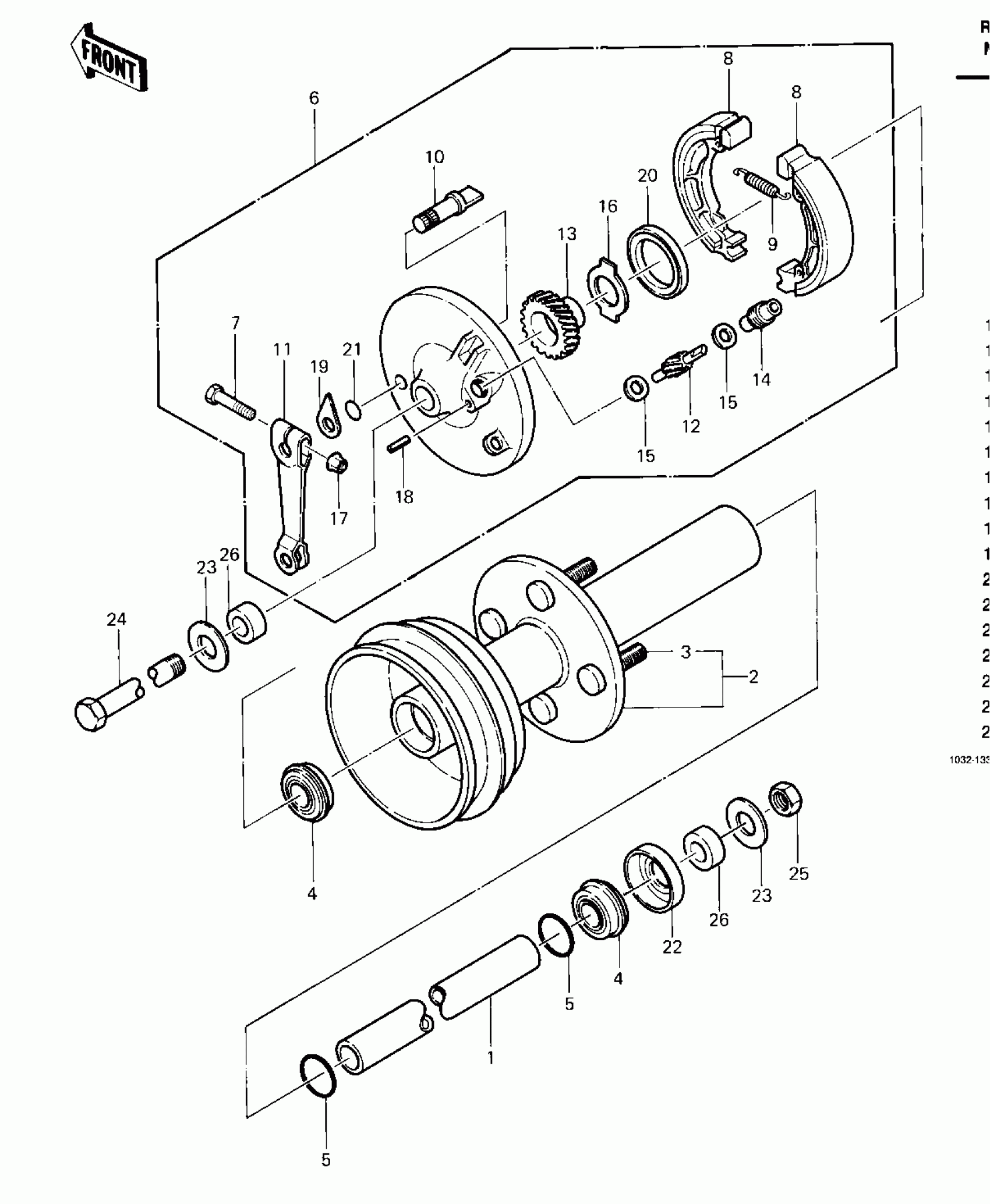

Find the part on the Front Hub/brake diagram for your 1983 Kawasaki Prairie, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1983 Kawasaki Prairie Front Hub/brake Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

PIPE,SPACER

32032-4109

1
Out of stock

2

DRUM ASSY FRONT

41038-4011

1
Out of stock

3

BOLT,LUG

92001-4006

1
Out of stock

4

BEARING BALL HUB-ASSY

92045-4005

1
Out of stock

5

"0" RING

92055-4001

1
Out of stock

6

PANEL-ASSY-BRAKE,FR

41035-1165

1
Out of stock

7

BOLT-UPSET

112G0630

1
Out of stock

8

SHOE-BRAKE

41048-1085

1
Out of stock

9

SPRING,BRAKE SHOE

92081-1766

1
Out of stock

10

CAM-BRAKE

41050-018

1
Out of stock

11

LEVER-BRAKE CAM

41053-005

1
Out of stock

12

PINION-SPEEDOMETER

41060-014

1
Out of stock

13

GEAR-METER SCREW

41060-4001

1
Out of stock

14

BUSHING,SPEEDOMETER CABLE

41062-005

1
Out of stock

15

WASHER,5.1X9X0.4

41063-001

1
Out of stock

16

RECEIVER-SPEEDOMETER

41064-4001

1
Out of stock

17

NUT,6MM

41072-007

1
Out of stock

18

PIN,SPRING

41082-001

1
Out of stock

19

INDICATOR,BRAKE SHOE

41085-013

1
Out of stock

20

SEAL-OIL,BRAKE PANEL

92050-002

1
Out of stock

21

RING-O,BRAKE CAM

92055-004

1
Out of stock

22

CAP-BEARING

14022-4003

1
Out of stock

23

WASHER PLAIN 16MM

410B1600

1
Out of stock

24

AXLE,FRONT

41068-4003

1
Out of stock

25

NUT,LOCK 14M/M

92015-1122

1
Out of stock

26

COLLAR

92027-4009

1
Out of stock
