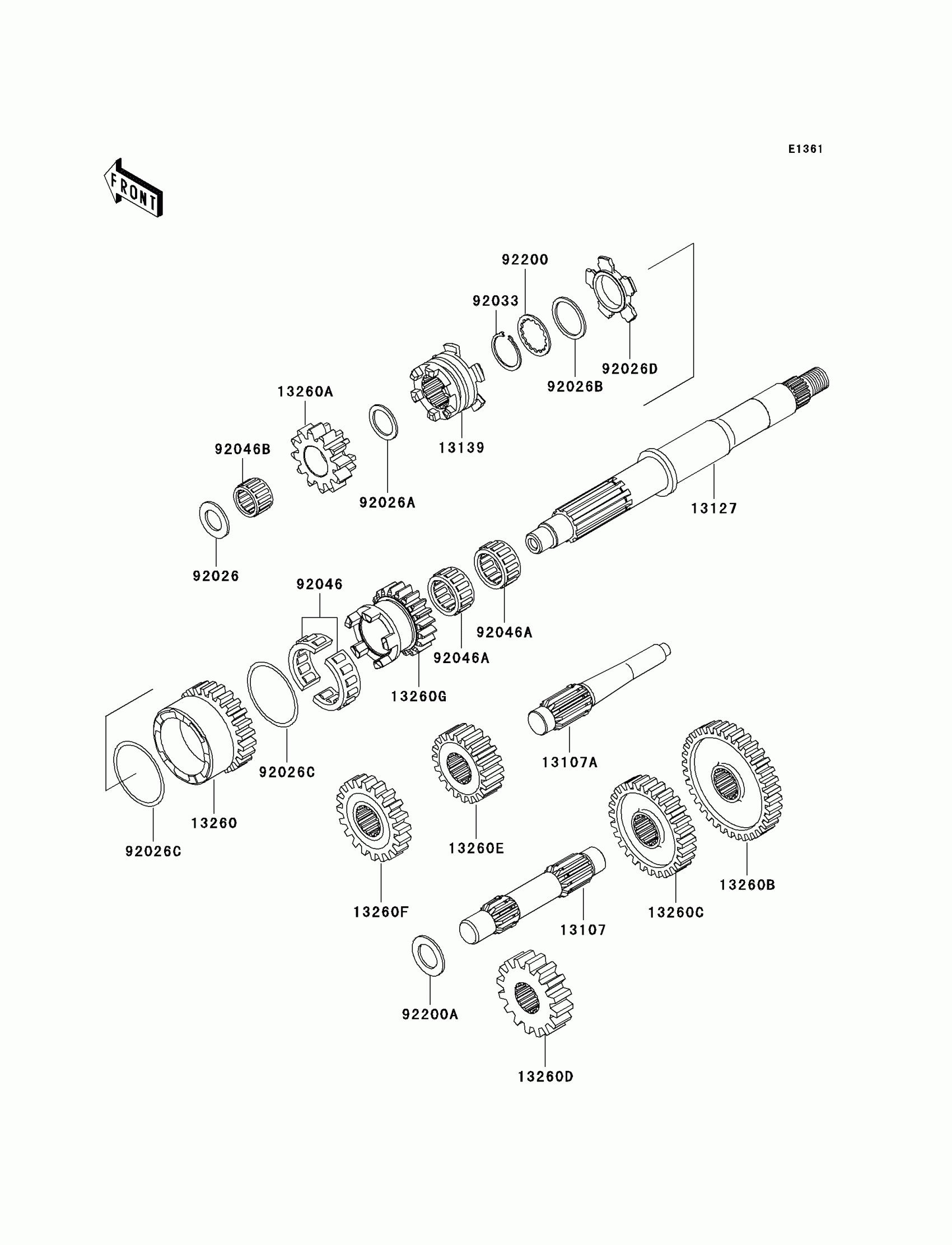

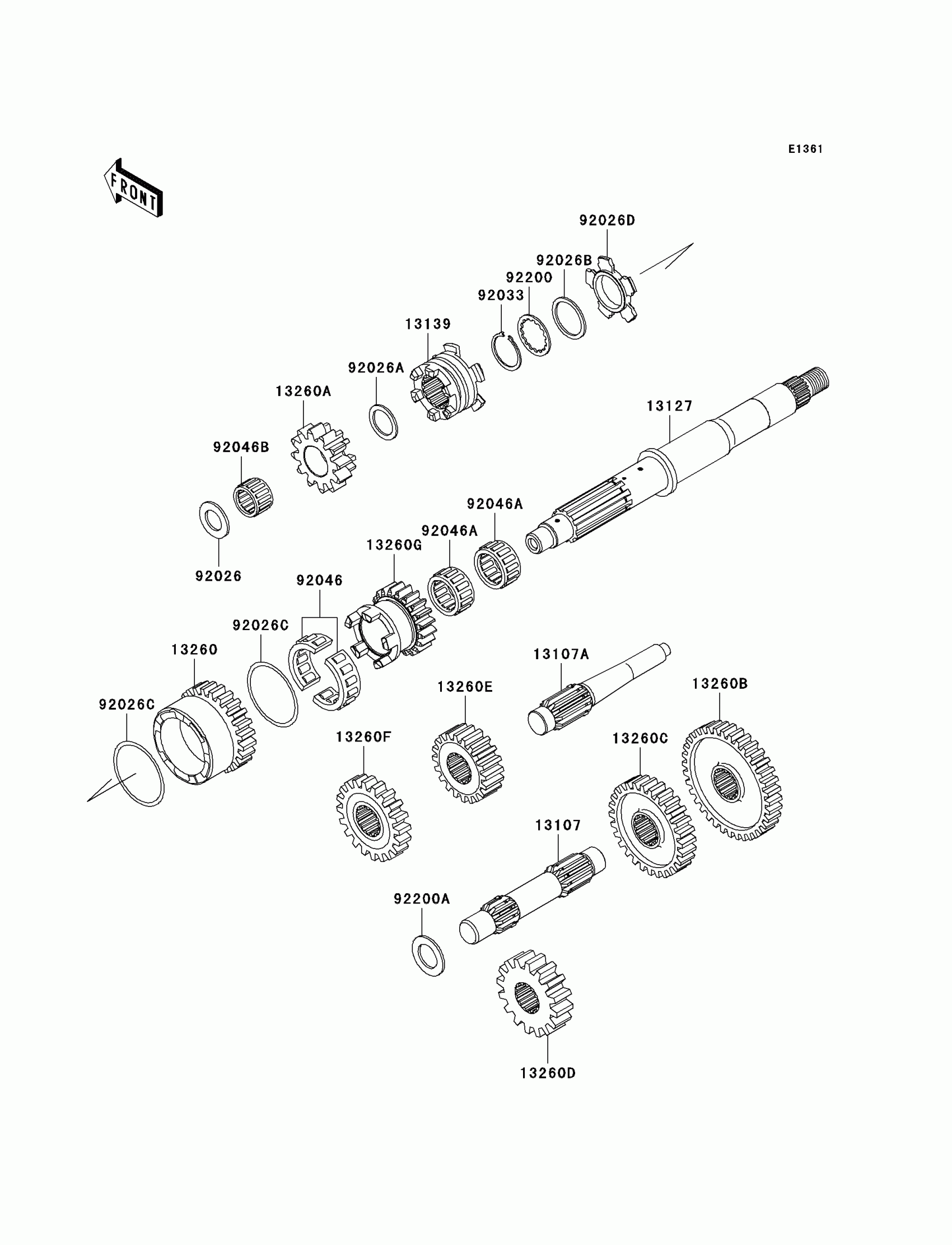

Find the part on the Transmission diagram for your 2002 Kawasaki Prairie 650 4X4, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2002 Kawasaki Prairie 650 4X4 Transmission Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

13107

SHAFT,COUNTER

13107-1436

1
Out of stock

13107A

SHAFT,REVERSE,IDLE

13107-1437

1
Out of stock

13127

SHAFT-TRANSMISSION INPUT

13127-1282

1
Out of stock

13139

SHIFTER

13139-1096

1
Out of stock

13260

GEAR,INPUT HIGH,26T

13260-1867

1

$144.40

In stock

13260A

GEAR,INPUT REVERSE,12T

13260-1868

1
Out of stock

13260B

GEAR,DRIVEN LOW,36T

13260-1869

1
Out of stock

13260C

GEAR,DRIVEN HIGH,30T

13260-1870

1
Out of stock

13260D

GEAR,OUTPUT DRIVE,18T

13260-1871

1
Out of stock

13260E

1

$118.13

In stock

13260F

1

$118.13

In stock

13260G

GEAR,INPUT LOW,20T

13260-1935

1
Out of stock

92026

SPACER,17.3X30X2.0

92026-1415

1
Out of stock

92026A

SPACER,21.2X29X1.6

92026-1568

1
Out of stock

92026B

SPACER,28.2X34.5X1.6

92026-1587

1
Out of stock

92026C

SPACER,48.2X54.3X1.0

92026-1599

1
Out of stock

92026D

SPACER,HI&LOW

92026-1600

1
Out of stock

92033

RING-SNAP,25.9X30.6X1.2

92033-1037

1
Out of stock

92046

BEARING-NEEDLE,HIGH GEAR

92046-1276

1
Out of stock

92046A

BEARING-NEEDLE,FWF-283317

92046-1278

1
Out of stock

92046B

BEARING-NEEDLE,REVERSE GEAR

92046-1279

1
Out of stock

92200

WASHER,28.5X34.0X1.5

92200-1240

1
Out of stock

92200A

WASHER,20.3X33X2.0

92200-1351

1
Out of stock
