2002 Kawasaki Prairie 650 4X4 Drive Converter Diagram

← All diagrams

Find the part on the Drive Converter diagram for your 2002 Kawasaki Prairie 650 4X4, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

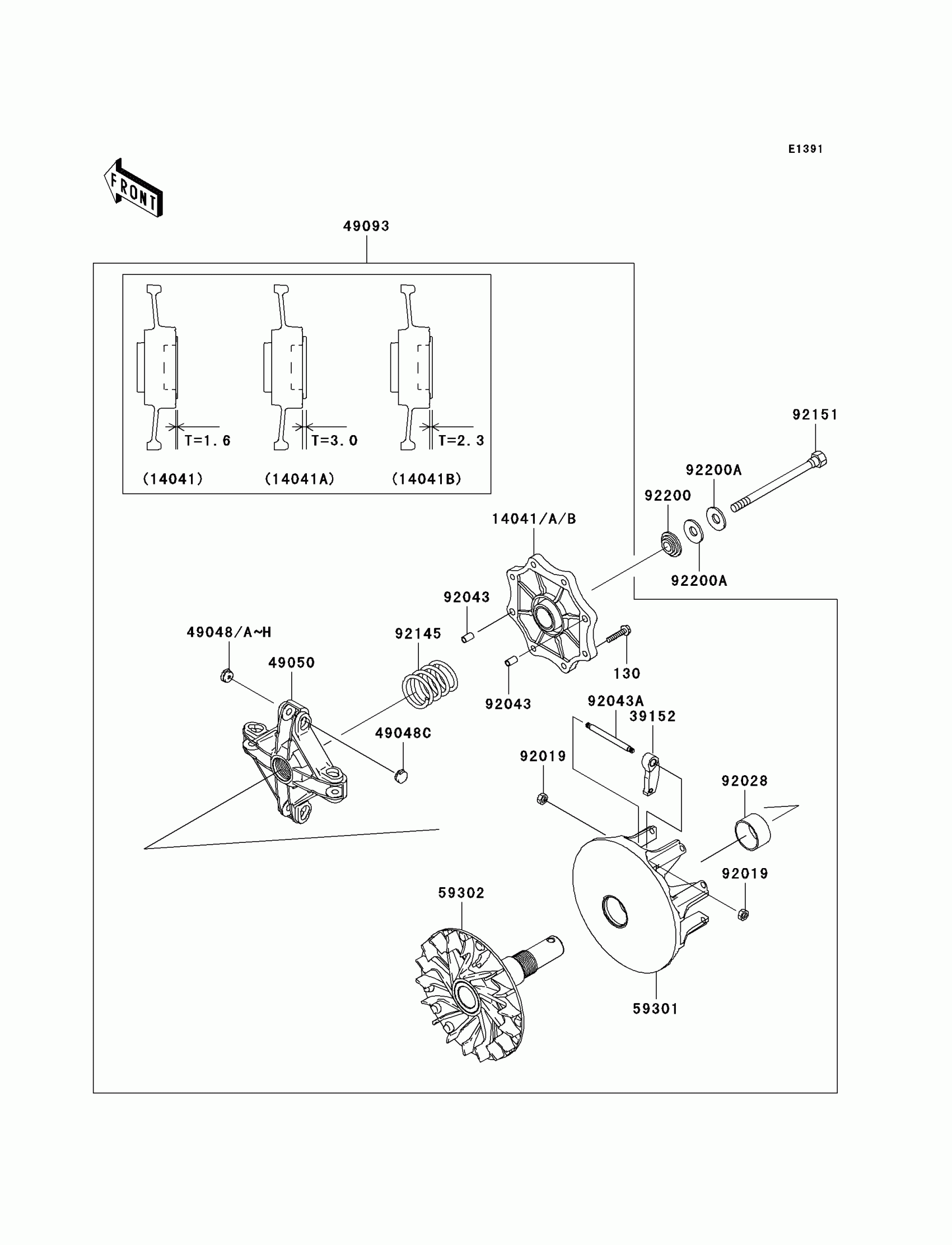

2002 Kawasaki Prairie 650 4X4 Drive Converter Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

130

BOLT-FLANGED,6X30

130T0630

1
Out of stock

14041

COVER-COMP,RED

14041-1148

—

$119.10

In stock

14041A

COVER-COMP,BLUE

14041-1149

—

$119.10

In stock

14041B

1

$119.10

In stock

39152

WEIGHT-RAMP

39152-1081

1

$57.88

In stock

49048

SHOE,T=7.2

49048-1078

—

$11.66

In stock

49048A

SHOE,T=7.3

49048-1079

—

$11.42

In stock

49048B

SHOE,T=7.4

49048-1080

—

$11.66

In stock

49048C

SHOE,T=7.5

49048-1081

1

$11.66

In stock

49048D

SHOE,T=7.6

49048-1082

—

$11.66

In stock

49048E

SHOE,T=7.7

49048-1083

—

$11.66

In stock

49048F

SHOE,T=7.8

49048-1084

—

$13.78

In stock

49048G

SHOE,T=7.9

49048-1085

—

$13.78

In stock

49048H

SHOE,T=8.0

49048-1086

—

$11.66

In stock

49050

SPIDER

49050-1078

1

$142.93

In stock

49093

1

$1,153.30

In stock

59301

SHEAVE-MOVABLE

59301-1062

1

$198.84

In stock

59302

SHEAVE-COMP

59302-1077

1

$344.81

In stock

92019

NUT,LOCK,6MM

92019-008

1

$3.36

In stock

92028

BUSHING

92028-1975

1

$10.14

In stock

92043

PIN,6.2X8X14

92043-1263

1

$0.49

In stock

92043A

PIN

92043-1573

1

$10.33

In stock

92145

SPRING

92145-1293

1

$17.14

In stock

92151

BOLT,12X165

92151-1393

1

$22.45

In stock

92200

WASHER

92200-1503

1
Out of stock

92200A

WASHER,SPRING

92200-1504

1
Out of stock
