2002 Kawasaki Prairie 650 4X4 Guard Diagram

← All diagrams

Find the part on the Guard diagram for your 2002 Kawasaki Prairie 650 4X4, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

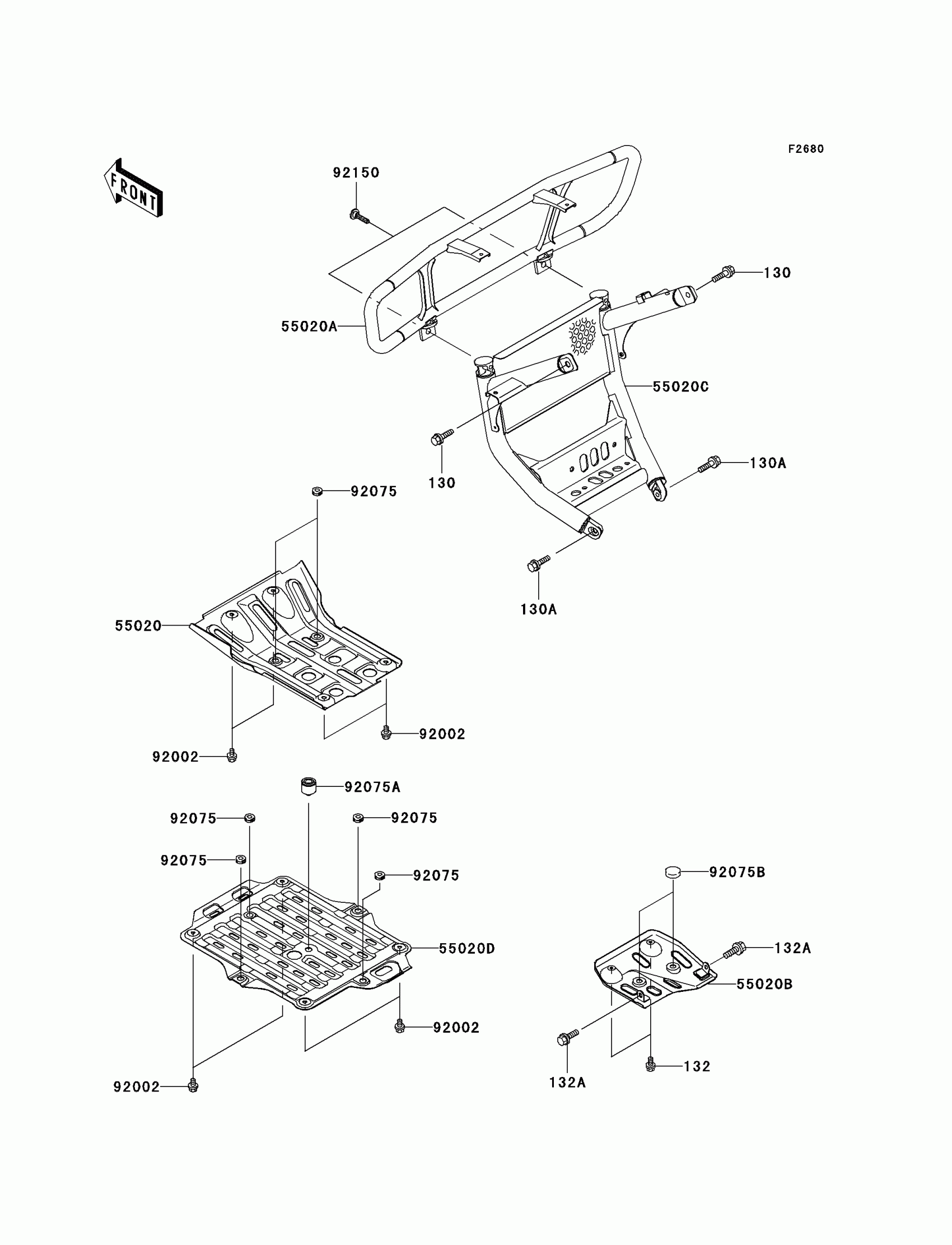

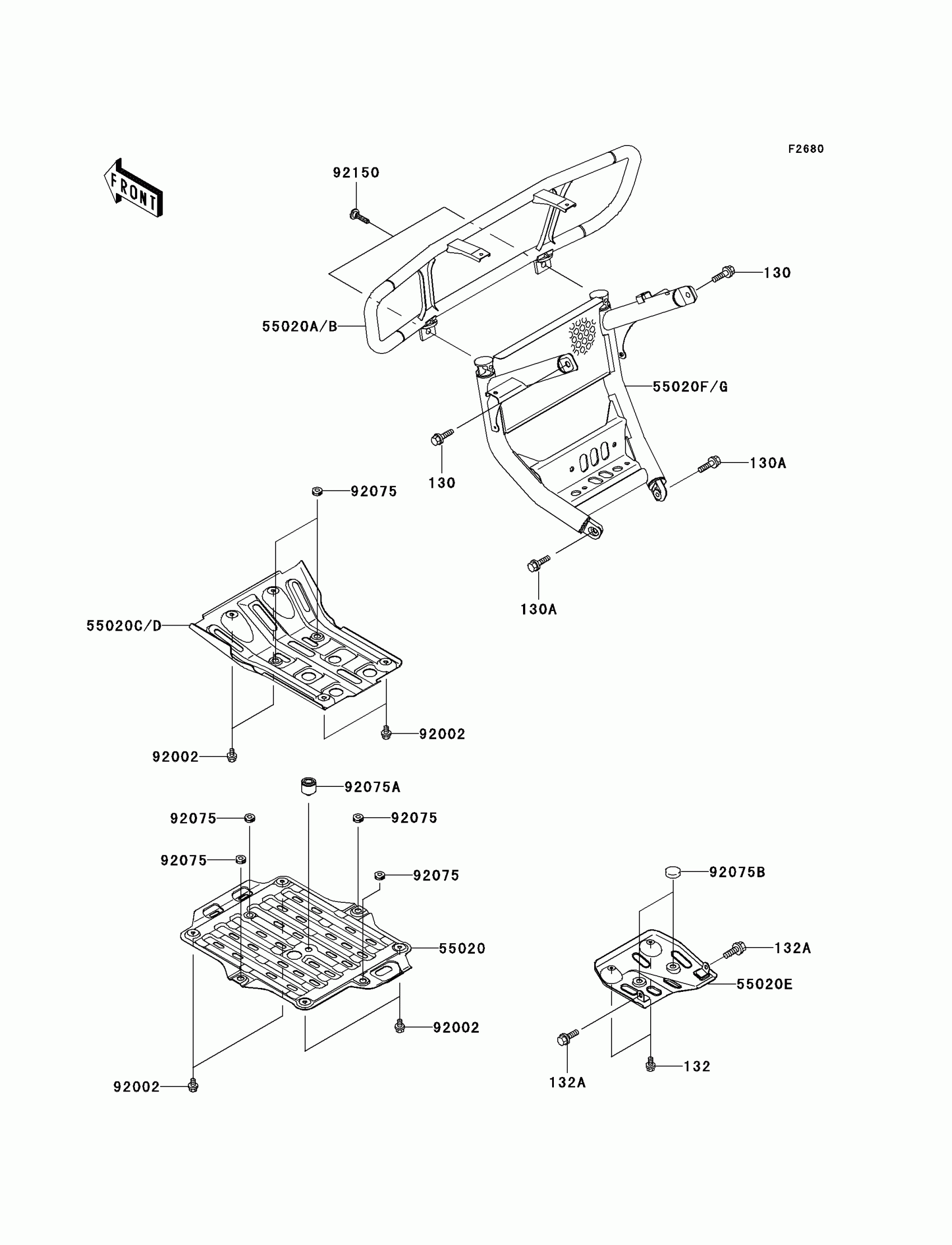

2002 Kawasaki Prairie 650 4X4 Guard Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

130

BOLT-FLANGED,8X20

130T0820

1
Out of stock

130A

BOLT-FLANGED

130Z0820

1
Out of stock

132

BOLT-FLANGED-SMALL,6X12

132J0612

1
Out of stock

132A

BOLT-FLANGED-SMALL,8X16

132J0816

1
Out of stock

55020

GUARD,ENGINE,UNDER

55020-1712

1
Out of stock

55020A

GUARD,FR,UPP,S.GOLD

55020-1741-UF

1
Out of stock

55020B

GUARD,FR,UPP,SILVER

55020-1741-5A

1
Out of stock

55020C

GUARD,FRONT SKID,S.GOLD

55020-1748-UF

1
Out of stock

55020D

GUARD,FRONT SKID,SILVER

55020-1748-5A

1
Out of stock

55020E

GUARD,SWING ARM

55020-1756

1
Out of stock

55020F

GUARD,FR,LWR,S.GOLD

55020-1760-UF

1
Out of stock

55020G

GUARD,FR,LWR,SILVER

55020-1760-5A

1
Out of stock

92002

BOLT,6X10

92002-1449

1
Out of stock

92075

DAMPER RUBBER

92075-051

1
Out of stock

92075A

DAMPER

92075-1002

1
Out of stock

92075B

DAMPER

92075-157

1
Out of stock

92150

BOLT,8X30

92150-1728

1
Out of stock
