2002 Kawasaki Prairie 650 4X4 Footrests Diagram

← All diagrams

Find the part on the Footrests diagram for your 2002 Kawasaki Prairie 650 4X4, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

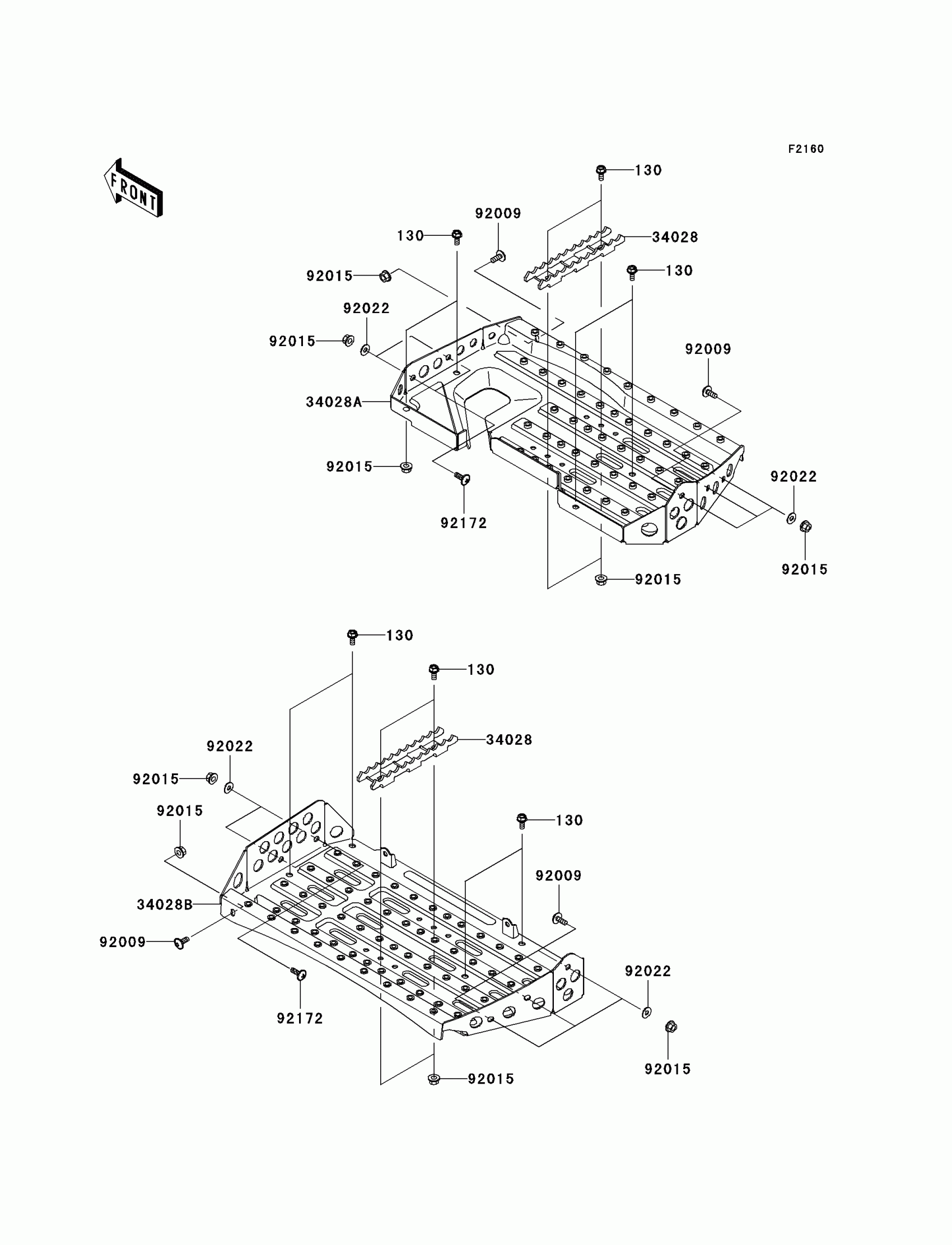

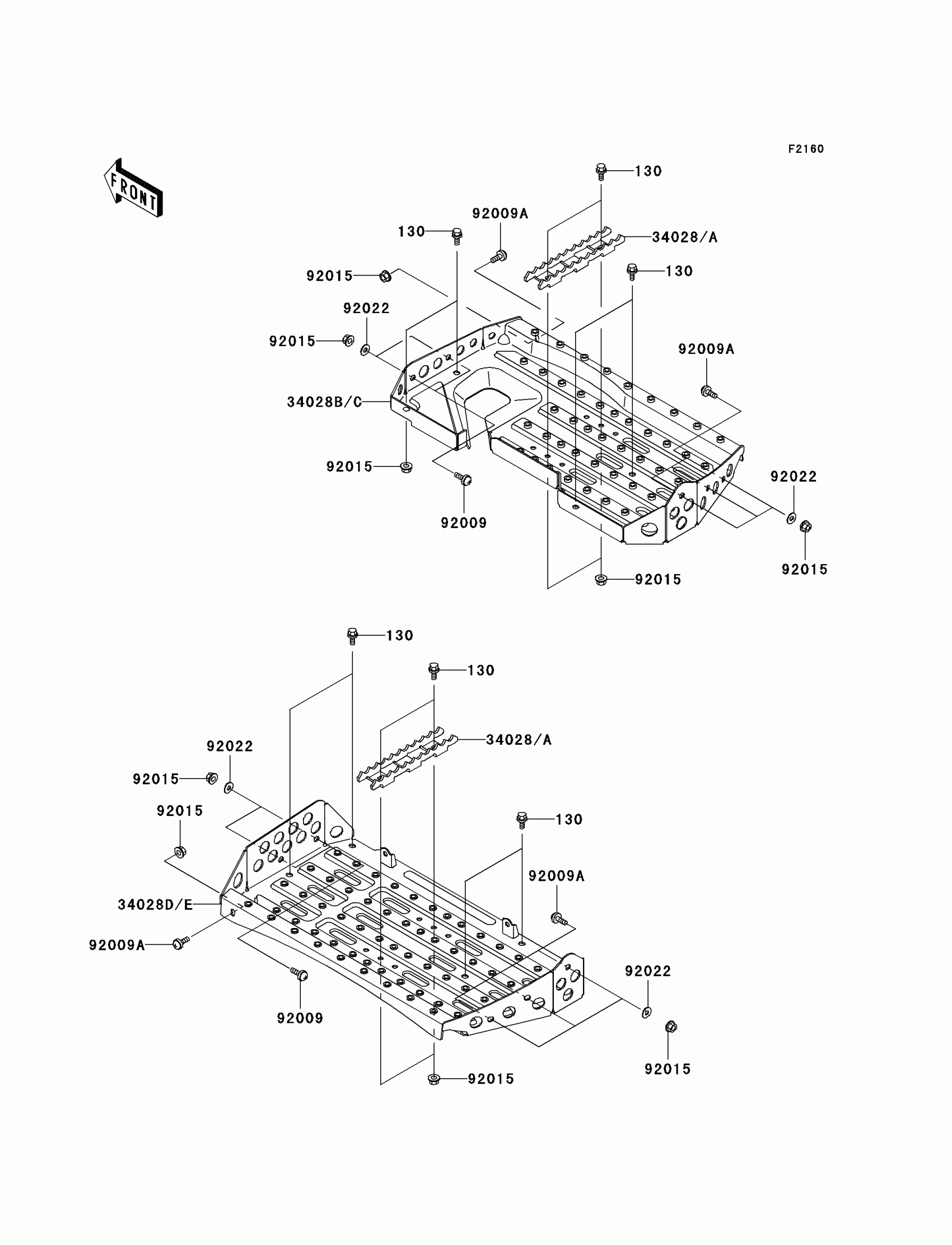

2002 Kawasaki Prairie 650 4X4 Footrests Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

130

BOLT-FLANGED,6X14,BLACK

130J0614

1
Out of stock

34028

STEP,FOOT PEG,S.GOLD

34028-1487-UF

1

$9.73

In stock

34028A

STEP,FOOT PEG,SILVER

34028-1487-5A

1

$8.71

In stock

34028B

STEP,RH,S.GOLD

34028-1513-UF

1

$129.36

In stock

34028C

STEP,RH,SILVER

34028-1513-5A

1

$118.56

In stock

34028D

STEP,LH,S.GOLD

34028-1521-UF

1

$129.36

In stock

34028E

STEP,LH,SILVER

34028-1521-5A

1

$118.56

In stock

92009

SCREW,6X18,BLACK

92009-1181

1
Out of stock

92009A

SCREW,6X16

92009-1621

1
Out of stock

92015

NUT,FLANGED,6MM

92015-1367

1
Out of stock

92022

WASHER,6.5X16X1.0

92022-1093

1
Out of stock
