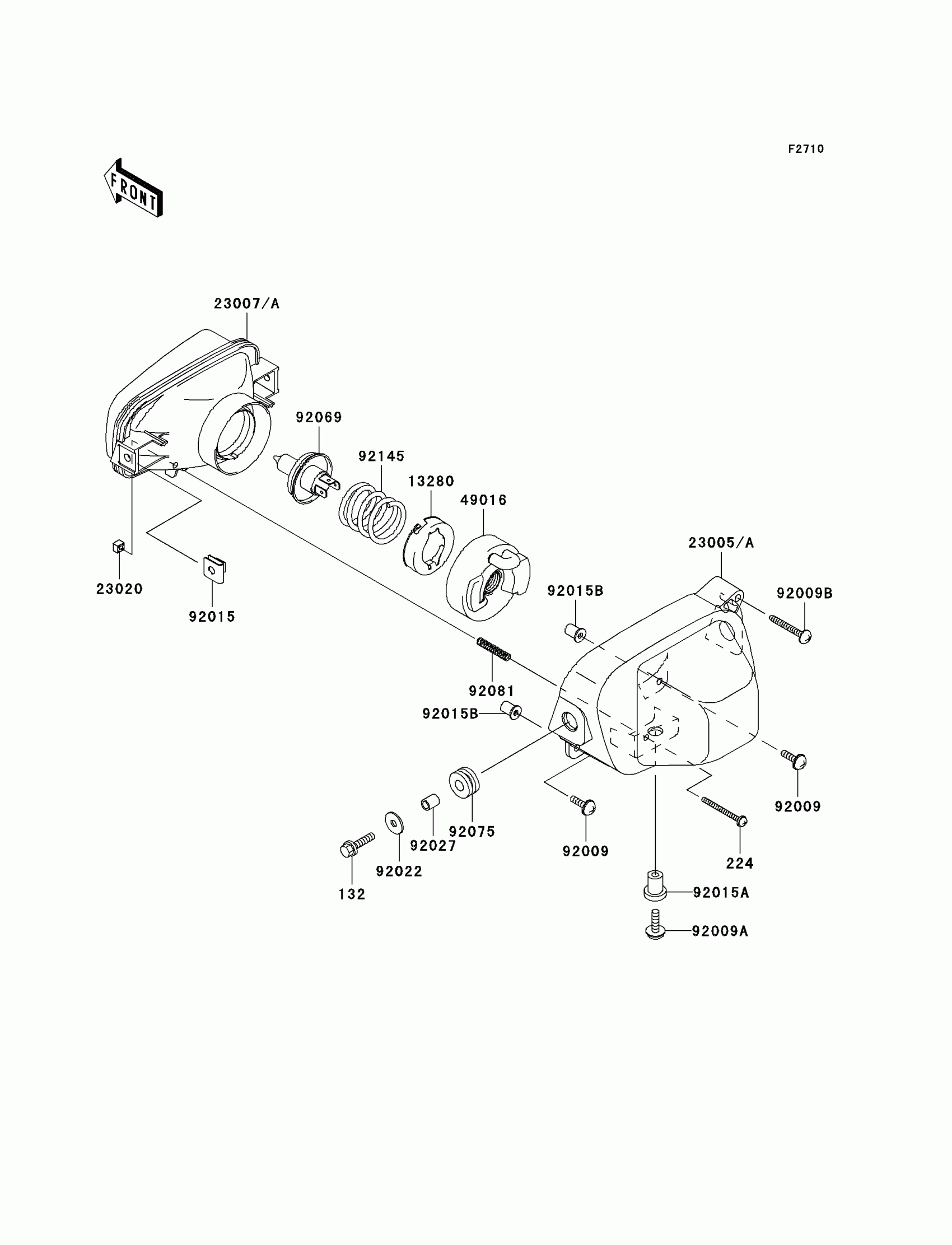

Kawasaki Prairie 650 4X4 Advantage Classic Headlight(s) Diagram

Description

Price

132

BOLT-FLANGED-SMALL,6X25

132H0625

Unavailable

224

SCREW-PAN-WP-CROS,4X45

224D0445

Unavailable

13280

HOLDER,BULB SETTING

13280-1198

$9.46

23005

BODY-COMP-HEAD LAMP,LH

23005-1180

$62.72

23005A

BODY-COMP-HEAD LAMP,RH

23005-1181

$62.72

23007

LENS-COMP,HEAD LAMP,LH

23007-1389

$49.03

23007A

LENS-COMP,HEAD LAMP,RH

23007-1390

$49.03

23020

NUT,4MM,FOCUS ADJUST

23020-018

$3.54

49016

COVER-SEAL,HEAD LAMP

49016-1213

$9.12

92009

SCREW,5X16,BLACK

92009-1654

$2.17

92009A

SCREW

92009-1664

$3.43

92009B

SCREW,TAPPING,5X40

92009-1928

$1.80

92015

NUT,6MM

92015-1094

$6.55

92015A

NUT,RUBBER,6MM

92015-1692

$5.61

92015B

NUT,WELL,5MM

92015-1757

$5.58

92022

WASHER,6.5X20X1.6

92022-125

$1.08

92027

COLLAR,6.8X10X12

92027-162

$4.93

92069

BULB,12V 45/45W,T15

92069-1114

$29.84

92075

DAMPER,10X24X12

92075-1690

$3.81

92081

SPRING,FOCUS ADJUST

92081-1896

$3.99

92145

SPRING,BULB SETTING

92145-1346

$11.10
