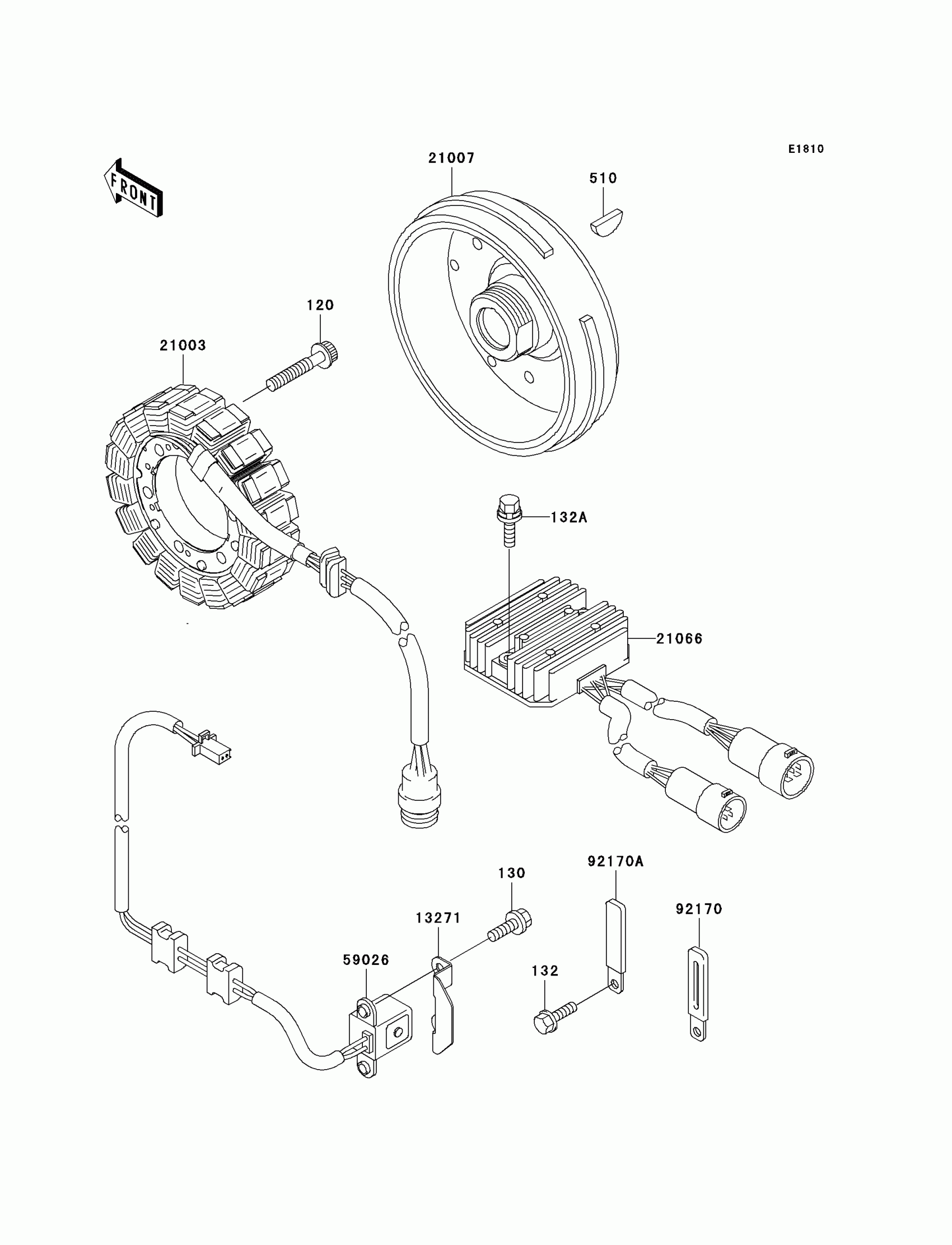

Find the part on the Generator diagram for your 2002 Kawasaki Prairie 650 4X4 Advantage Classic, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2002 Kawasaki Prairie 650 4X4 Advantage Classic Generator Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

120

BOLT-SOCKET,6X28

120P0628

1
Out of stock

130

BOLT-FLANGED

130G0516

1
Out of stock

132

BOLT-FLANGED-SMALL,6X12

132Y0612

1
Out of stock

132A

BOLT-FLANGED-SMALL,6X30

132Y0630

1
Out of stock

510

KEY-WOODRUFF

510A4200

1

$2.37

In stock

13271

PLATE

13271-1369

1

$2.37

In stock

21003

STATOR

21003-1359

1
Out of stock

21007

ROTOR

21007-1367

1

$658.25

In stock

21066

REGULATOR-VOLTAGE

21066-1112

1
Out of stock

59026

COIL-PULSING

59026-1159

1

$107.59

In stock

92170

CLAMP

92170-1514

1

$3.43

In stock

92170A

CLAMP

92170-1925

1

$1.98

In stock
