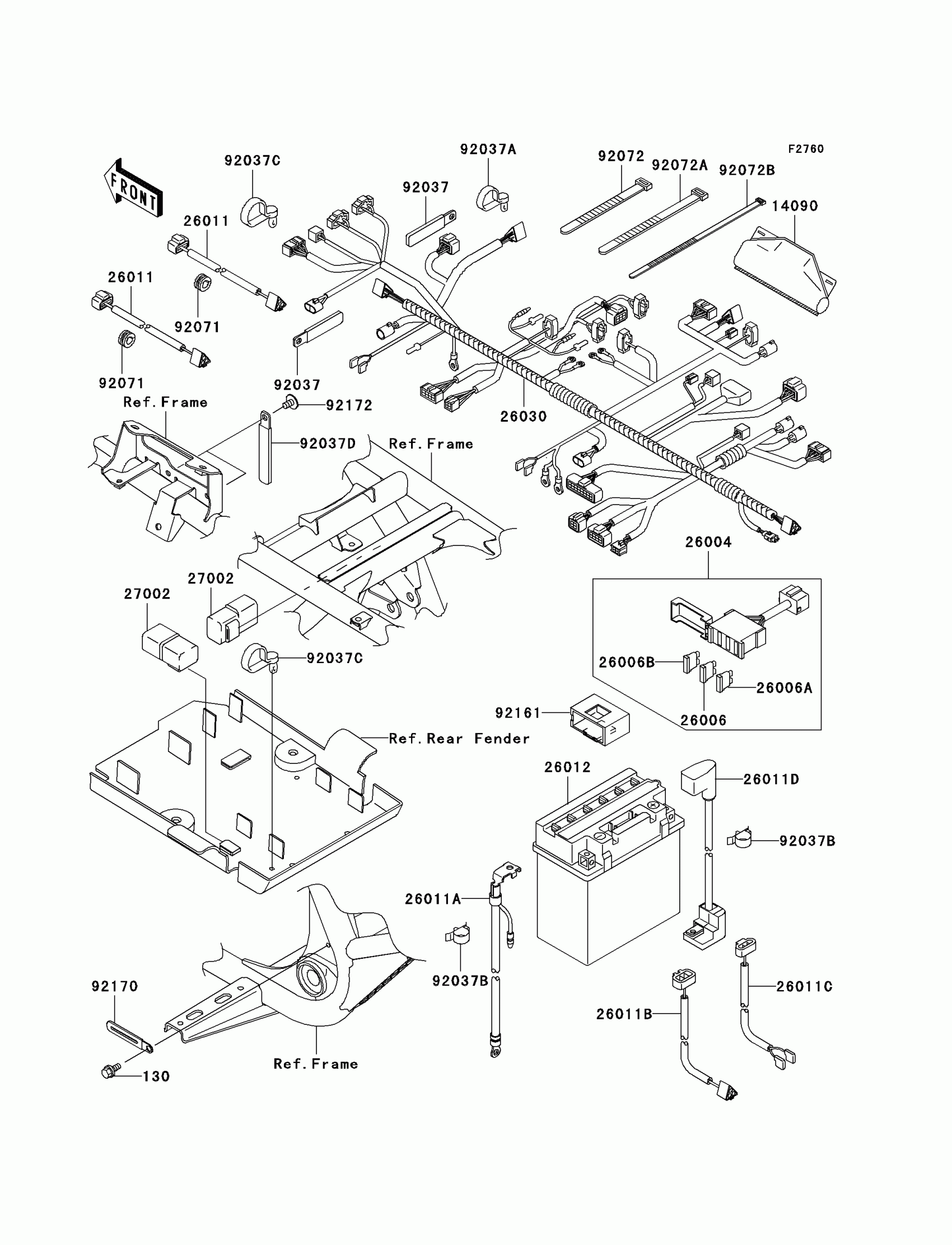

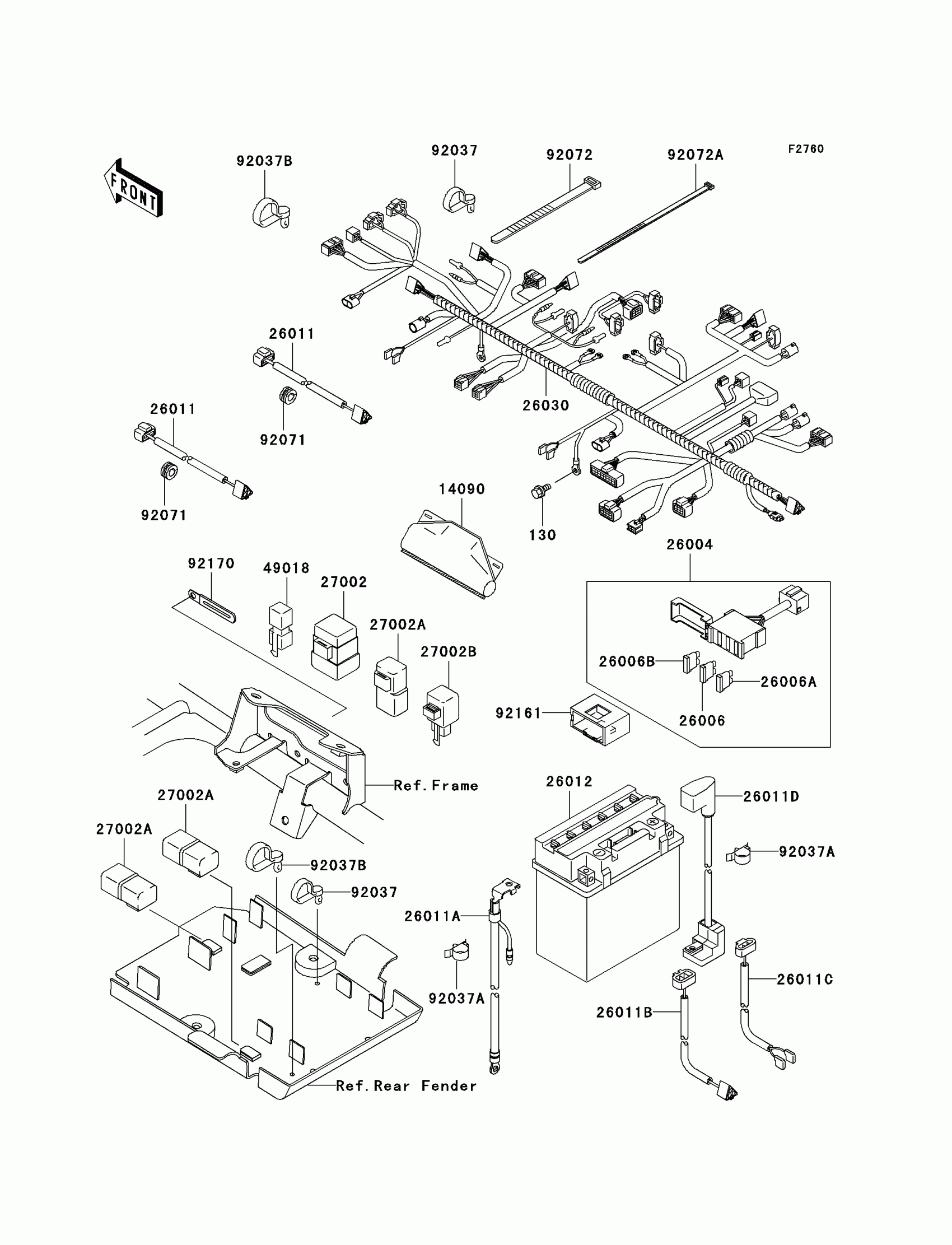

Kawasaki Prairie 650 4X4 Advantage Classic Chassis Electrical Equipment Diagram

Description

Price

130

BOLT

130B0612

Unavailable

14090

COVER,COUPLER

14090-1331

$8.51

26004

FUSE-ASSY

26004-1125

$46.46

26006

FUSE,BLADE,10A,RED

26006-1007

$4.96

26006A

FUSE,BLADE,15A,BLUE

26006-1061

$5.46

26006B

FUSE,BLADE,5A,TAN

26006-1082

$5.92

26011

WIRE-LEAD,HEAD LAMP

26011-1741

Unavailable

26011A

WIRE-LEAD,BATTERY(-)

26011-1752

Unavailable

26011B

WIRE-LEAD,SPEED SENSOR

26011-1801

$36.00

26011C

WIRE-LEAD,FRONT BRAKE

26011-1802

$23.51

26011D

WIRE-LEAD,BATTERY(+)

26011-1827

Unavailable

26012

BATTERY,MF,KMX14-BS,12V 12AH

26012-1414

$114.82

26030

HARNESS,MAIN

26030-1957

$614.24

27002

RELAY-ASSY

27002-1055

$87.08

27002A

RELAY-ASSY

27002-1086

$36.91

27002B

RELAY-ASSY,SIGNAL LAMP

27002-1097

$47.41

49018

DIODE

49018-1052

Unavailable

92037

CLAMP,SPEED,L=58

92037-1163

$6.57

92037A

CLAMP,HARNESS

92037-1878

$8.12

92037B

CLAMP,SPEED,L=80.5

92037-1903

$7.84

92071

GROMMET

92071-1128

$5.43

92072

BAND,L=123

92072-030

$5.00

92072A

BAND,L=188

92072-1239

$1.73

92161

DAMPER,FUSE

92161-1136

$10.99

92170

CLAMP

92170-1514

$4.31
