1998 Kawasaki Prairie 400 Rear HUB Diagram

← All diagrams

Find the part on the Rear HUB diagram for your 1998 Kawasaki Prairie 400, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

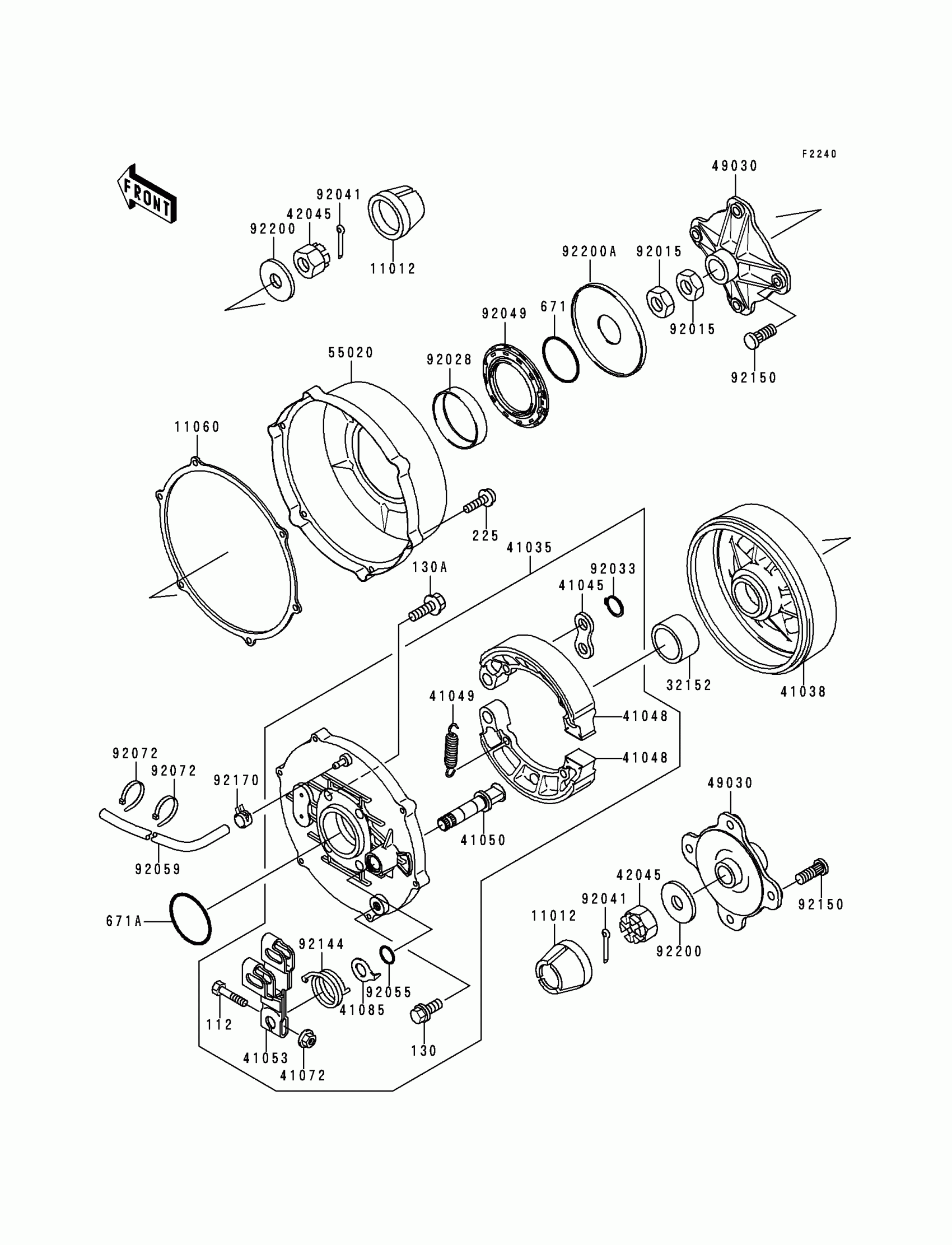

1998 Kawasaki Prairie 400 Rear HUB Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

112

BOLT-UPSET

112H0640

1
Out of stock

130

BOLT-FLANGED,10X12

130B1012

1
Out of stock

130A

BOLT-FLANGED,10X30

130G1030

1
Out of stock

225

SCREW-PAN-WSP-CROS,6X16

225C0616

1
Out of stock

671

O RING

671B2550

1
Out of stock

671A

O RING,70MM

671B2570

1
Out of stock

11012

CAP,WHEEL

11012-1969

1
Out of stock

11060

GASKET

11060-1731

1
Out of stock

32152

PIPE,40X50.8X28

32152-1082

1
Out of stock

41035

PANEL-ASSY-BRAKE,RR

41035-1496

1
Out of stock

41038

DRUM,REAR BRAKE

41038-1280

1
Out of stock

41045

WASHER-BRAKE SHOE

41045-006

1

$7.14

In stock

41048

SHOE-BRAKE

41048-1127

1

$39.84

In stock

41049

SPRING,BRAKE SHOE

41049-012

1

$7.53

In stock

41050

CAM-BRAKE

41050-1089

1

$76.99

In stock

41053

LEVER-BRAKE CAM

41053-1084

1

$56.21

In stock

41072

NUT,6MM

41072-007

1
Out of stock

41085

INDICATOR

41085-1086

1
Out of stock

42045

NUT,CASTLE,18MM

42045-018

1
Out of stock

49030

HUB,RR,LH

49030-1120

1
Out of stock

55020

GUARD,REAR BRAKE DRUM

55020-1625

1
Out of stock

92015

NUT,LOCK,37MM

92015-1545

1
Out of stock

92028

BUSHING

92028-1824

1
Out of stock

92033

RING-SNAP,15MM

92033-1250

1
Out of stock

92041

COTTER,4.0X35

92041-1053

1
Out of stock

92049

SEAL-OIL

92049-1472

1
Out of stock

92055

RING-O,ID=16.4

92055-1376

1
Out of stock

92059

TUBE,4.7X9.5X1240

92059-1968

1
Out of stock

92072

BAND,L=123

92072-030

1
Out of stock

92144

SPRING

92144-1365

1
Out of stock

92150

BOLT

92150-1289

1
Out of stock

92170

CLAMP

92170-2042

1

$1.15

In stock

92200

WASHER,18.5X52X4.5

92200-1139

1
Out of stock

92200A

WASHER

92200-1372

1
Out of stock
