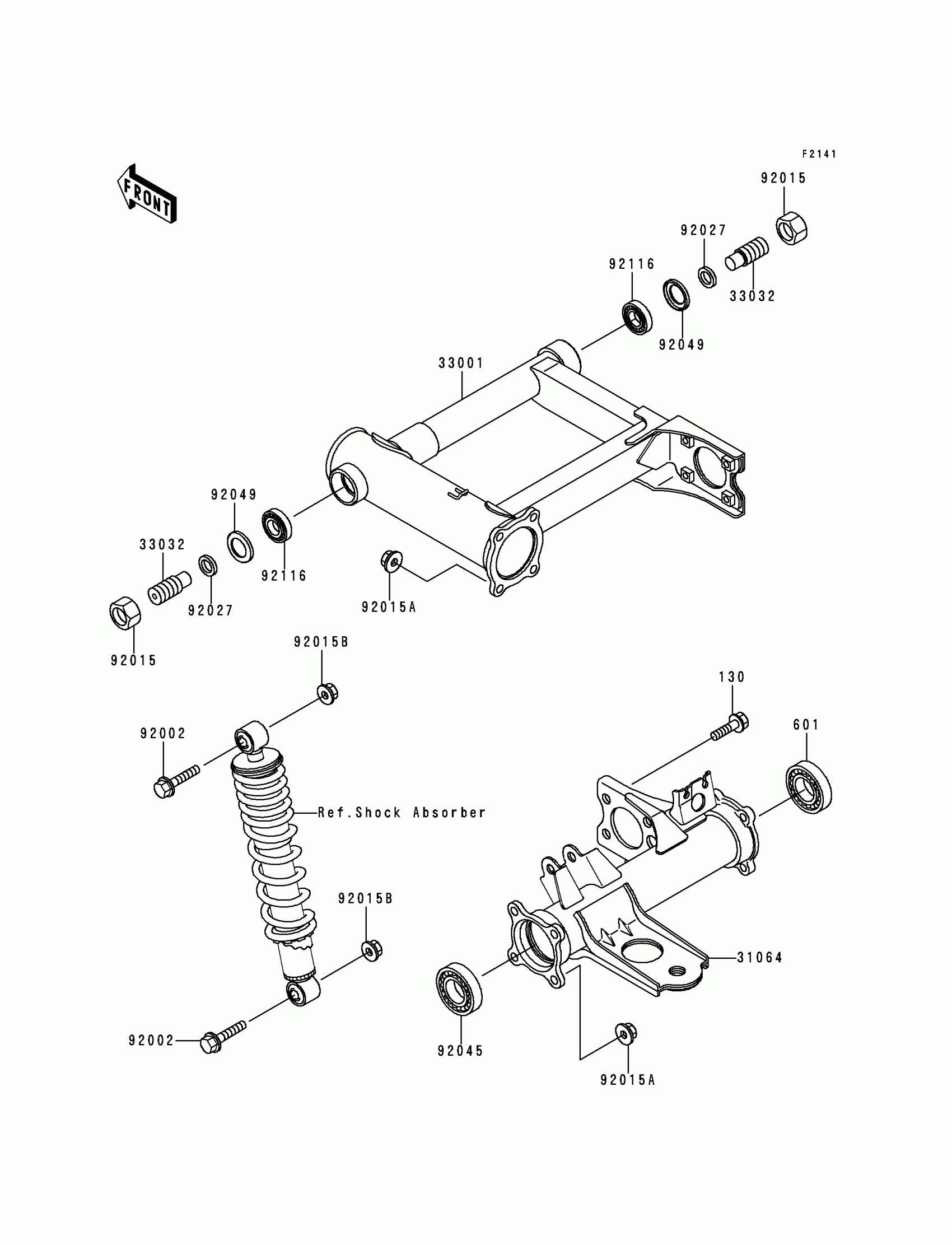

Kawasaki Prairie 400 Swingarm Diagram

Description

Price

130

BOLT-FLANGED,10X25

130J1025

Unavailable

601

BEARING-BALL,#6008UU

601A6008UU

$62.59

31064

PIPE-COMP

31064-1214

$103.85

33001

ARM-COMP-SWING

33001-1555

Unavailable

33032

SHAFT-SWING ARM

33032-1034

Unavailable

92002

BOLT,FLANGED,12X55

92002-1840

$9.02

92015

NUT,22MM

92015-1229

$7.83

92015A

NUT,FLANGED,10MM

92015-1335

$1.85

92027

COLLAR,17X26X4.5

92027-1394

$6.47

92045

BEARING-BALL

92045-1177

$68.97

92049

SEAL-OIL,26406

92049-1030

$7.41

92116

BEARING-ROLLER,4T30203E1

92116-1001

$33.92

92015B

NUT,LOCK,12MM

92015-1617

$6.85
