Description

Price

112

BOLT-UPSET

112D0614

$0.48

220

SCREW-PAN-CROS,4X16

220C0416

Unavailable

220A

SCREW-PAN-CROS,5X30

220C0530

Unavailable

220B

SCREW-PAN-CROS,5X35

220C0535

$1.49

220C

SCREW-PAN HEAD,6X30

220C0630

$1.41

11012

CAP

11012-1425

Unavailable

11045

BRACKET,HANDLE COVER,RH

11045-1925

$7.56

13168

LEVER,LH

13168-1449

$38.58

13168A

LEVER,LOCK

13168-1450

$30.92

13183

PLATE,LOCK

13183-1609

Unavailable

27010

SWITCH,LIMITTER

27010-1363

Unavailable

39074

LEVER-ASSY-THROTTLE

39074-1055

$80.61

39075

LEVER-THROTTLE,ARM

39075-1054

$11.03

39075A

LEVER-THROTTLE

39075-1059

Unavailable

46003

HANDLE

46003-1452

$91.73

46012

HOLDER-HANDLE

46012-1168

$15.44

46075

GRIP

46075-1056

$20.92

46076

LEVER-ASSY-GRIP,LH

46076-1178

$55.99

46091

HOUSING-ASSY-CONTROL,LH

46091-1462

$238.91

46092

LEVER-GRIP,CHOKE

46092-1149

$4.29

49006

BOOT,CLUTCH LEVER

49006-1057

$20.61

59441

COVER-HANDLE

59441-1119

$36.57

92001

BOLT,FLANGED,8X58

92001-1005

$7.24

92009

SCREW,CABLE ADJUST,8MM

92009-1435

$12.40

92015

NUT,CABLE ADJUST LOCK,8MM

92015-1596

$6.75

92015A

NUT

92015-1829

$3.12

92022

WASHER,4MM

92022-1647

$3.93

92022A

WASHER,5MM

92022-1837

$2.31

92022B

WASHER,WAVE,5MM

92022-1838

$2.31

92027

COLLAR,RETURN SPRING

92027-1336

$13.56

92037

CLAMP,CLIP

92037-1836

$4.68

92043

PIN,SPRING,3X16

92043-1268

$9.92

92066

PLUG,HANDLE

92066-1191

Unavailable

92072

BAND,L=149

92072-031

$3.81

92081

SPRING,LOCK RETURN

92081-1358

$4.80

92081A

SPRING

92081-1685

$80.61

92143

COLLAR

92143-1138

$3.15

92143A

COLLAR,5.6X8X7

92143-1336

$1.12

92150

BOLT

92150-1420

Unavailable

92200

WASHER,4.5X11.5X0.8

92200-1361

$3.92

223

SCREW-PAN-WS-CROS,5X12

223C0512

$3.29

223A

SCREW-PAN-WS-CROS,4X20

223D0420

Unavailable

225

SCREW-PAN-WSP-CROS,6X20

225C0620

Unavailable

312

NUT-HEX,6MM,BLACK

312C0600

Unavailable

411

WASHER-PLAIN,6MM

411E0600

$1.03

461

WASHER-SPRING

461L0600

$0.66

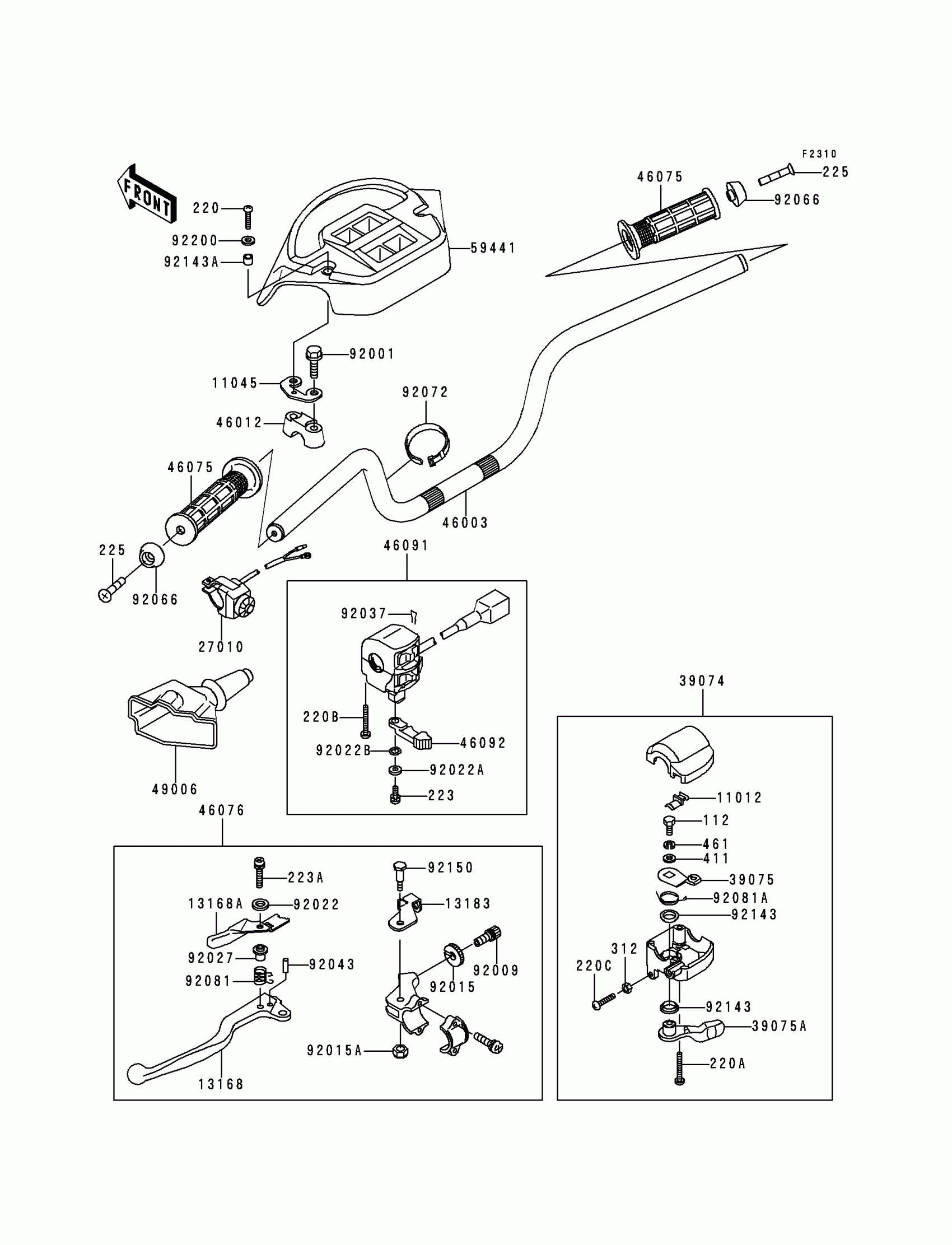

Kawasaki Prairie 400 Handlebar Diagram

BOLT-UPSET

SCREW-PAN-CROS,4X16

SCREW-PAN-CROS,5X30

SCREW-PAN-CROS,5X35

SCREW-PAN HEAD,6X30

CAP

BRACKET,HANDLE COVER,RH

LEVER,LH

LEVER,LOCK

PLATE,LOCK

SWITCH,LIMITTER

LEVER-ASSY-THROTTLE

LEVER-THROTTLE,ARM

LEVER-THROTTLE

HANDLE

HOLDER-HANDLE

GRIP

LEVER-ASSY-GRIP,LH

HOUSING-ASSY-CONTROL,LH

LEVER-GRIP,CHOKE

BOOT,CLUTCH LEVER

COVER-HANDLE

BOLT,FLANGED,8X58

SCREW,CABLE ADJUST,8MM

NUT,CABLE ADJUST LOCK,8MM

NUT

WASHER,4MM

WASHER,5MM

WASHER,WAVE,5MM

COLLAR,RETURN SPRING

CLAMP,CLIP

PIN,SPRING,3X16

PLUG,HANDLE

BAND,L=149

SPRING,LOCK RETURN

SPRING

COLLAR

COLLAR,5.6X8X7

BOLT

WASHER,4.5X11.5X0.8

SCREW-PAN-WS-CROS,5X12

SCREW-PAN-WS-CROS,4X20

SCREW-PAN-WSP-CROS,6X20

NUT-HEX,6MM,BLACK

WASHER-PLAIN,6MM

WASHER-SPRING
