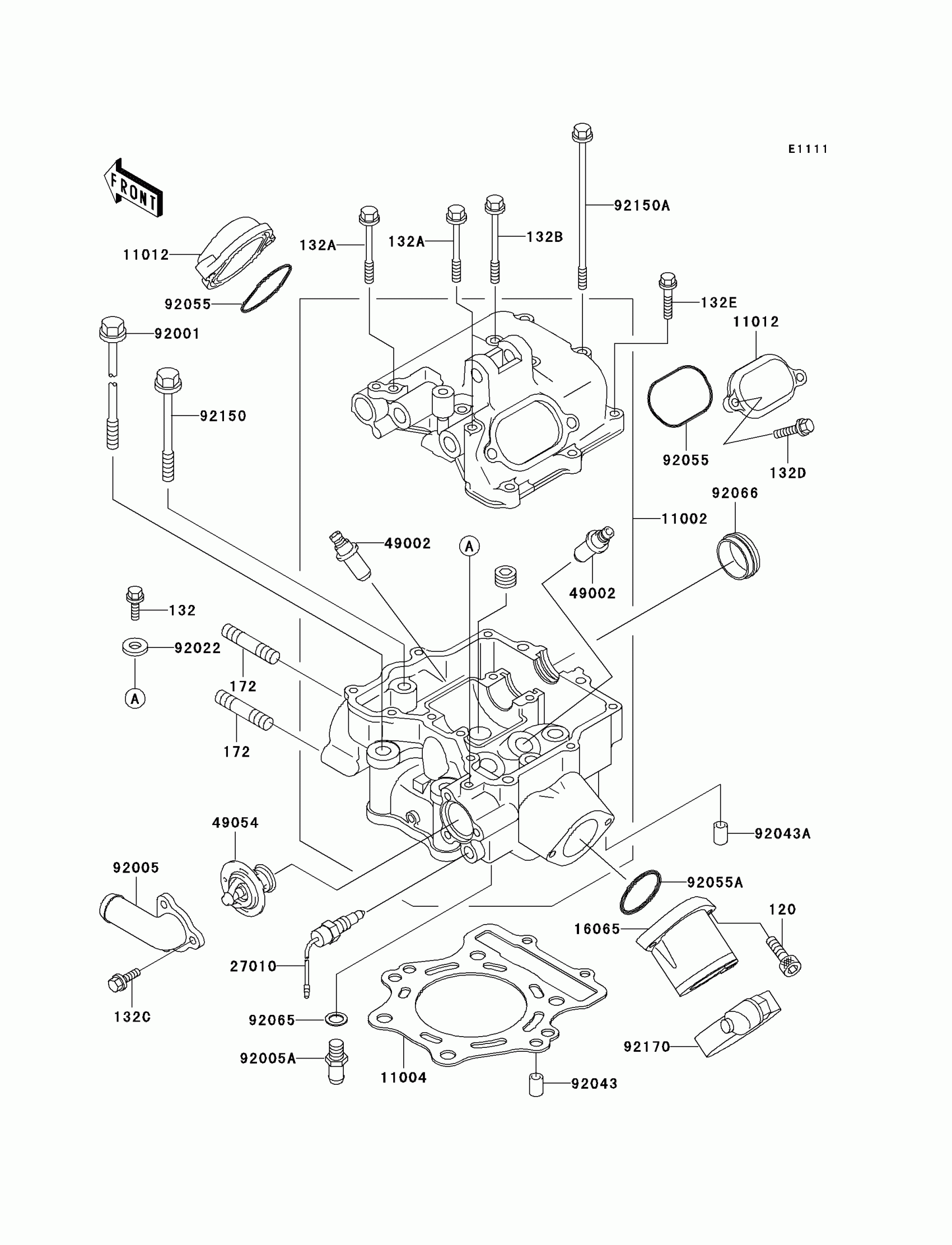

Find the part on the Cylinder Head diagram for your 2002 Kawasaki Prairie 400, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2002 Kawasaki Prairie 400 Cylinder Head Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

120

BOLT-SOCKET,6X20

120S0620

1
Out of stock

132

BOLT-FLANGED-SMALL,6X10

132G0610

1
Out of stock

132A

BOLT-FLANGED-SMALL,6X55

132G0655

1
Out of stock

132B

BOLT-FLANGED-SMALL,6X65

132G0665

1
Out of stock

132C

BOLT-FLANGED-SMALL,6X12

132J0612

1
Out of stock

132D

BOLT-FLANGED-SMALL,6X20

132V0620

1
Out of stock

132E

BOLT-FLANGED-SMALL,6X30

132V0630

1
Out of stock

172

BOLT-STUD,8X22

172G0822

1
Out of stock

11002

HEAD-ASSY-CYLINDER

11002-1342

1
Out of stock

11004

GASKET-HEAD

11004-1233

1
Out of stock

11012

CAP,ROCKER CASE

11012-1793

1
Out of stock

16065

HOLDER-CARBURETOR

16065-1337

1
Out of stock

27010

SWITCH,SENSOR WATER

27010-1346

1
Out of stock

49002

GUIDE-VALVE

49002-1052

—
Out of stock

49054

THERMOSTAT

49054-1053

1
Out of stock

92001

BOLT,10X185

92001-1994

1
Out of stock

92005

FITTING

92005-1121

1
Out of stock

92005A

FITTING

92005-1344

1
Out of stock

92022

WASHER,6.2X11X1

92022-304

1
Out of stock

92043

PIN,6.2X8X14

92043-1263

1
Out of stock

92043A

PIN,DOWEL,8X10

92043-1302

1
Out of stock

92055

RING-O,55MM

92055-1120

1
Out of stock

92055A

RING-O,39.5X2.4

92055-1342

1
Out of stock

92065

GASKET,10.5X16X1

92065-058

1
Out of stock

92066

PLUG

92066-1289

1
Out of stock

92150

BOLT,8X83

92150-1531

1
Out of stock

92150A

BOLT,6X135

92150-1552

1
Out of stock

92170

CLAMP

92170-1677

1
Out of stock
