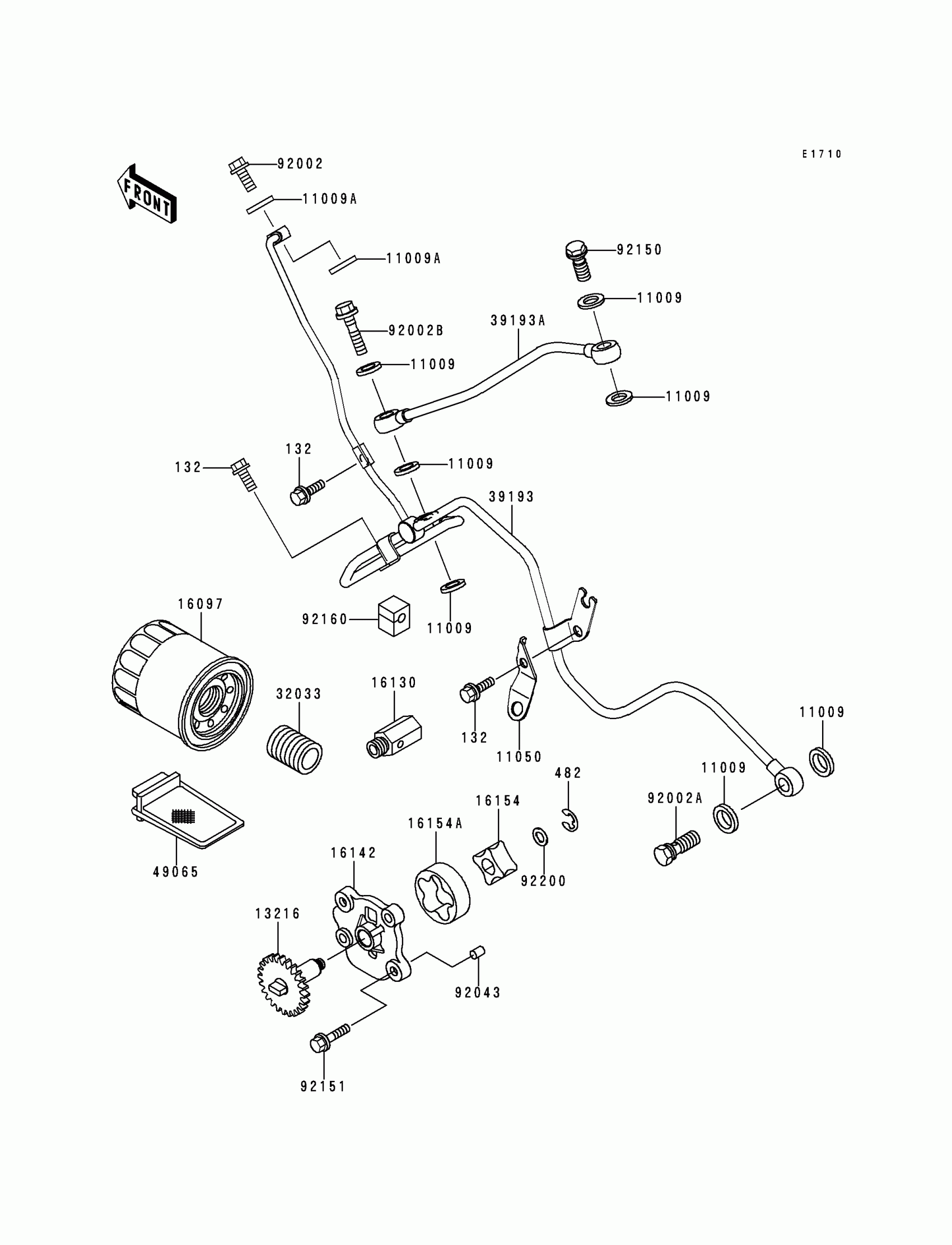

Kawasaki Prairie 400 Oil Pump/Oil Filter Diagram

Description

Price

132

BOLT-FLANGED-SMALL

132G0612

Unavailable

482

CIRCLIP-TYPE-E,6MM

482J6000

$0.65

11009

GASKET,10X14.5X1.5

11009-1105

$4.88

11009A

GASKET,8.2X14X1.0

11009-1344

$2.11

11050

BRACKET

11050-1304

$8.46

13216

GEAR-COMP,OIL PUMP

13216-1165

Unavailable

16097

FILTER-ASSY-OIL

16097-1063

$11.00

16130

VALVE-ASSY-RELIEF

16130-1001

$41.95

16142

COVER-PUMP

16142-1136

$42.84

16154

ROTOR-PUMP,INNER

16154-2059

$5.43

16154A

ROTOR-PUMP,OUTER

16154-2060

$7.82

32033

PIPE,OIL FILTER

32033-1535

$9.85

39193

PIPE-OIL,HEAD-TRANSMISSIN

39193-1027

Unavailable

39193A

PIPE-OIL,CRANKSHAFT

39193-1028

$60.36

49065

FILTER-OIL

49065-1070

$13.36

92002

BOLT,8X20

92002-1429

$10.63

92002A

BOLT,OIL,L=23

92002-1888

$4.15

92002B

BOLT,OIL,L=37

92002-1909

$9.00

92043

PIN,DOWEL,8X10

92043-1302

$0.84

92150

BOLT,BANJO,10X23

92150-1123

Unavailable

92151

BOLT,FLANGED-SMALL,6X22

92151-1197

$4.92

92160

DAMPER

92160-1522

Unavailable

92200

WASHER,7.7X13X1.0

92200-1107

Unavailable
