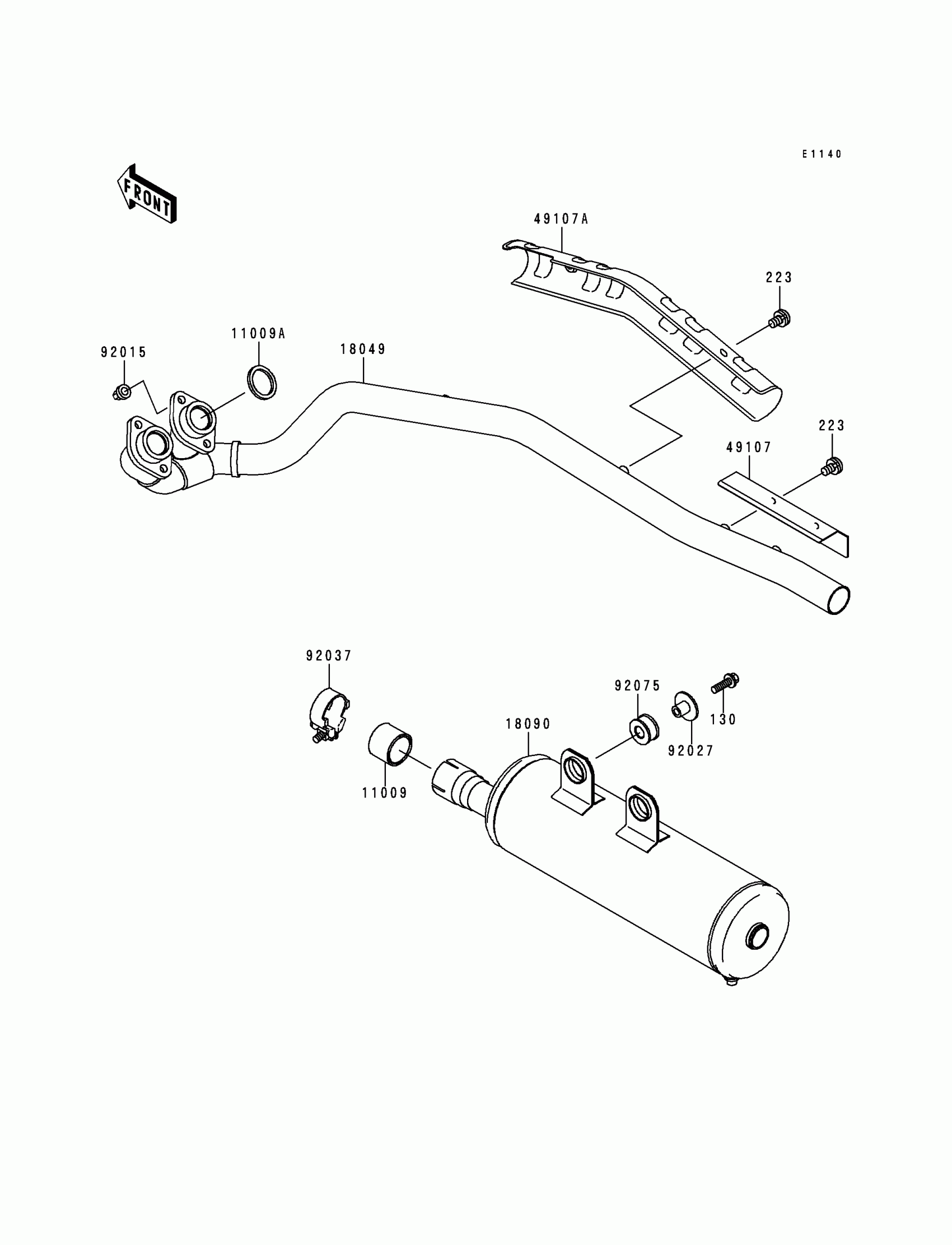

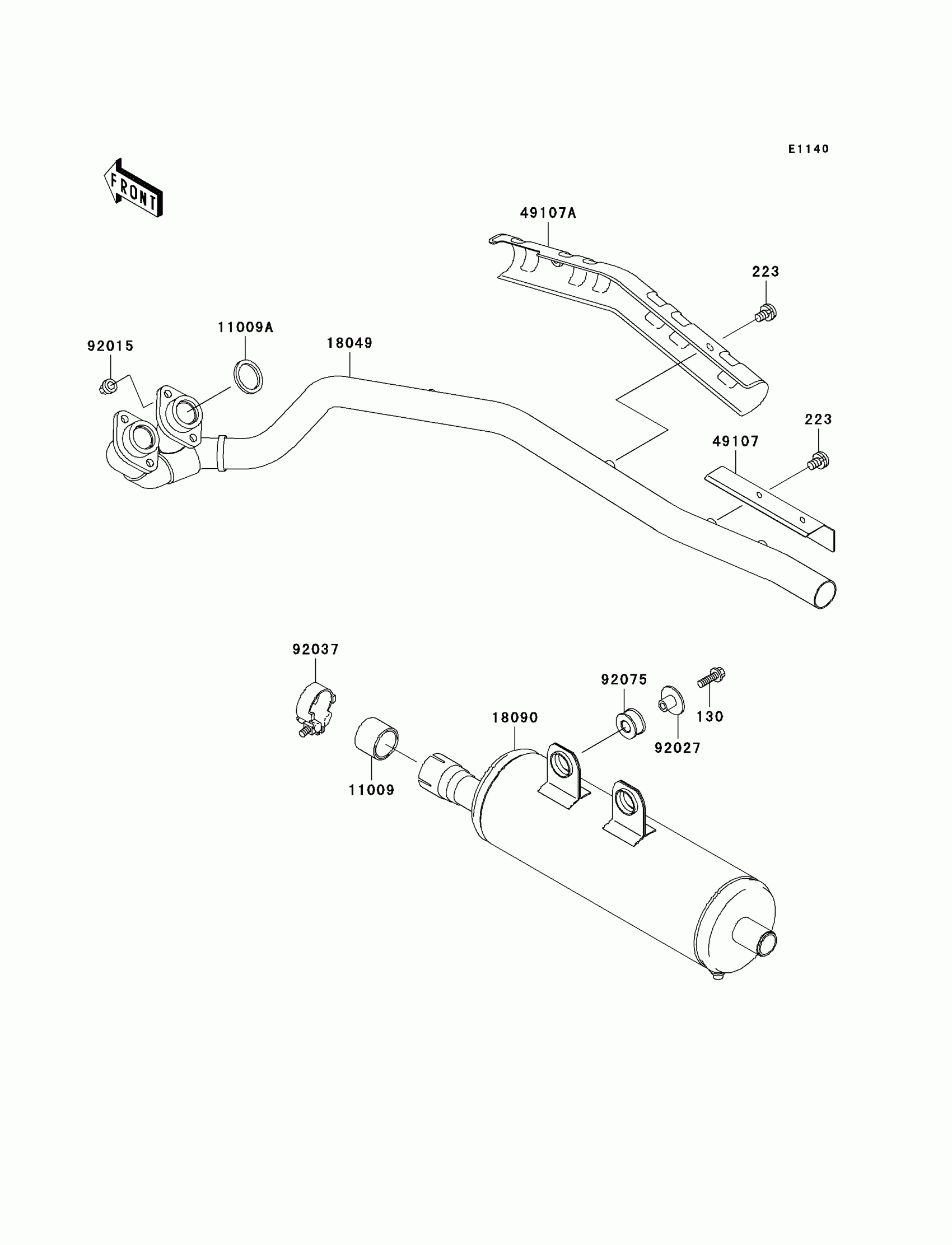

Kawasaki Prairie 400 Muffler(s) Diagram

Description

Price

130

BOLT-FLANGED,8X25,BLACK

130J0825

Unavailable

223

SCREW-PAN-WS-CROS

223C0610

$3.14

11009

GASKET,EXHAUST PIPE CONNECTING

11009-1667

$18.50

11009A

GASKET,EXHAUST PIPE H

11009-1866

$6.29

18049

PIPE-EXHAUST

18049-1753

$290.06

18090

BODY-COMP-MUFFLER

18090-1525

Unavailable

49107

COVER-EXHAUST PIPE

49107-1130

$37.51

49107A

COVER-EXHAUST PIPE

49107-1135

$59.02

92015

NUT,8MM

92015-1402

$3.57

92027

COLLAR,MUFFLER

92027-1981

$8.19

92037

CLAMP,42MM

92037-1349

$9.84

92075

DAMPER,MUFFLER

92075-1809

$6.39
