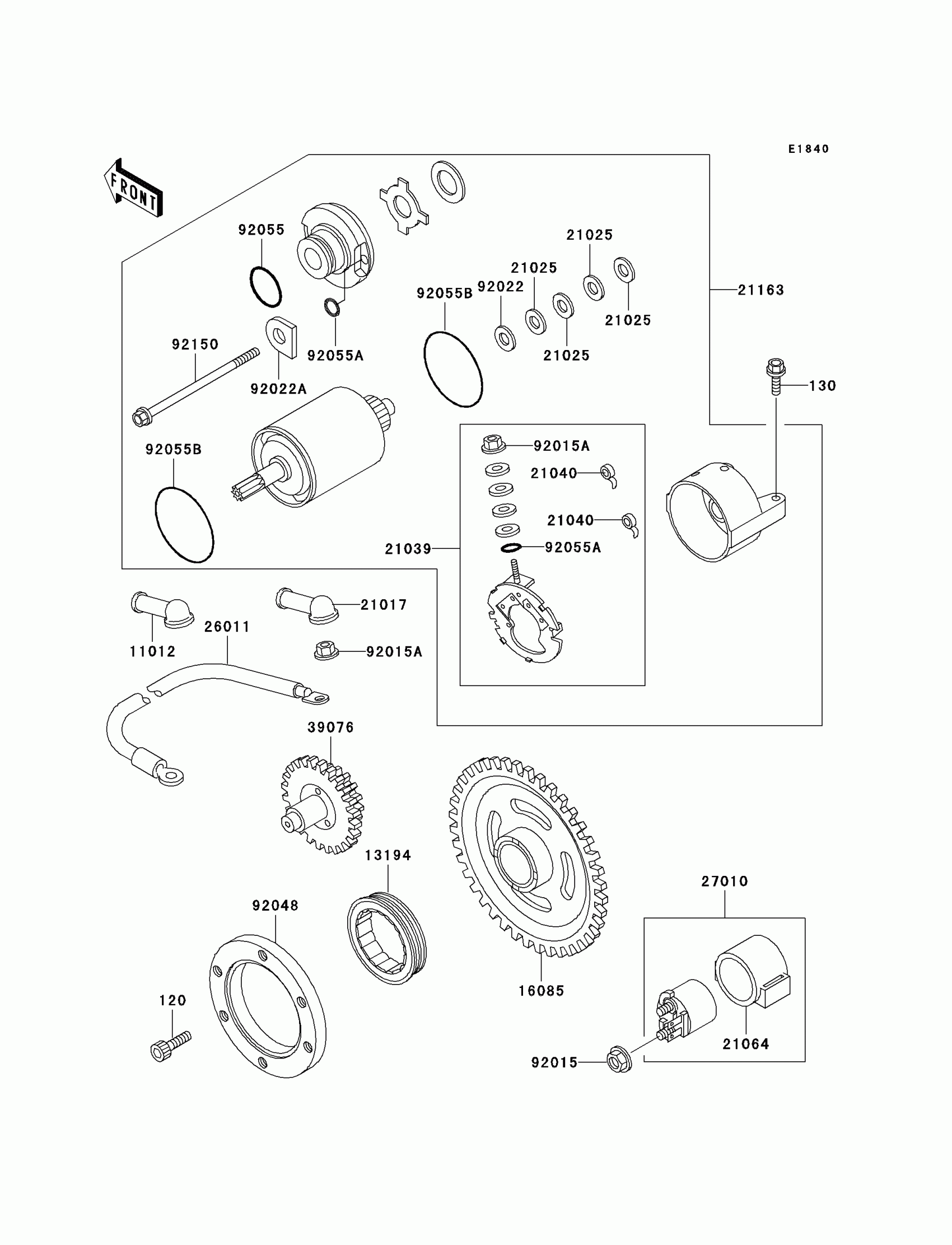

Find the part on the Starter Motor diagram for your 1998 Kawasaki Prairie 400 4X4, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1998 Kawasaki Prairie 400 4X4 Starter Motor Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

120

BOLT-SOCKET,8X16

120P0816

1
Out of stock

130

BOLT,FLANGED,6X25

130G0625

1
Out of stock

11012

CAP,TERMINAL

11012-1354

1

$9.85

In stock

13194

CLUTCH-ONEWAY

13194-1094

1

$123.96

In stock

16085

GEAR,STARTER

16085-1238

1

$122.94

In stock

21017

1

$7.48

In stock

21025

WASHER,9.1X18X0.2

21025-011

1

$5.42

In stock

21039

BRUSH,CARBON

21039-1063

1

$87.50

In stock

21040

SPRING-BRUSH

21040-1057

1

$8.24

In stock

21064

DAMPER,MAGNETIC SWITCH

21064-002

1
Out of stock

21163

STARTER-ELECTRIC

21163-1208

1
Out of stock

26011

WIRE-LEAD,STARTER MOTOR

26011-1648

1
Out of stock

27010

SWITCH,MAGNETIC

27010-1098

1
Out of stock

39076

LIMITER,STARTER

39076-1066

1

$153.19

In stock

92015

NUT,FLANGED,6MM

92015-1193

1
Out of stock

92015A

NUT,STARTER MOTOR

92015-1476

1

$3.85

In stock

92022

WASHER,9.1X18X0.8

92022-1132

1

$5.42

In stock

92022A

WASHER,LOCK,T=2.0

92022-1458

1

$5.64

In stock

92048

RACE,ONEWAY CLUTCH

92048-1090

1
Out of stock

92055

RING-O

92055-1276

1

$7.86

In stock

92055A

RING-O,4.5X2.0

92055-1370

1

$4.17

In stock

92055B

1

$9.58

In stock

92150

BOLT

92150-1243

1

$10.49

In stock
