1998 Kawasaki Prairie 400 4X4 Headlight Diagram

← All diagrams

Find the part on the Headlight diagram for your 1998 Kawasaki Prairie 400 4X4, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

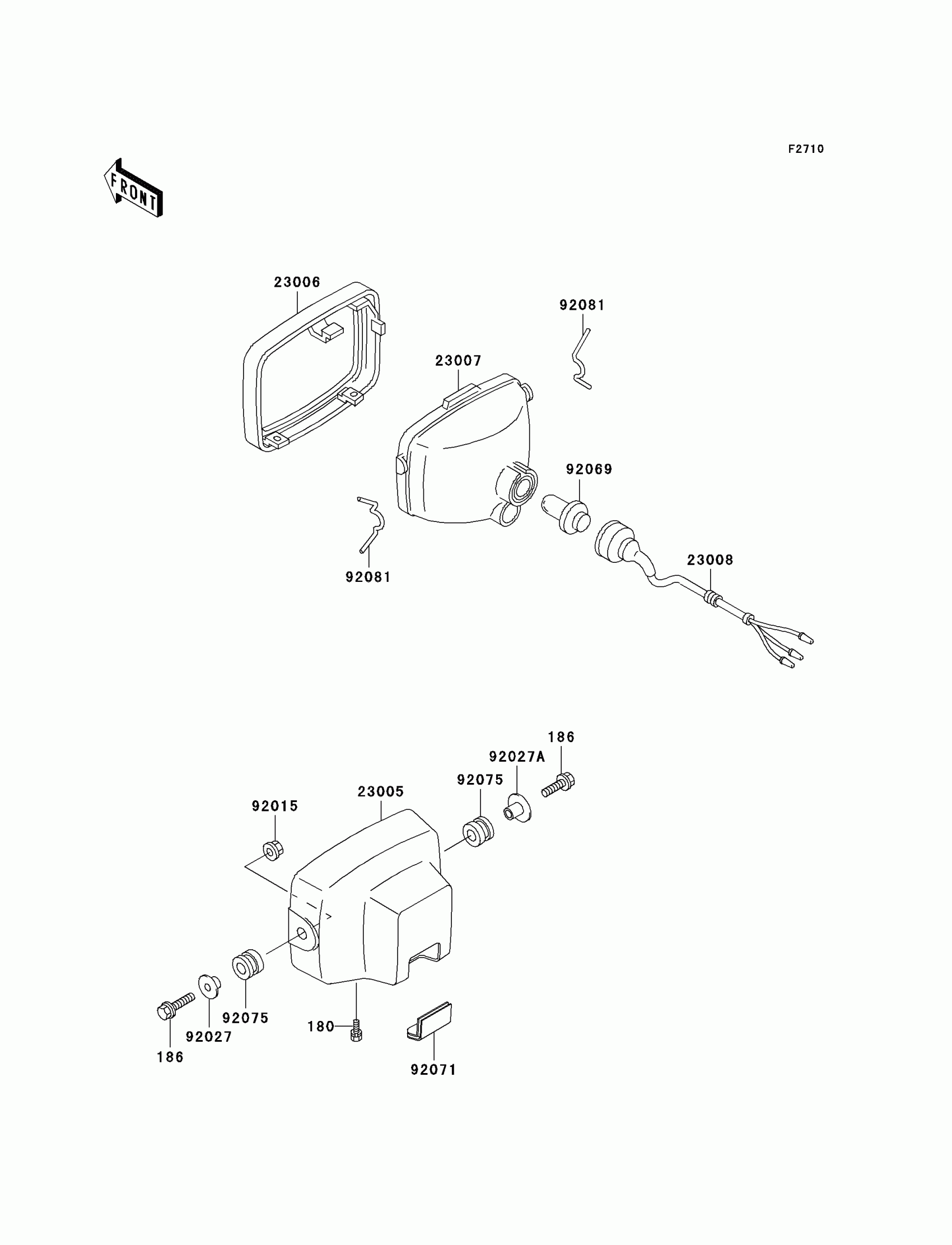

1998 Kawasaki Prairie 400 4X4 Headlight Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

180

BOLT-UPSET-WS

180C0512

1
Out of stock

186

BOLT-UPSET-WP

186B0630

1
Out of stock

23005

BODY-COMP-HEAD LAMP,BLACK

23005-1018-6Z

1
Out of stock

23006

RIM-LAMP

23006-1058

1
Out of stock

23007

LENS-COMP,HEAD LAMP

23007-1274

1
Out of stock

23008

SOCKET-ASSY,HEAD LAMP

23008-1357

1
Out of stock

92015

NUT,FLANGED,6MM

92015-1367

1
Out of stock

92027

COLLAR

92027-1045

1
Out of stock

92027A

COLLAR,L=13.1

92027-251

1
Out of stock

92069

BULB,12V 25/25W

92069-1010

1
Out of stock

92071

GROMMET,HEAD LAMP

92071-1205

1
Out of stock

92075

DAMPER

92075-277

1
Out of stock

92081

SPRING

92081-1421

1
Out of stock
