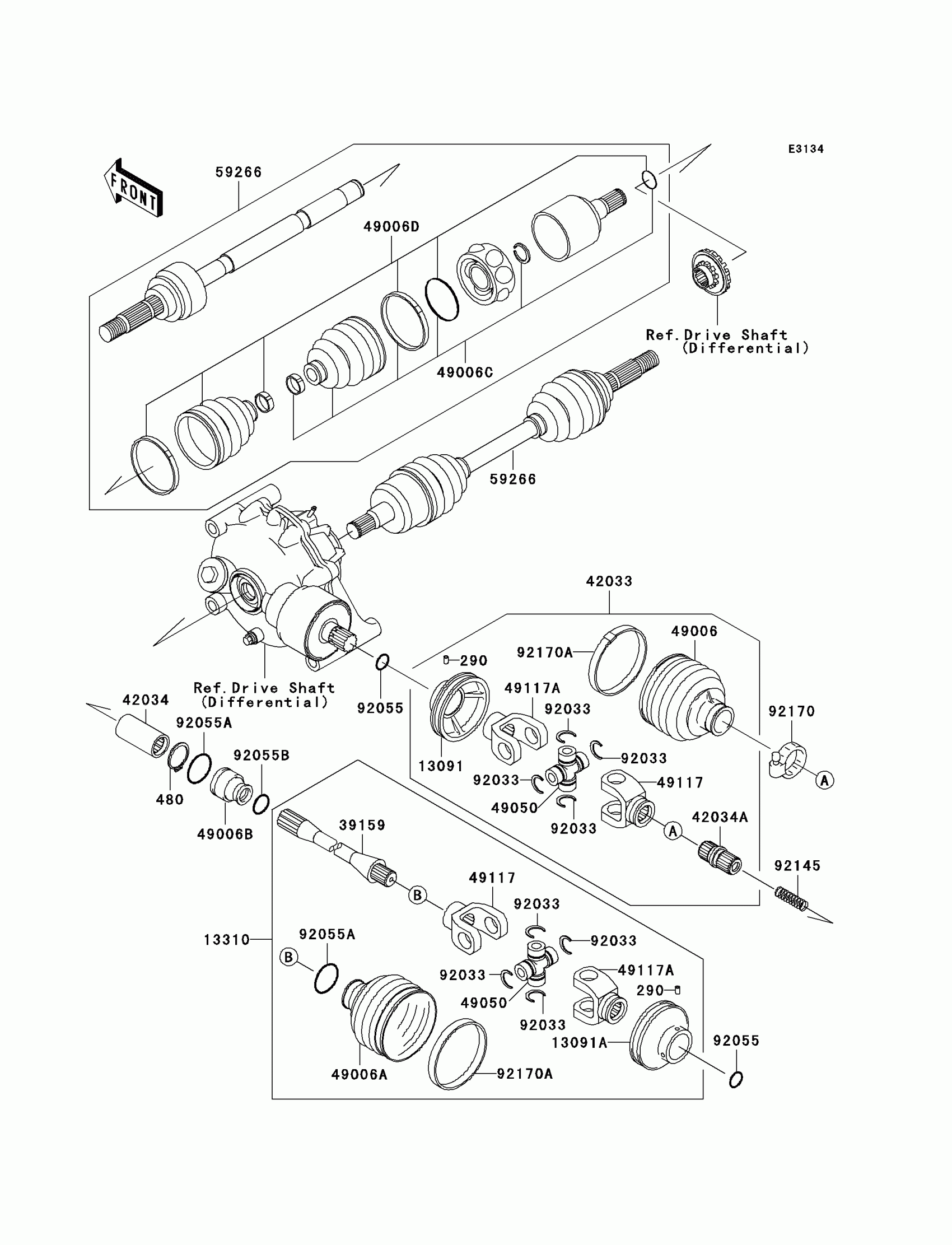

Kawasaki Prairie 400 4X4 Drive Shaft Diagram

#

Description
Price

290

SCREW-SET-SOCKET

290Q0508

$2.84

480

CIRCLIP-TYPE-C,22MM

480J2200

$3.81

13091

HOLDER

13091-1863

Unavailable

13091A

HOLDER

13091-1892

Unavailable

13310

SHAFT-ASSY

13310-1023

$226.47

39159

SHAFT-DRIVE

39159-1108

$252.58

42033

COUPLING-ASSY

42033-1188

Unavailable

42034

COUPLING

42034-1103

Unavailable

42034A

COUPLING

42034-1127

$61.05

49006

BOOT,COUPLING

49006-1293

$34.04

49006A

BOOT,DRIVE SHAFT

49006-1294

$27.88

49006B

BOOT,DRIVE SHAFT

49006-1295

$12.76

49006C

BOOT,JOINT BALL,INSIDE

49006-1322

$73.64

49006D

BOOT,JOINT BALL,OUTSIDE

49006-1324

$124.98

49050

SPIDER

49050-1057

$116.26

49117

YOKE,DRIVE

49117-1083

Unavailable

49117A

YOKE,DRIVE

49117-1084

Unavailable

59266

JOINT-BALL

59266-1101

$759.81

92033

RING-SNAP

92033-1283

$7.69

92055

RING-O,19.5X1.5

92055-055

$3.29

92055A

RING-O,19.5X3.0

92055-1451

$3.57

92055B

RING-O,15X3.0

92055-1531

Unavailable

92145

SPRING

92145-1055

Unavailable

92170

CLAMP

92170-1678

$6.25

92170A

CLAMP

92170-1727

Unavailable
