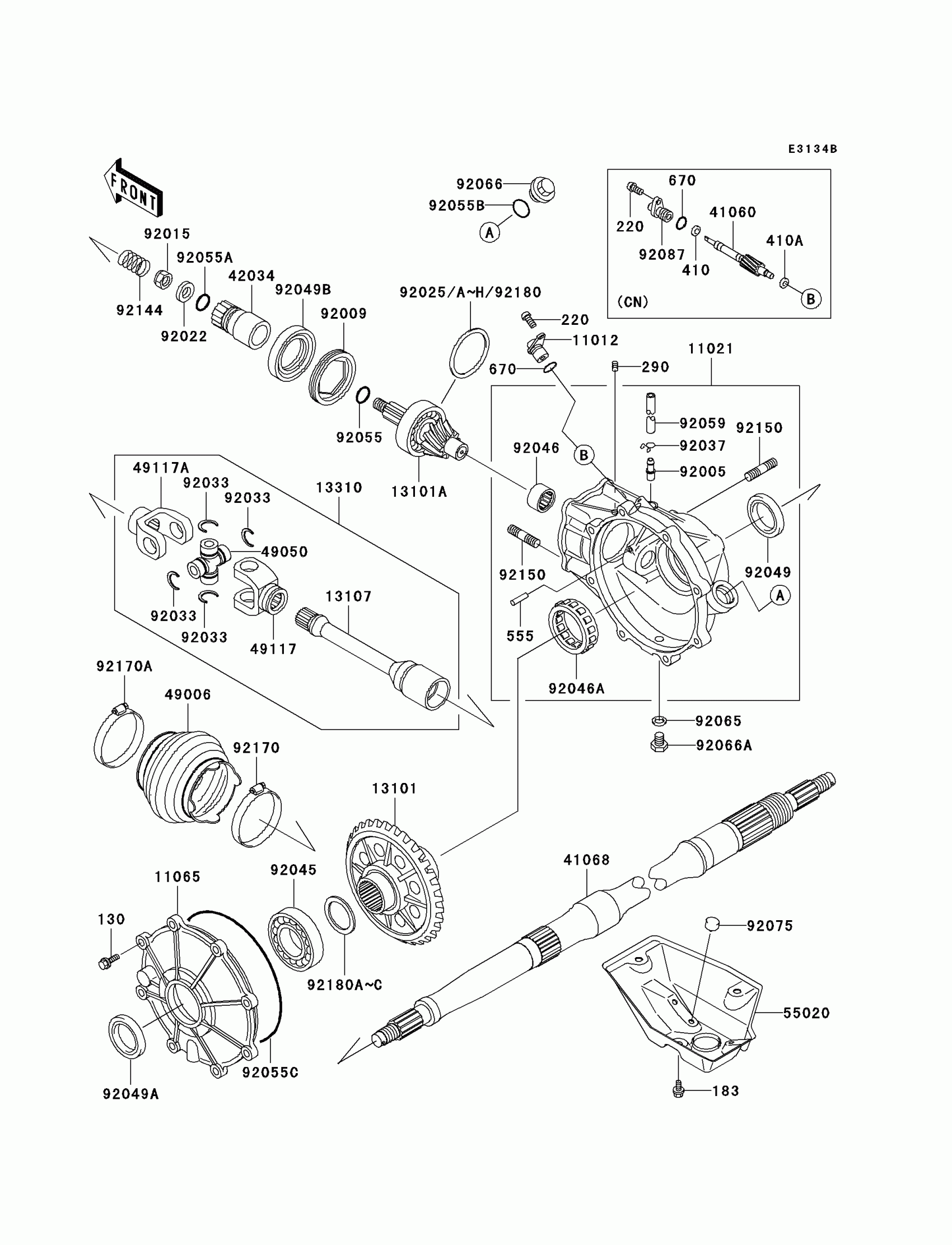

Kawasaki Prairie 400 4X4 Drive Shaft(Rear) Diagram

#

Description
Price

11021

CASE-ASSY,DRIVE SHAFT

11021-1126

$290.88

11065

CAP

11065-1103

$214.71

13101

GEAR-ASSY,BEVEL

13101-1236

Unavailable

13101A

GEAR-ASSY,BEVEL

13101-1237

$233.41

13107

SHAFT

13107-1351

Unavailable

13310

SHAFT-ASSY

13310-1016

$219.86

41068

AXLE

41068-1388

$437.72

42034

COUPLING

42034-1145

$149.34

49006

BOOT

49006-1307

$27.35

49050

SPIDER

49050-1057

$116.26

49117

YOKE,DRIVE

49117-1083

Unavailable

49117A

YOKE,DRIVE

49117-1084

Unavailable

55020

GUARD

55020-1551

Unavailable

92005

FITTING,BREATHER

92005-1127

$16.10

92009

SCREW

92009-1528

Unavailable

92015

NUT,12MM

92015-1182

$7.69

92022

WASHER,12.3X25X3.2

92022-1293

$5.75

92025

SHIM,52.5X61.5X0.15

92025-1669

Unavailable

92025A

SHIM,52.5X61.5X0.18

92025-1670

Unavailable

92025B

SHIM,52.5X61.5X0.8

92025-1671

Unavailable

92025C

SHIM,52.5X61.5X0.9

92025-1672

Unavailable

92025D

SHIM,52.5X61.5X1.0

92025-1673

Unavailable

92025E

SHIM,52.5X61.5X1.1

92025-1674

Unavailable

92025F

SHIM,52.5X61.5X1.2

92025-1675

Unavailable

92025G

SHIM,52.5X61.5X1.3

92025-1676

Unavailable

92025H

SHIM,52.5X61.5X1.4

92025-1677

Unavailable

92033

RING-SNAP

92033-1283

$7.69

92037

CLAMP,TUBE

92037-147

$5.61

92045

BEARING-BALL,#6009

92045-1015

$35.46

92046

BEARING-NEEDLE,NK20/1

92046-1183

$42.04

92046A

BEARING-NEEDLE

92046-1247

$55.13

92049

SEAL-OIL

92049-1248

$17.15

92049A

SEAL-OIL

92049-1287

$9.95

92049B

SEAL-OIL

92049-1460

$19.58

92055

RING-O

92055-012

$0.82

130

BOLT-FLANGED

130P0825

Unavailable

183

BOLT-UPSET-WS-SMALL

183H0814

$0.76

220

SCREW-PAN-CROS

220X0614

Unavailable

290

SCREW-SET-SOCKET

290Q0612

$5.37

555

PIN-SPRING

555A0422

$4.61

670

O RING,12MM

670B2012

$2.22

92055A

RING-O,27MM

92055-1119

$3.81

92055B

RING-O,25.7X2.4

92055-1136

$3.81

92055C

RING-O,154.1X2.5

92055-1410

$6.75

92059

TUBE,4.7X9.5X900

92059-1929

$8.85

92065

GASKET,10.5X16X1

92065-058

$3.03

92066

PLUG

92066-1303

$9.85

92066A

PLUG,DRAIN,10X8

92066-1490

Unavailable

92075

DAMPER

92075-021

$4.61

92144

SPRING

92144-1278

$3.95

92150

BOLT,10X22

92150-1197

$7.14

92170

CLAMP

92170-1763

$4.29

92170A

CLAMP

92170-1764

$8.62

92180

SHIM,52.5X61.5X0.10

92180-1115

Unavailable

92180A

SHIM,T=1.0

92180-1205

Unavailable

92180B

SHIM,T=0.1

92180-1206

Unavailable

92180C

SHIM,T=0.5

92180-1207

Unavailable

11012

CAP,METER GEAR

11012-1650

Unavailable

41060

GEAR-METER SCREW

41060-1157

Unavailable

410

WASHER PLAIN 5MM

410B0500

Unavailable

410A

WASHER-PLAIN-SMALL,6MM

410B0600

$1.03

92087

BUSHING-METER GEAR

92087-1057

$22.88
