1998 Kawasaki Prairie 400 4X4 Transmission Diagram

← All diagrams

Find the part on the Transmission diagram for your 1998 Kawasaki Prairie 400 4X4, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

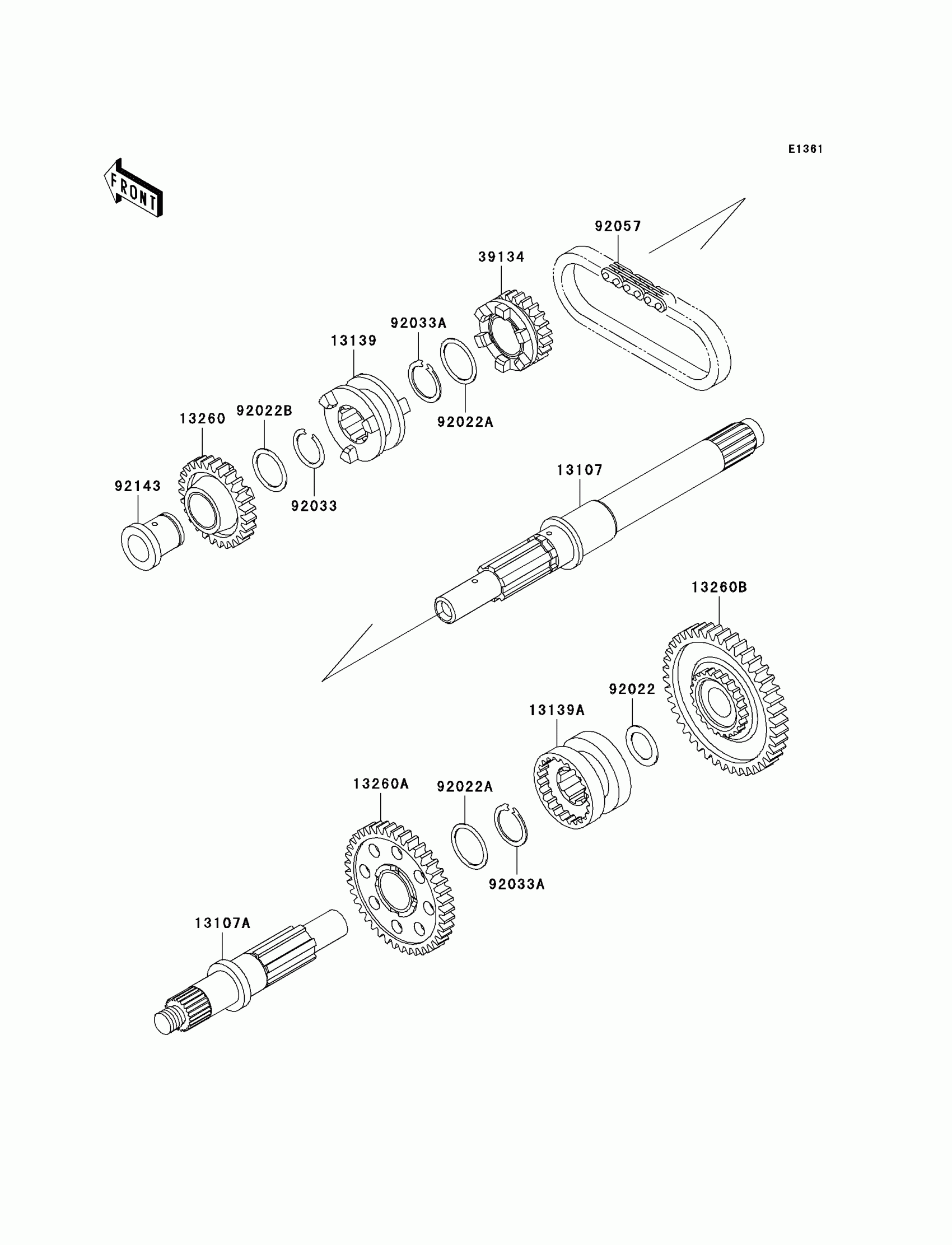

1998 Kawasaki Prairie 400 4X4 Transmission Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

13107

SHAFT,INPUT

13107-1361

1
Out of stock

13107A

SHAFT,OUTPUT

13107-1362

1
Out of stock

13139

SHIFTER,FORWARD/REVERSE

13139-1074

1
Out of stock

13139A

SHIFTER,HI/LOW

13139-1076

1
Out of stock

13260

GEAR,INPUT FORWARD,27T

13260-1638

1
Out of stock

13260A

GEAR,OUTPUT,41T

13260-1670

1
Out of stock

13260B

GEAR,OUTPUT LOW,42T

13260-1675

1
Out of stock

39134

SPROCKET-DRIVE,REVERSE,22T

39134-1058

1
Out of stock

92022

1

$7.04

In stock

92022A

WASHER,28.1X34X1.0

92022-1731

1

$7.20

In stock

92022B

WASHER,25.3X32X1

92022-1800

1

$4.42

In stock

92033

RING-SNAP,24MM

92033-026

1

$6.98

In stock

92033A

1

$3.69

In stock

92057

1

$41.54

In stock

92143

COLLAR,FORWARD GEAR

92143-1899

1
Out of stock
