2003 Kawasaki Prairie 360 Oil Cooler Diagram

← All diagrams

Find the part on the Oil Cooler diagram for your 2003 Kawasaki Prairie 360, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

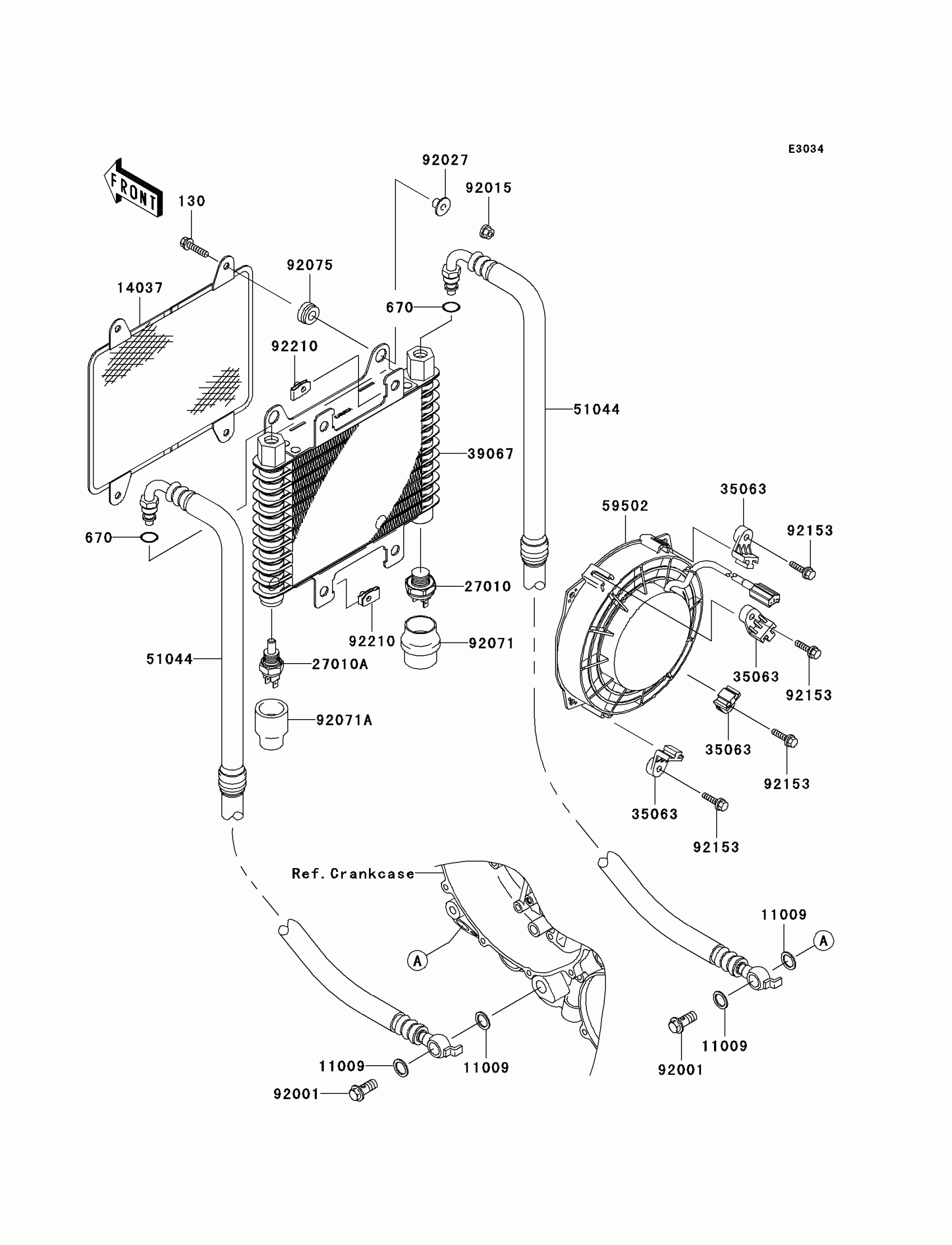

2003 Kawasaki Prairie 360 Oil Cooler Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

130

BOLT-FLANGED,6X25

130J0625

1
Out of stock

670

O RING,8MM

670D1508

1

$3.43

In stock

11009

GASKET,14X19.5X1.4

11009-1461

1

$4.23

In stock

14037

SCREEN,OIL COOLER

14037-1313

1

$28.92

In stock

27010

SWITCH

27010-1428

1

$73.83

In stock

27010A

SWITCH,OIL COOLER,LH

27010-1472

1
Out of stock

35063

STAY

35063-1212

1

$3.75

In stock

39067

COOLER-OIL

39067-1070

1

$449.67

In stock

51044

TUBE-ASSY,L=1080

51044-1227

1

$186.45

In stock

59502

FAN-ASSY

59502-1138

1

$460.25

In stock

92001

BOLT,14X28.5

92001-1930

1

$9.59

In stock

92015

NUT,FLANGED,6MM

92015-1193

1
Out of stock

92027

COLLAR

92027-1767

1

$4.37

In stock

92071

1

$10.53

In stock

92071A

1

$9.37

In stock

92075

DAMPER

92075-277

1

$2.20

In stock

92153

BOLT,6X22

92153-1087

1
Out of stock

92210

NUT

92210-1331

1
Out of stock
