2005 Kawasaki Prairie 360 Cylinder/piston Diagram

← All diagrams

Find the part on the Cylinder/piston diagram for your 2005 Kawasaki Prairie 360, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

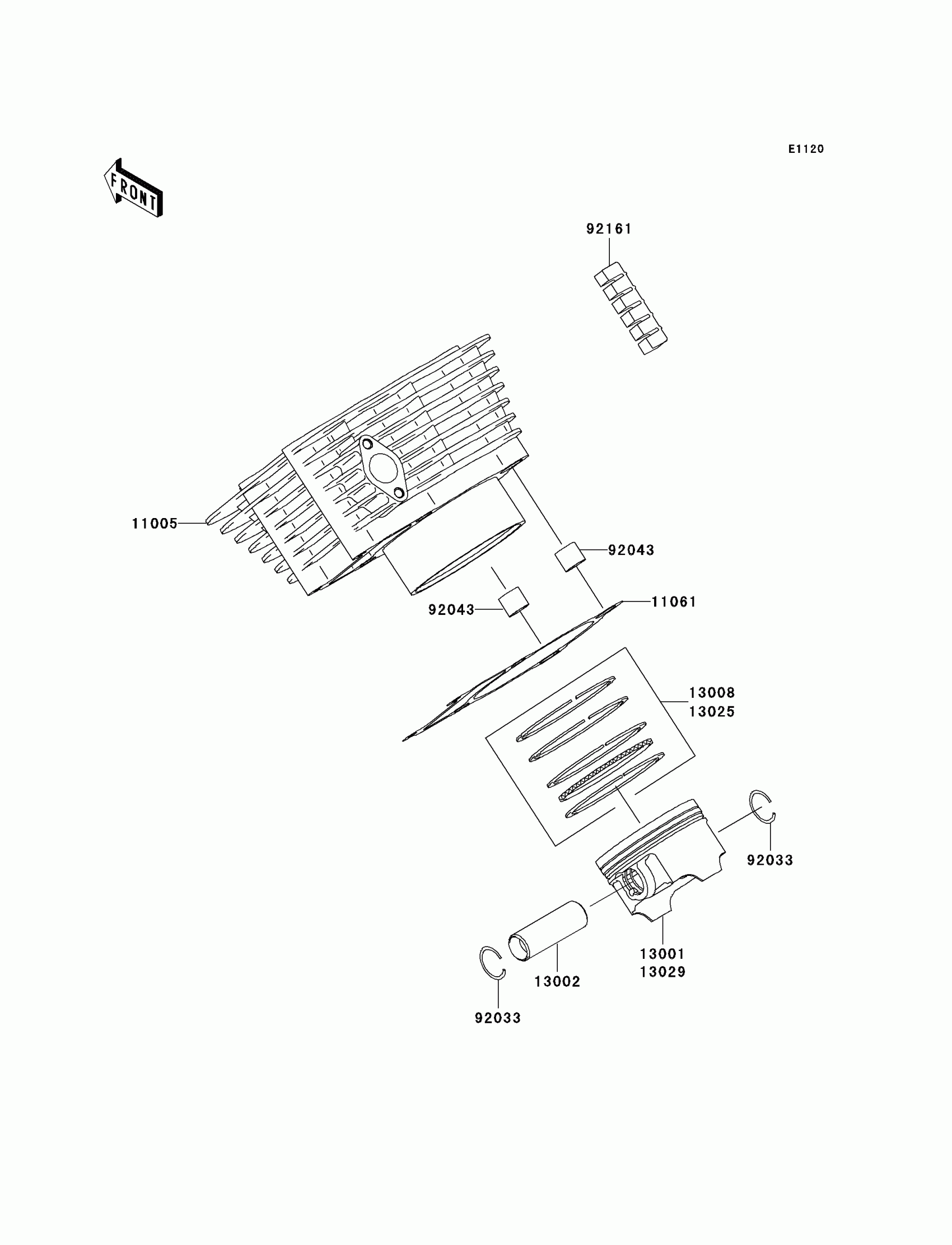

2005 Kawasaki Prairie 360 Cylinder/piston Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11005

CYLINDER-ENGINE

11005-1980

1
Out of stock

11061

GASKET,CYLINDER BASE

11061-1085

1
Out of stock

13001

PISTON-ENGINE

13001-1652

1
Out of stock

13002

PIN-PISTON

13002-1060

1
Out of stock

13008

RING-SET-PISTON

13008-1214

1
Out of stock

13025

RING-SET-PISTON L,O/S 0.50

13025-0002

1
Out of stock

13029

PISTON-ENGINE L,O/S 0.50

13029-0002

1
Out of stock

92033

RING-SNAP

92033-1207

1
Out of stock

92043

PIN,13X16X14

92043-1608

1
Out of stock

92161

DAMPER,CYLINDER

92161-1312

1
Out of stock
