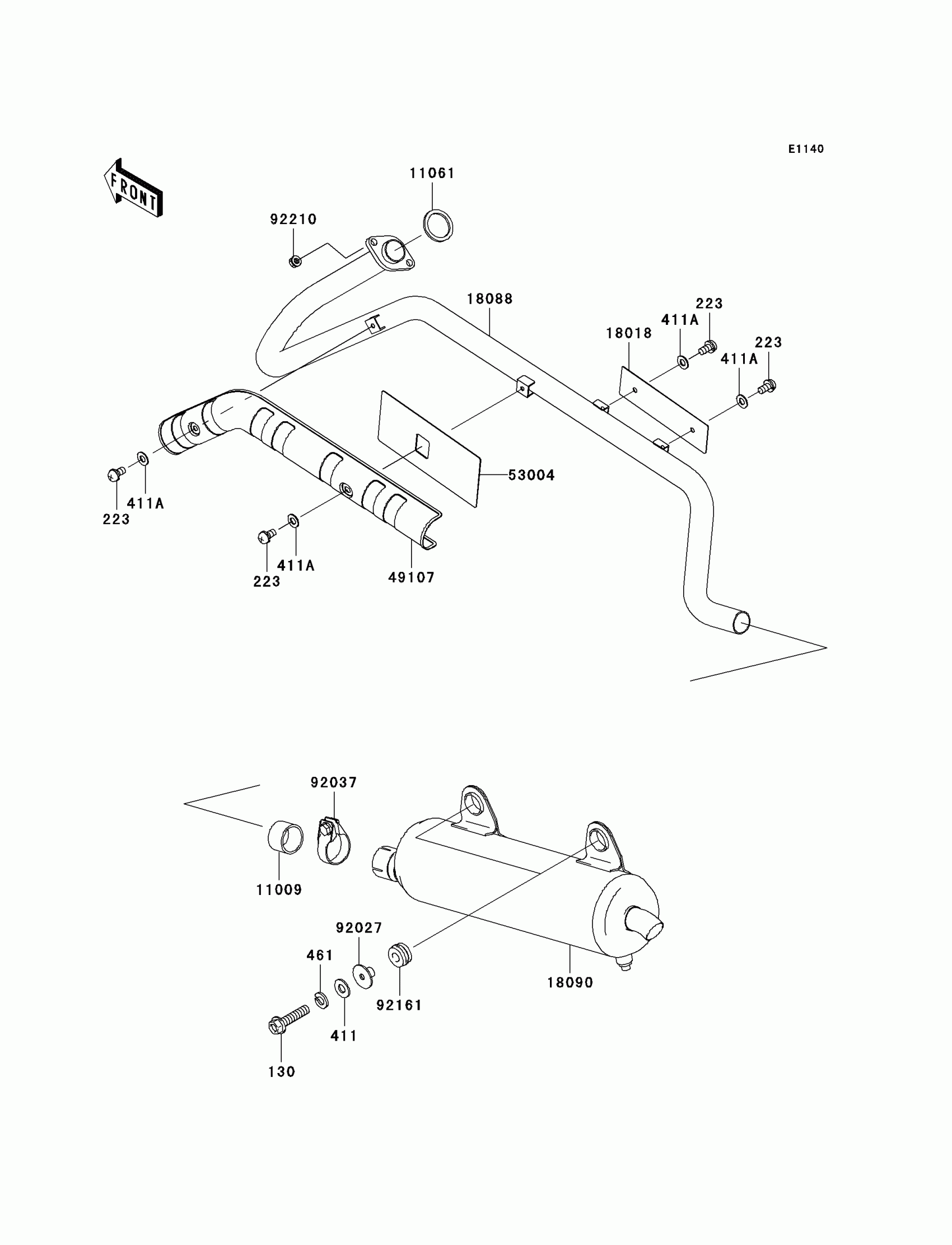

Kawasaki Prairie 360 Muffler(s) Diagram

Description

Price

130

BOLT-FLANGED,8X35

130Z0835

Unavailable

223

SCREW-PAN-WS-CROS,6X12

223C0612

Unavailable

411

WASHER PLAIN 8MM

411B0800

Unavailable

411A

WASHER PLAIN

411F0600

$0.95

461

WASHER SPRING 8MM

461F0800

Unavailable

11009

GASKET,EXHAUST PIPE CONNECTING

11009-1667

$18.50

11061

GASKET,EXHAUST

11061-1053

$8.13

18018

PLATE-HEAT GUARD,EXHAUST PIPE

18018-1135

$2.47

18088

PIPE-EXHAUST

18088-1215

$96.23

18090

BODY-COMP-MUFFLER

18090-1954

Unavailable

49107

COVER-EXHAUST PIPE

49107-1222

$46.50

53004

MAT

53004-1181

$24.37

92027

COLLAR,MUFFLER

92027-1981

$8.19

92037

CLAMP,42MM

92037-1349

$9.84

92161

DAMPER,MUFFLER

92161-1292

$9.54

92210

NUT,8MM

92210-1242

$1.73
