2010 Kawasaki Prairie® 360 4X4 Taillight Diagram

← All diagrams

Find the part on the Taillight diagram for your 2010 Kawasaki Prairie® 360 4X4, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

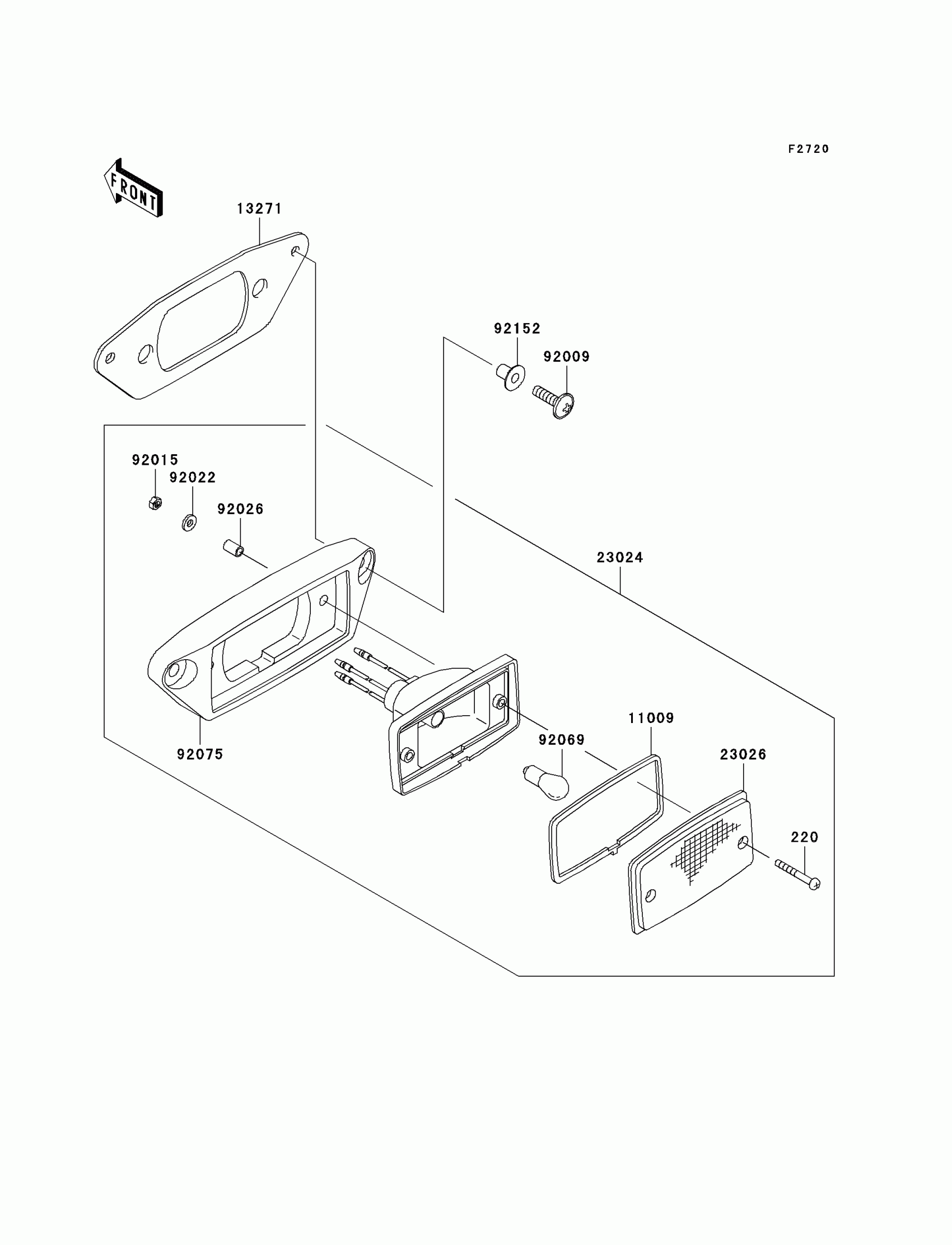

2010 Kawasaki Prairie® 360 4X4 Taillight Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

220

SCREW-PAN-CROS,4X30

220AB0430

1
Out of stock

11009

GASKET,TAIL LAMP

11009-4004

1
Out of stock

13271

PLATE,TAIL LAMP

13271-0033

1

$1.75

In stock

23024

LAMP-ASSY-TAIL

23024-0001

1
Out of stock

23026

LENS,TAIL LAMP

23026-1239

1
Out of stock

92009

SCREW,6X22,BLACK

92009-1256

1
Out of stock

92015

NUT,4MM

92015-1550

1
Out of stock

92022

WASHER,PLAIN,4MM

92022-1762

1
Out of stock

92026

SPACER,4.5X6.5X10

92026-1261

1
Out of stock

92069

BULB,12V 18/5W

92069-1089

1
Out of stock

92075

DAMPER,TAIL LAMP

92075-1782

1
Out of stock

92152

COLLAR

92152-0015

1
Out of stock
