2005 Kawasaki Prairie 360 4X4 Carrier Diagram

← All diagrams

Find the part on the Carrier diagram for your 2005 Kawasaki Prairie 360 4X4, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

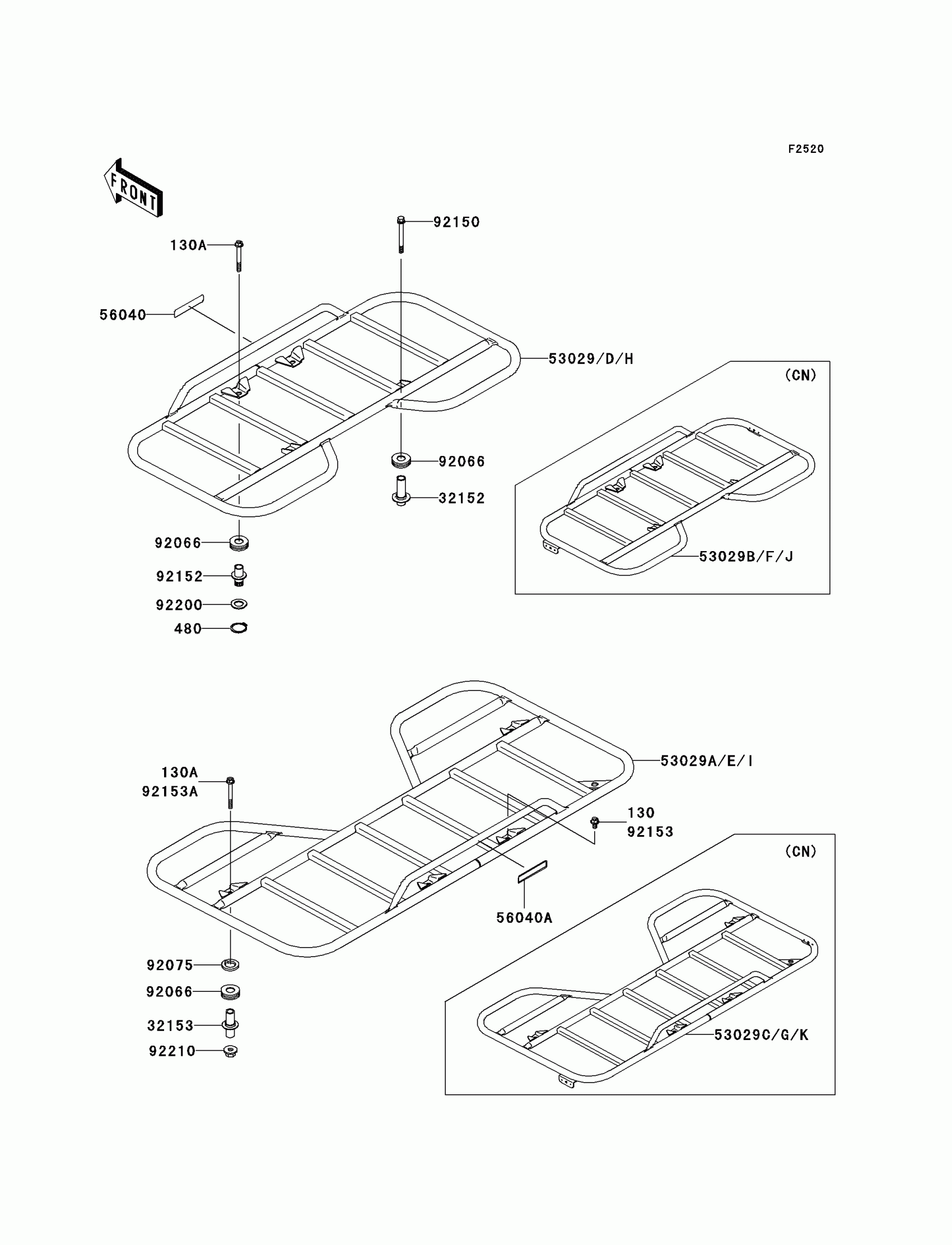

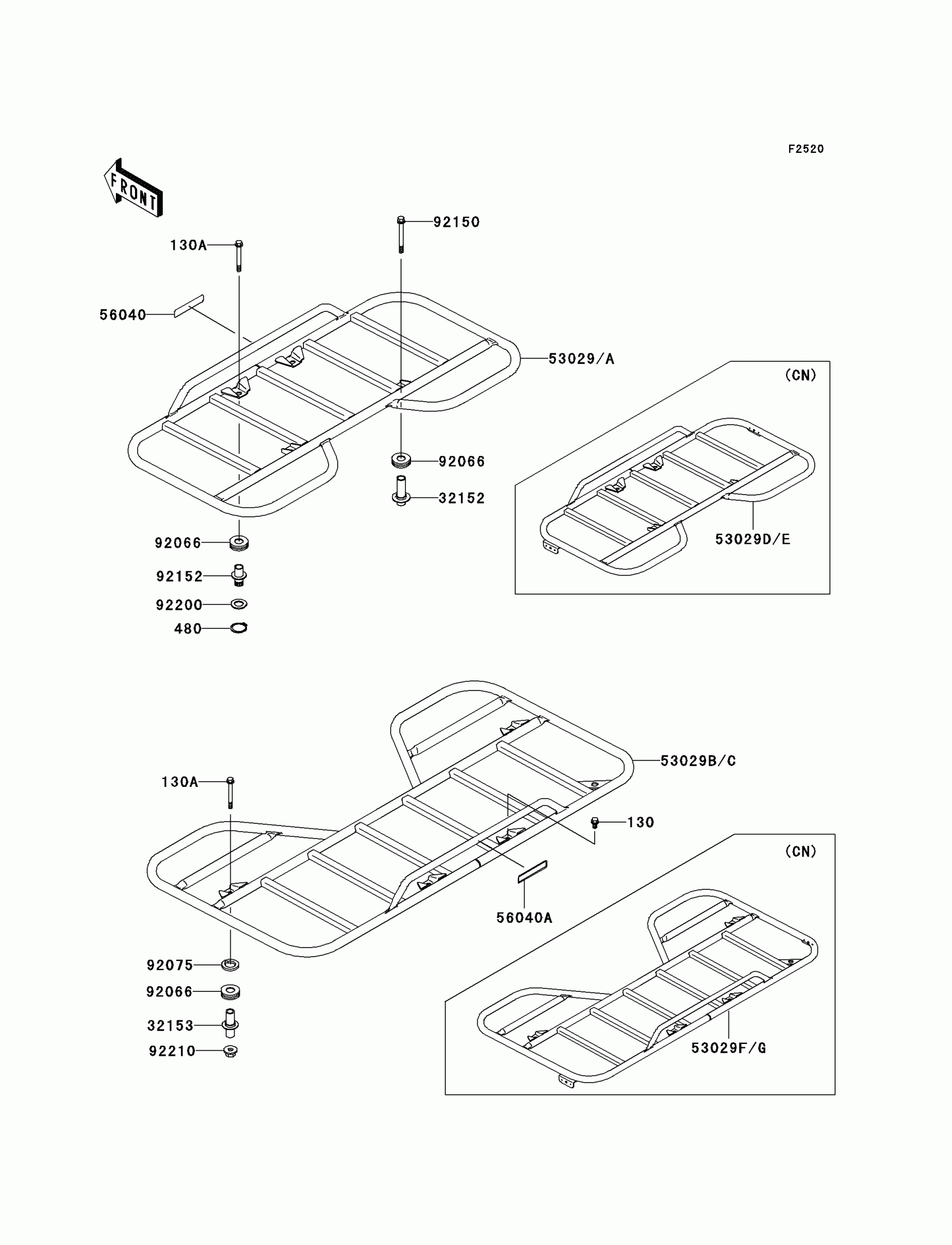

2005 Kawasaki Prairie 360 4X4 Carrier Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

130

BOLT-FLANGED,8X14

130S0814

1
Out of stock

130A

BOLT-FLANGED,8X65

130S0865

1
Out of stock

480

1

$0.64

In stock

32152

PIPE,FRONT CARRIER

32152-1067

1

$10.27

In stock

32153

PIPE

32153-7527

1

$10.88

In stock

56040

1

$3.24

In stock

56040A

1

$3.24

In stock

92066

PLUG

92066-1438

1

$4.10

In stock

92075

DAMPER

92075-1842

1

$4.61

In stock

92150

BOLT,FLANGED,8X80

92150-1808

1

$3.65

In stock

92152

COLLAR,L=42.5

92152-7504

1
Out of stock

92200

WASHER,18.5X32X2.3

92200-1043

1
Out of stock

92210

NUT,FLANGED,LOCK,8MM

92210-0005

1
Out of stock

53029A

CARRIER,FR,M.GRAYSTONE

53029-7501-379

1
Out of stock

53029C

CARRIER,RR,M.GRAYSTONE

53029-7502-379

1
Out of stock

53029E

CARRIER,FR,M.GRAYSTONE

53029-7503-379

1
Out of stock

53029G

CARRIER,RR,M.GRAYSTONE

53029-7504-379

1
Out of stock
