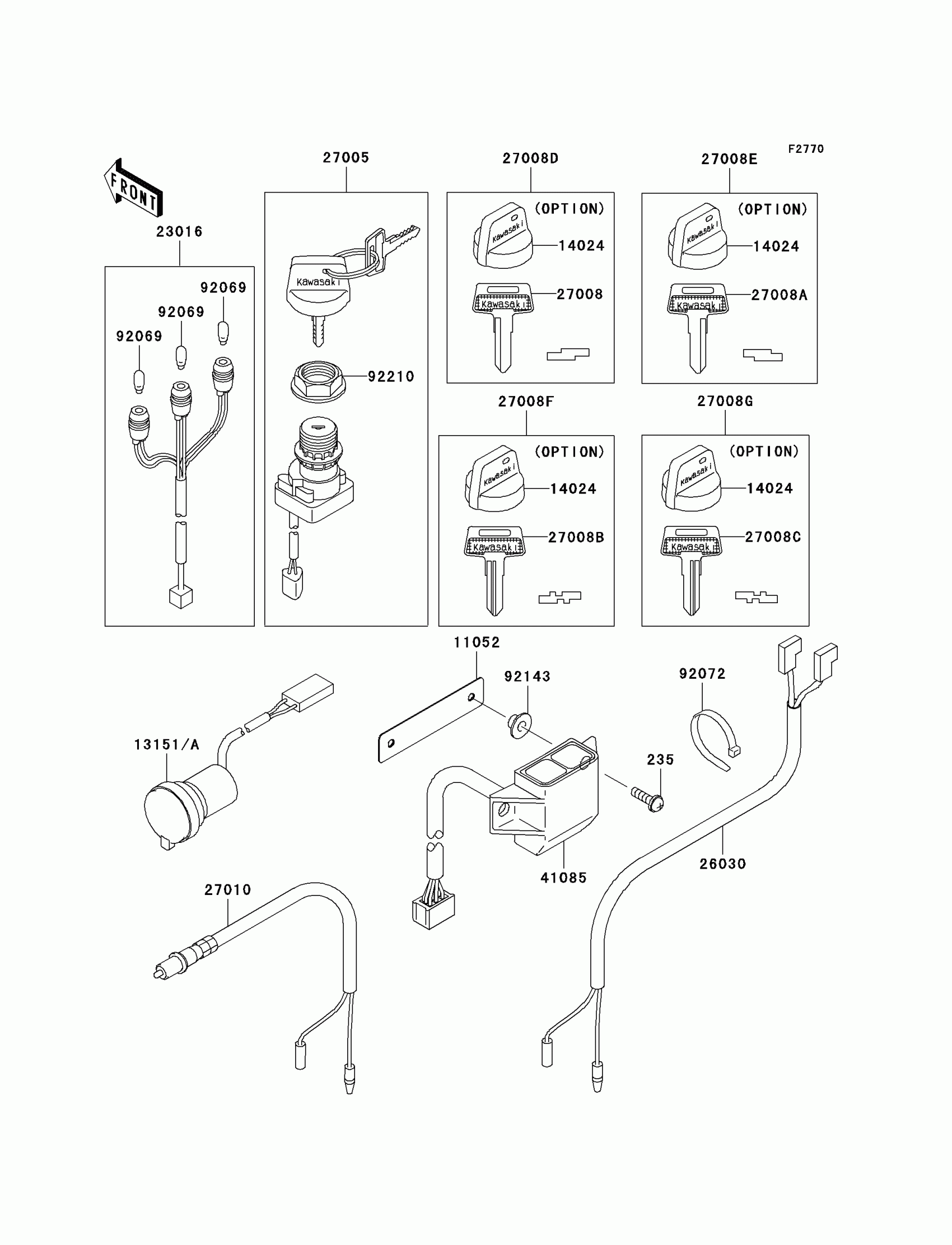

Kawasaki Prairie 360 4X4 Ignition Switch Diagram

Description

Price

235

SCREW-PAN-WP-CROS

235C0516

Unavailable

11052

BRACKET

11052-7530

$7.81

13151

SWITCH-COMP,D.C.TERMINAL

13151-0004

$137.83

14024

COVER,KEY

14024-1551

$4.72

23016

LAMP-ASSY

23016-1151

$70.59

26030

HARNESS

26030-1058

$16.59

27005

SWITCH-ASSY-IGNITION

27005-1229

$109.54

27008

KEY-LOCK,BLANK

27008-1041

$13.56

27008A

KEY-LOCK,BLANK

27008-1042

$13.56

27008B

KEY-LOCK,BLANK

27008-1043

$13.56

27008C

KEY-LOCK,BLANK

27008-1044

$16.83

27008D

KEY-LOCK,BLANK,W/COVER

27008-1132

$17.51

27008E

KEY-LOCK,BLANK,W/COVER

27008-1133

$17.51

27008F

KEY-LOCK,BLANK,W/COVER

27008-1134

$14.12

27008G

KEY-LOCK,BLANK,W/COVER

27008-1135

$14.12

27010

SWITCH,BRAKE

27010-1294

$35.85

41085

INDICATOR

41085-0003

$510.19

92069

BULB,12V 3W,T7

92069-1020

Unavailable

92072

BAND,L=149

92072-031

$3.81

92143

COLLAR

92143-1057

$3.81

92210

NUT,IGNITION SWITCH

92210-1109

$4.67
