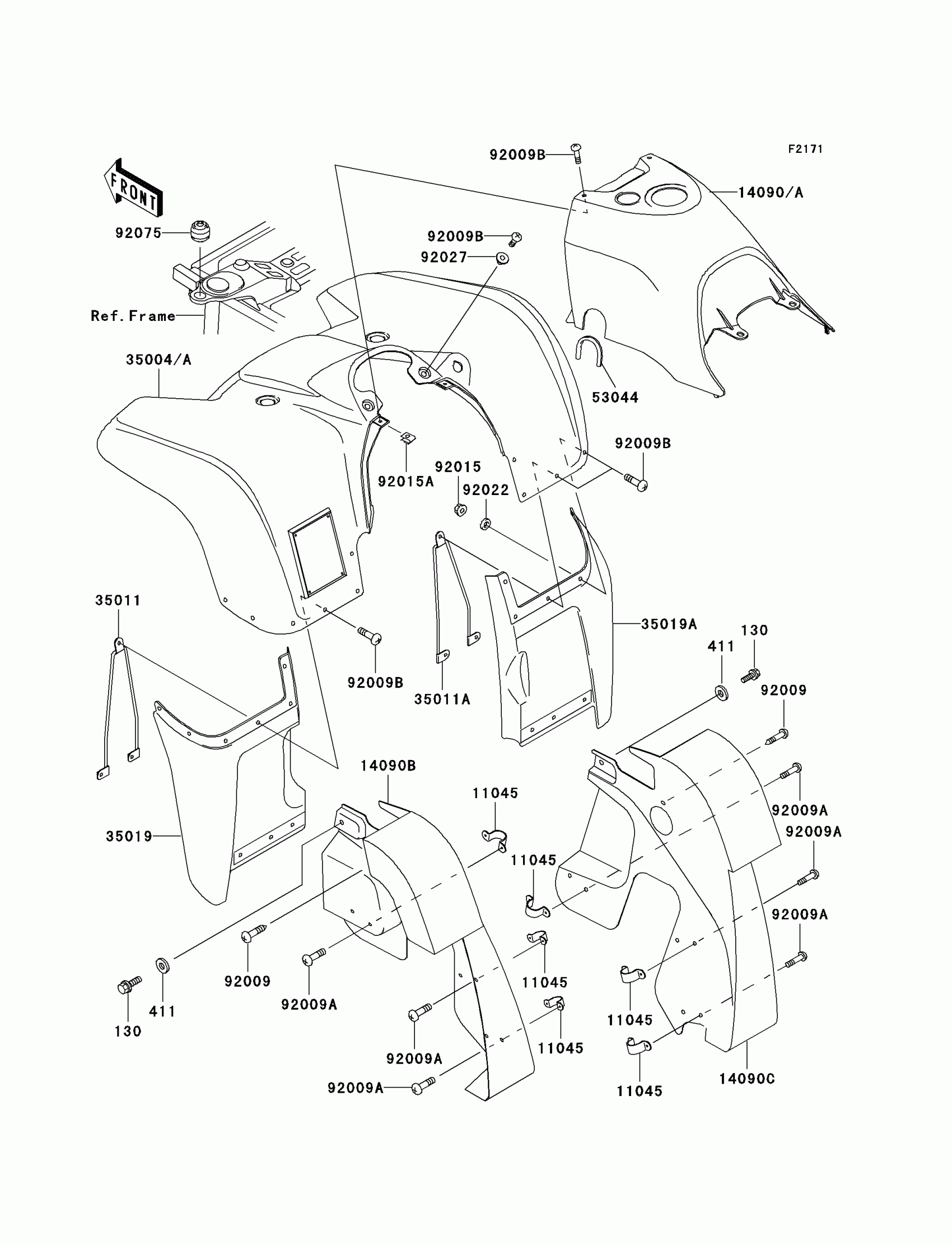

Kawasaki Prairie 300 Front Fender(s) Diagram

#

Description
Price

130

BOLT-FLANGED

130C0814

Unavailable

411

WASHER PLAIN

411F0800

Unavailable

11045

BRACKET,FENDER

11045-1882

$7.56

14090

COVER,FUEL TANK,H.GREEN

14090-1666-6A

Unavailable

14090A

COVER,FUEL TANK,F.RED

14090-1666-6L

$38.17

14090B

COVER,FRONT INNER FLAP,LH

14090-1933

$34.53

14090C

COVER,FRONT INNER FLAP,RH

14090-1934

$34.53

35004

FENDER-FRONT,H.GREEN

35004-1378-6A

$329.67

35004A

FENDER-FRONT,F.RED

35004-1378-6L

$337.19

35011

STAY,FRONT FLAP,LH

35011-1761

$32.98

35011A

STAY,FRONT FLAP,RH

35011-1784

$24.47

35019

FLAP,FR,LH,F.BLACK

35019-1338-6Z

$24.56

35019A

FLAP,FR,RH,F.BLACK

35019-1339-6Z

$24.56

53044

TRIM,L=150

53044-1303

$3.92

92009

SCREW,TAPPING,6X16

92009-1166

$4.18

92009A

SCREW,TAPPING,5X10

92009-1332

$2.99

92009B

SCREW,6X16

92009-1621

Unavailable

92015

NUT,LOCK,FLANGED,6MM

92015-1675

$3.29

92015A

NUT,CLAMP,6MM

92015-1678

$4.18

92022

WASHER,6.5X16X1.0

92022-1093

$1.49

92027

COLLAR,L=4.7

92027-1964

$5.61

92075

DAMPER

92075-1744

$8.63
