2002 Kawasaki Prairie 300 Converter Cover Diagram

← All diagrams

Find the part on the Converter Cover diagram for your 2002 Kawasaki Prairie 300, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

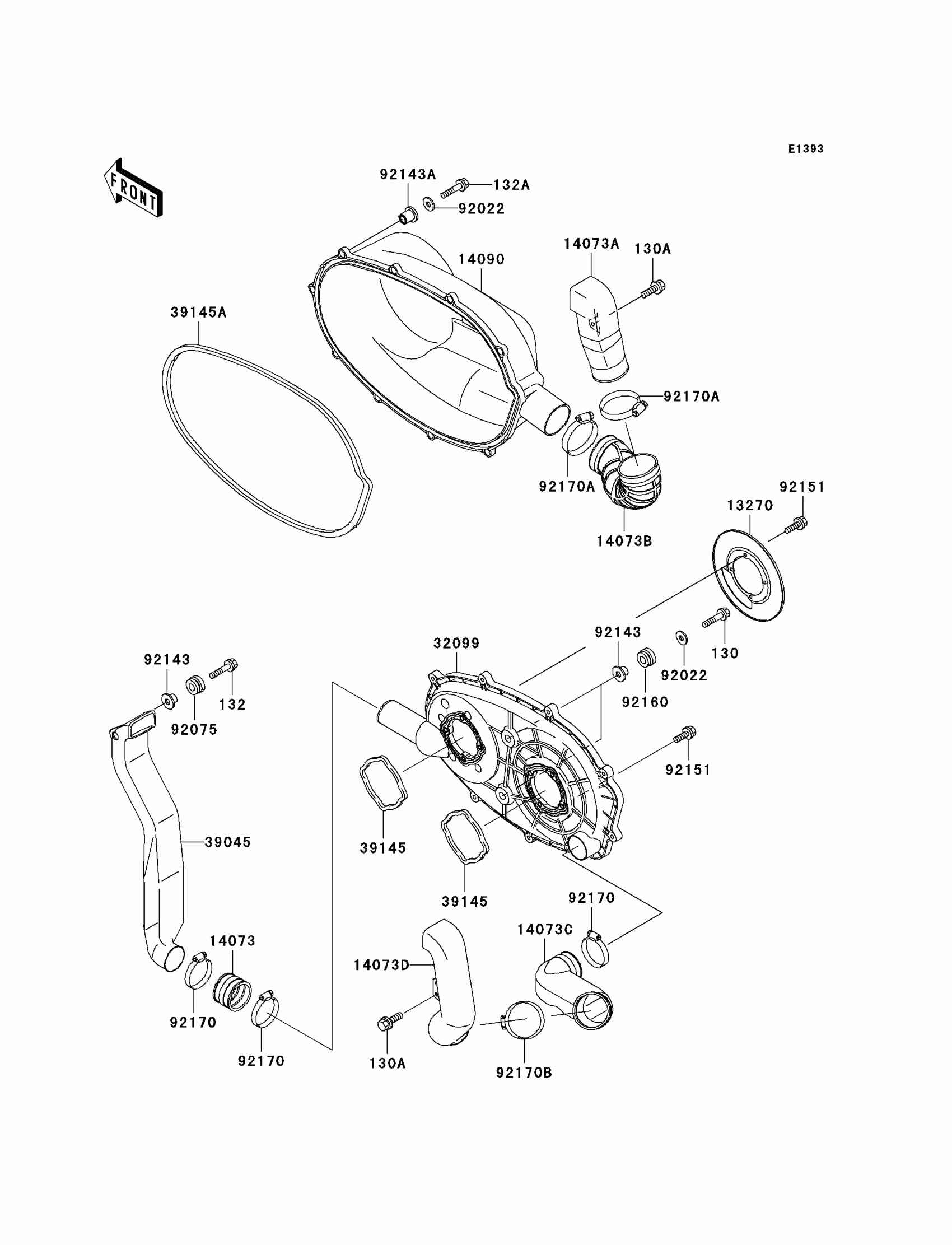

2002 Kawasaki Prairie 300 Converter Cover Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

130

BOLT-FLANGED,6X22

130B0622

1
Out of stock

130A

BOLT-FLANGED,6X12

130J0612

1
Out of stock

132

BOLT-FLANGED-SMALL

132G0625

1
Out of stock

132A

BOLT-FLANGED-SMALL,6X30

132J0630

1
Out of stock

13270

PLATE

13270-1989

1

$8.03

In stock

14073

DUCT

14073-1324

1

$8.45

In stock

14073A

DUCT,SNORKEL,EX

14073-1678

1

$13.36

In stock

14073B

DUCT,SNORKEL,EX

14073-1680

1

$24.97

In stock

14073C

DUCT,SNORKEL,EX

14073-1683

1

$48.91

In stock

14073D

DUCT,SNORKEL,EX

14073-1684

1

$21.88

In stock

14090

COVER,BELT CONVERTER

14090-1917

1
Out of stock

32099

CASE,BELT CONVERTER

32099-1191

1
Out of stock

39045

DUCT-ASSY

39045-1061

1

$34.56

In stock

39145

TRIM-SEAL

39145-1110

1

$9.44

In stock

39145A

TRIM-SEAL,CONVERTER COVER

39145-1113

1
Out of stock

92022

WASHER,7X18X1.2

92022-1545

1
Out of stock

92075

DAMPER,RUBBER

92075-1123

1
Out of stock

92143

COLLAR

92143-1353

1
Out of stock

92143A

COLLAR

92143-1888

1
Out of stock

92151

BOLT,6X18

92151-1353

1
Out of stock

92160

DAMPER,10X20X12

92160-1167

1
Out of stock

92170

CLAMP

92170-1674

1

$9.32

In stock

92170A

CLAMP

92170-1763

1

$4.51

In stock

92170B

CLAMP

92170-1764

1

$9.09

In stock
