2002 Kawasaki Prairie 300 Frame Fittings Diagram

← All diagrams

Find the part on the Frame Fittings diagram for your 2002 Kawasaki Prairie 300, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

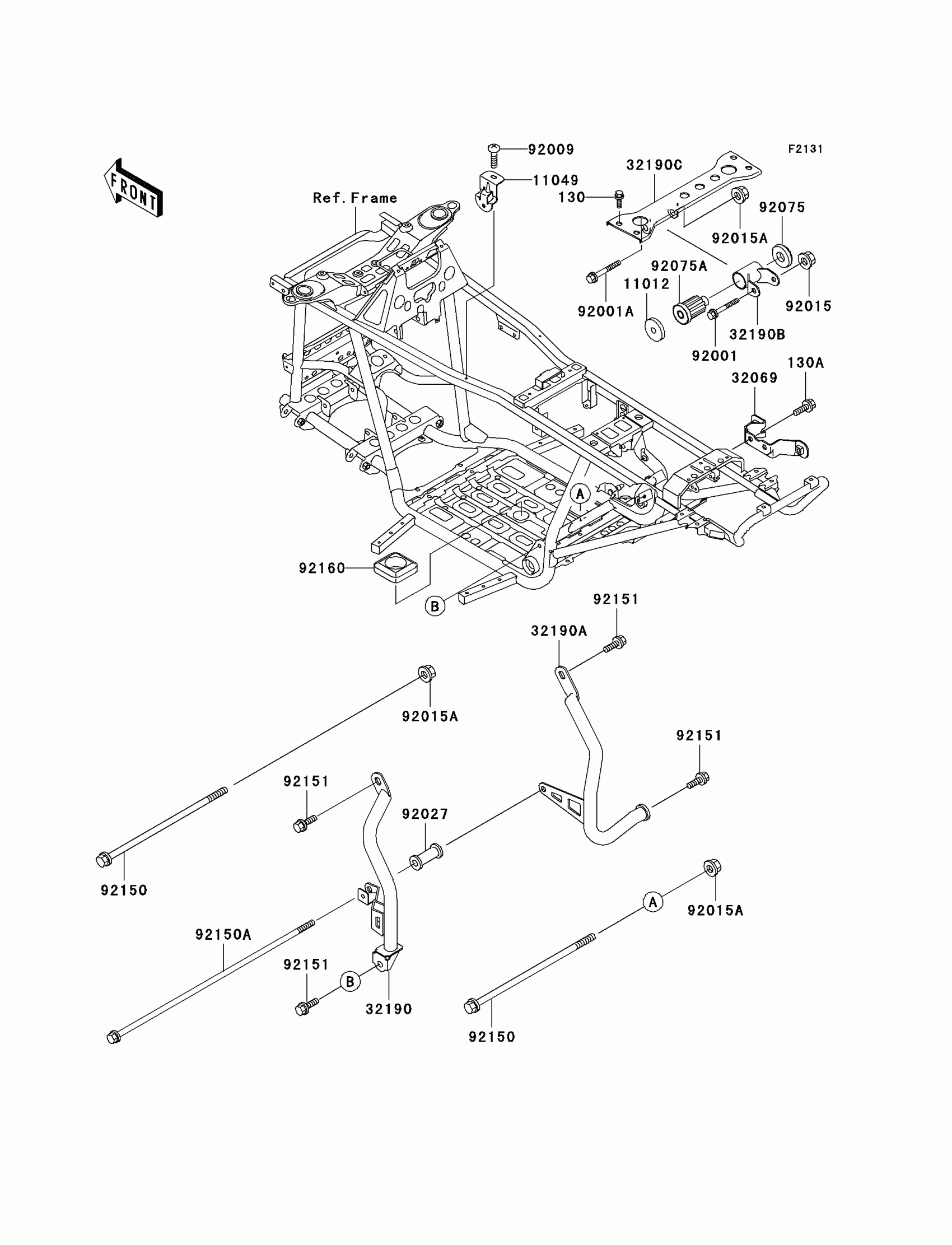

2002 Kawasaki Prairie 300 Frame Fittings Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

130

BOLT-FLANGED,8X12

130J0812

1
Out of stock

130A

BOLT-FLANGED,8X14

130J0814

1
Out of stock

11012

CAP,ENGINE BRACKET

11012-1228

1
Out of stock

11049

BRACKET

11049-1738

1
Out of stock

32069

BRACKET-MUFFLER

32069-1547

1
Out of stock

32190

BRACKET-ENGINE,LH

32190-1130

1
Out of stock

32190A

BRACKET-ENGINE,RH

32190-1132

1
Out of stock

32190B

BRACKET-ENGINE

32190-1141

1
Out of stock

32190C

BRACKET-ENGINE

32190-1181

1
Out of stock

92001

BOLT,FLANGED,8X60,BLACK

92001-1615

1
Out of stock

92001A

BOLT,FLANGED,10X80

92001-1709

1
Out of stock

92009

SCREW,TAPPING,6X16

92009-1166

1
Out of stock

92015

NUT,LOCK,FLANGED,8MM

92015-1397

1
Out of stock

92015A

NUT,FLANGED,10MM

92015-1727

1
Out of stock

92027

COLLAR,L=54

92027-275

1
Out of stock

92075

DAMPER,ENGINE MOUNT,SIDE

92075-1274

1
Out of stock

92075A

DAMPER,ENGINE MOUNT,MAIN

92075-1377

1
Out of stock

92150

BOLT,FLANGED,10X150

92150-1686

1
Out of stock

92150A

BOLT,FLANGED,10X205

92150-1899

1
Out of stock

92151

BOLT,FLANGED,10X16

92151-1137

1
Out of stock

92160

DAMPER

92160-1772

1
Out of stock
