1976 Yamaha PR440 Shifter Diagram

← All diagrams

Find the part on the Shifter diagram for your 1976 Yamaha PR440, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

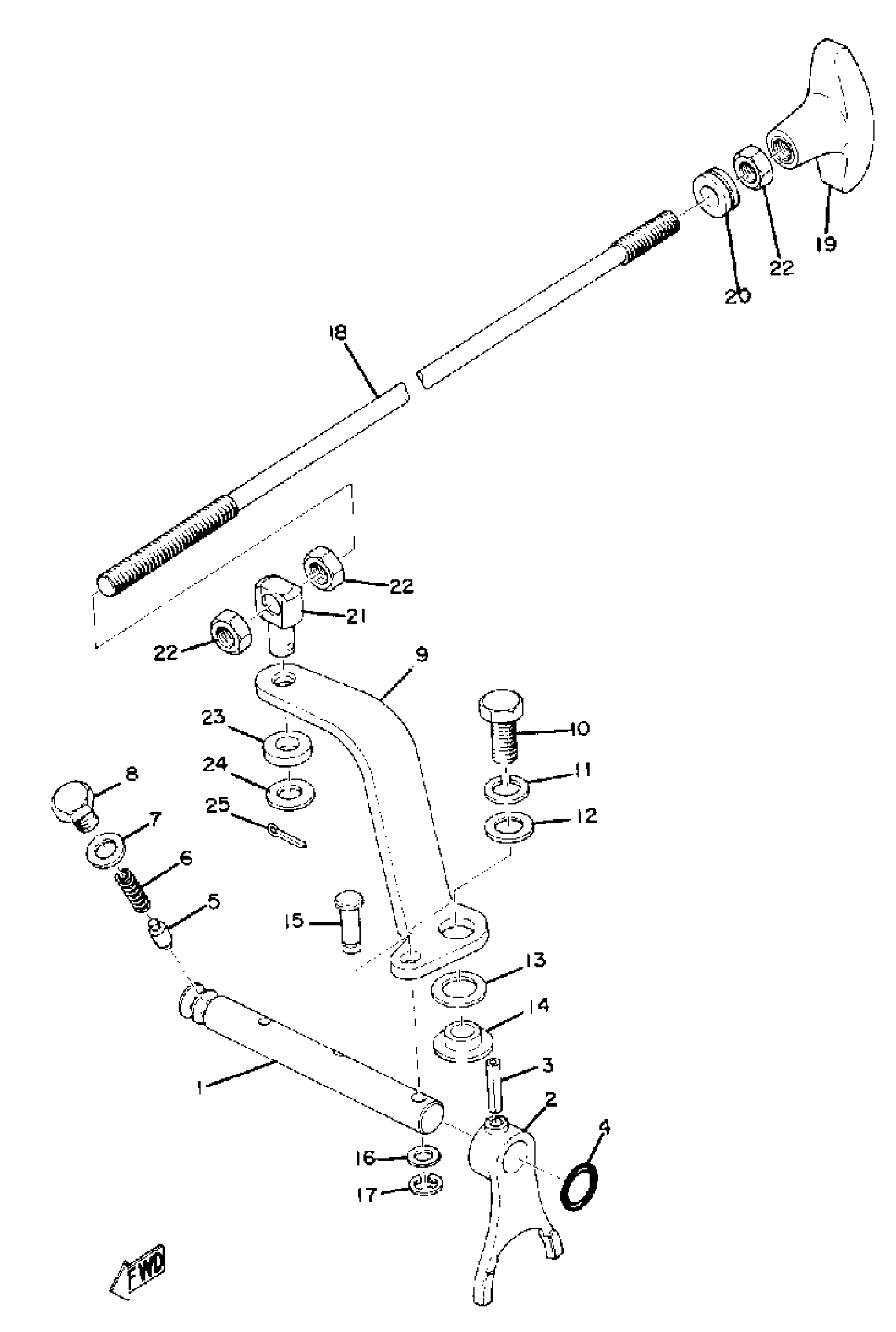

1976 Yamaha PR440 Shifter Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

BAR, SHIF FRK GDE 1

(874-18531-00-00)

1
Out of stock

2

FORK, SHIFT 1

826-18511-01-00

1
Out of stock

3

PIN, SPRING

91690-40020-00

1

$3.30

In stock

4

O-RING (137)

93210-12014-00

1

$5.92

In stock

5

PIN, SPEC''L SHAPE

90249-07004-00

1
Out of stock

6

—

$2.37

In stock

7

GASKET

90430-08023-00

1
Out of stock

8

BOLT(8X2)

90101-08344-00

—

$1.12

In stock

9

LEVER

(863-18198-00-00)

1
Out of stock

10

BOLT(JA9)

90101-08691-00

1

$4.65

In stock

11

YBS67-8 WASHER, SPRING

92990-08100-00

1

$4.52

In stock

12

WASHER, WAVE (17W)

90206-12074-00

1

$6.98

In stock

13

SPACER

(90560-08065-00)

1
Out of stock

14

SPACER

90560-08067-00

1
Out of stock

15

PIN, SPEC''L SHAPE

(90249-06019-00)

1
Out of stock

16

YBS66-6 WASHER, PLAIN

92990-06200-00

—

$0.78

In stock

17

CIRCLIP(22K)

99080-05600-00

—

$6.17

In stock

18

ROD, SHIFT

874-18115-00-00

1
Out of stock

19

KNOB, CHANGE

874-18199-00-00

1
Out of stock

20

GROMMET (2T4)

90480-12237-00

—

$1.95

In stock

21

PIN, SPEC''L SHAPE

90249-07011-00

1
Out of stock

22

. NUT

95380-08700-00

1

$3.07

In stock

23

WASHER, PLATE

(90202-08018-00)

1
Out of stock

24

.. WASHER, PLATE

92990-08600-00

1

$2.36

In stock

25

PIN, COTTER

91490-25020-00

—

$2.94

In stock
