1976 Yamaha PR440 Rear Axle - Wheel Diagram

← All diagrams

Find the part on the Rear Axle - Wheel diagram for your 1976 Yamaha PR440, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

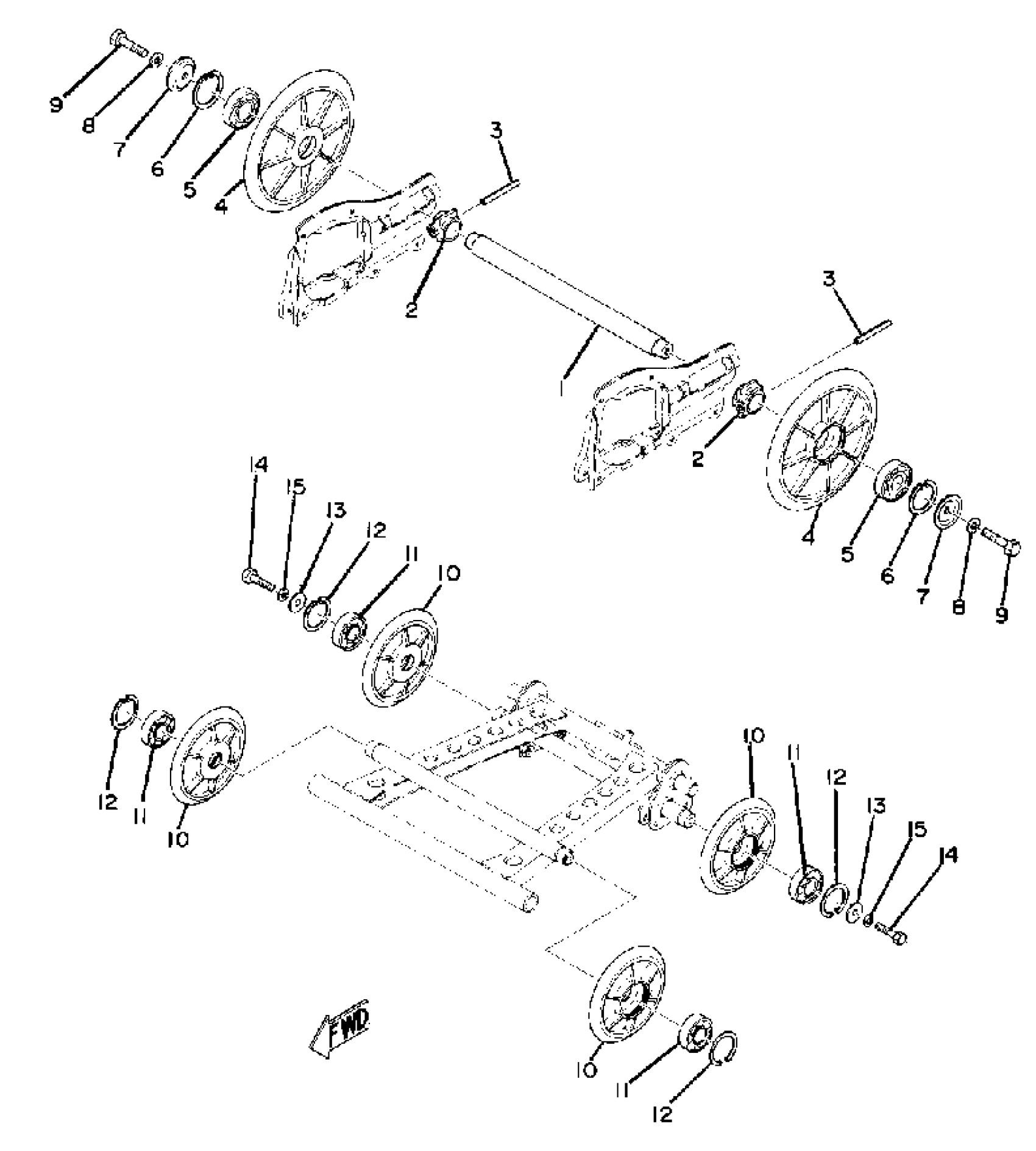

1976 Yamaha PR440 Rear Axle - Wheel Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

AXLE, REAR

(885-47521-01-00)

1
Out of stock

2

COLLAR 3

885-47479-00-00

1
Out of stock

3

PIN, SPRING (663)

91690-40040-00

1
Out of stock

4

WHEEL GUIDE COMP.

8L4-47530-00-00

1
Out of stock

5

BRG,R-B 62042RS 47MM 110G KY

93306-20417-00

1
Out of stock

6

CIRCLIP(48Y)

99009-47500-00

1
Out of stock

7

WASHER, SPEC''L SHAP

90209-08124-00

1
Out of stock

8

YBS67-8 WASHER, SPRING

92990-08100-00

1
Out of stock

9

BOLT (682)

97013-08025-00

1
Out of stock

10

SUSPENSION WHEEL COMP

885-47320-01-00

1
Out of stock

11

BEARING(8AB)

93306-00444-00

1
Out of stock

12

CIRCLIP(5U8)

99009-42500-00

1
Out of stock

13

WASHER, SPEC''L SHAP

90209-06137-00

1
Out of stock

14

BOLT, HEXAGON

97017-06020-00

1
Out of stock

15

WASHER, SPRING

92995-06100-00

1
Out of stock
