1976 Yamaha PR440 Pump Drive Gear Diagram

← All diagrams

Find the part on the Pump Drive Gear diagram for your 1976 Yamaha PR440, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

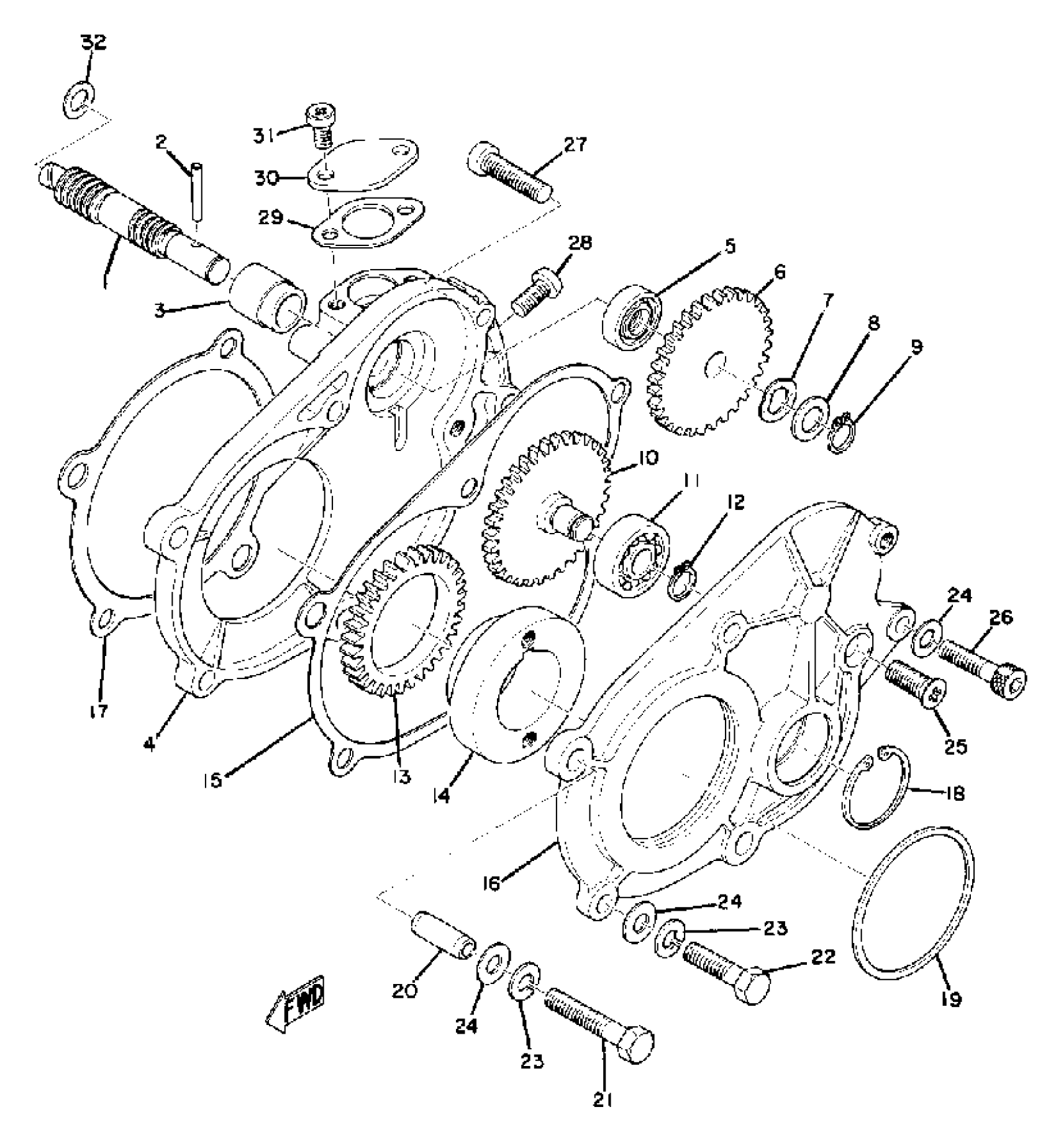

1976 Yamaha PR440 Pump Drive Gear Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SHAFT, WORM

866-13175-00-00

—

$28.00

In stock

2

PIN,DOWEL (137)

93603-22028-00

1
Out of stock

3

METAL, WORM SHAFT OUTER

821-13176-00-00

1

$6.33

In stock

4

COVER, OIL PUMP

(8E3-15416-00-00)

1
Out of stock

5

OIL SEAL (J10)

93101-10090-00

1

$6.17

In stock

6

GEAR, DRIVE 2

821-13188-00-00

—

$26.03

In stock

7

WASHER, WAVE (137)

90206-11016-00

—

$12.72

In stock

8

PLATE, CAM THRUST

137-13148-00-00

—

$3.28

In stock

9

CIRCLIP(10W)

99009-10400-00

1

$3.91

In stock

10

GEAR, IDLE

(821-13179-00-00)

1
Out of stock

11

—

$29.35

In stock

12

CIRCLIP(10W)

99009-10400-00

1

$3.91

In stock

13

GEAR, PUMP DRIVE

821-13178-00-00

1
Out of stock

14

COLLAR, DISTANCE

(868-16136-00-00)

1
Out of stock

15

GASKET 2

859-15466-09-00

1
Out of stock

16

COVER, OIL PUMP R

838-15426-00-00

1
Out of stock

17

GSKT,O PMPCVR

838-15456-09-00

1
Out of stock

18

CIRCLIP, R-TYPE (R-26)

93420-26024-00

1
Out of stock

19

SEAL, GREASE

(838-13119-00-00)

1
Out of stock

20

PIN, DOWEL

91810-18022-00

1
Out of stock

21

BOLT(3RV)

97014-06035-00

—

$1.54

In stock

22

BOLT, HEXAGON

97017-06025-00

—

$2.98

In stock

23

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

24

YBS66-6 WASHER, PLAIN

92990-06200-00

—

$0.78

In stock

25

SCREW, FLAT

98707-06014-00

—
Out of stock

26

BOLT,SOCKET

91317-06025-00

—

$2.05

In stock

27

SCREW, PAN HEAD (76T)

98517-06025-00

—

$3.12

In stock

28

SCREW, PAN HEAD(62J)

97885-06012-00

1

$2.90

In stock

29

GASKET

821-17818-02-00

—

$5.66

In stock

30

CAP, HOUSING

824-17819-00-00

1
Out of stock

31

SCREW, PAN HEAD(62X)

97885-05010-00

1

$2.65

In stock

32

WASHER, PLATE (1E7)

90201-08624-00

—
Out of stock
