1976 Yamaha PR440 Intake Diagram

← All diagrams

Find the part on the Intake diagram for your 1976 Yamaha PR440, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

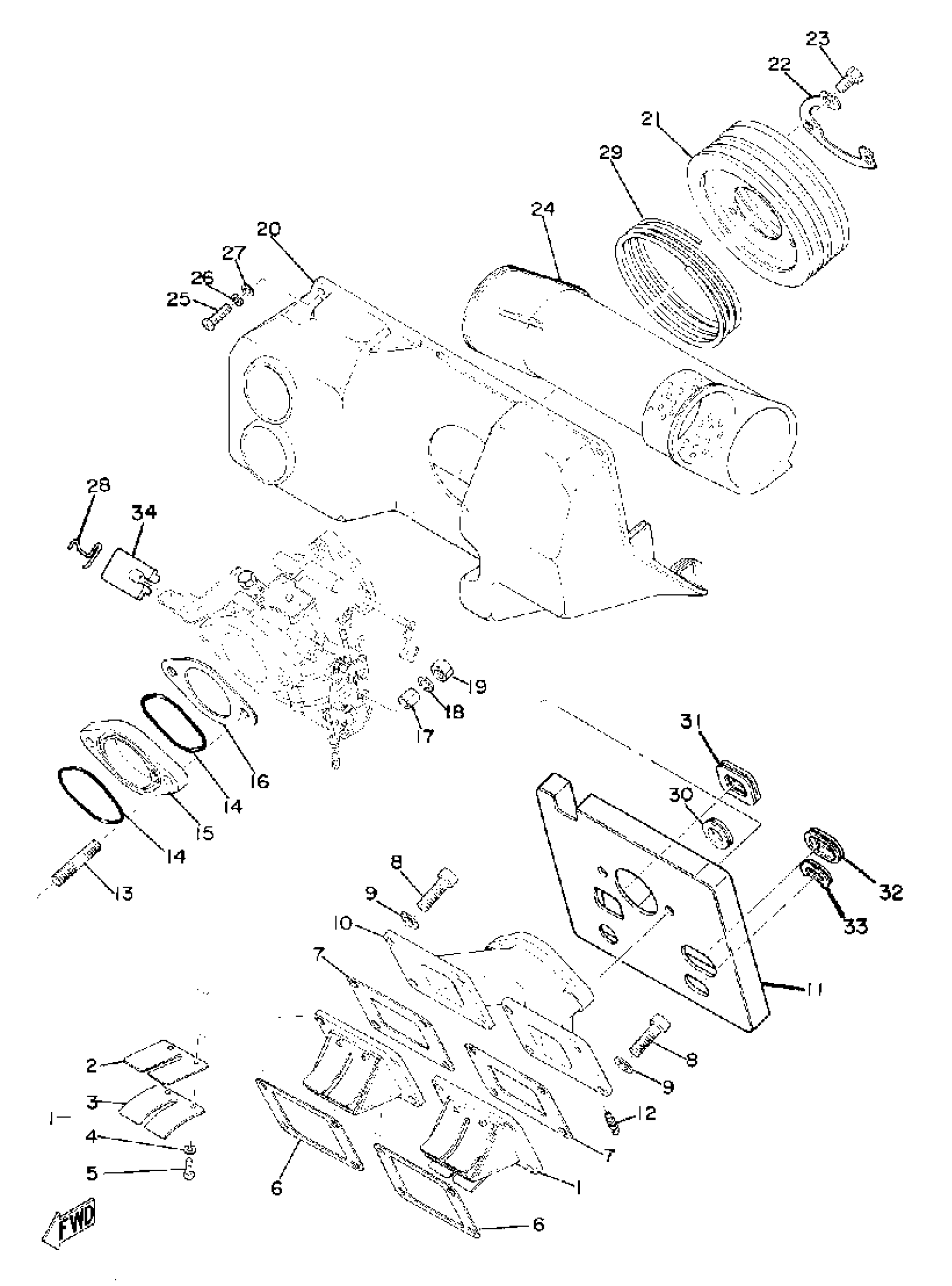

1976 Yamaha PR440 Intake Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

REED VALVE ASSY

10V-13610-01-00

1

$137.01

In stock

2

REED VALVE 1

10V-13613-01-00

1

$25.35

In stock

3

. STOPPER, REED VALVE (10V-12616-01-00)

1UA-13616-00-00

1
Out of stock

4

WASHER, SPRING

92990-03100-00

1

$6.17

In stock

5

SCREW, PAN HEAD (J10)

98580-03008-00

1

$2.23

In stock

6

GASKET, VALVE SEAT

3TT-13621-00-00

1

$17.31

In stock

7

GASKET

866-13563-09-00

1
Out of stock

8

BOLT,SOCKET

91317-06020-00

—

$2.11

In stock

9

WASHER, PLAIN (646)

92990-06600-00

1

$2.48

In stock

10

JOINT, CARBURETOR

(885-13565-00-00)

1
Out of stock

11

GASKET

8A1-13567-01-00

1
Out of stock

12

NOZZLE

824-13552-00-00

1
Out of stock

13

BOLT, STUD

(90116-08051-00)

1
Out of stock

14

O-RING

93210-53291-00

1
Out of stock

15

JOINT, CARBURETOR

8A0-13565-00-00

1
Out of stock

16

GASKET

810-13566-09-00

1
Out of stock

17

SPACER

(810-13576-00-00)

1
Out of stock

18

YBS67-8 WASHER, SPRING

92990-08100-00

—

$4.52

In stock

19

. NUT

95380-08700-00

1

$3.07

In stock

20

SILENCER, INTAKE 1

(8A1-14431-00-00)

1
Out of stock

21

PLATE

(8A1-14477-00-00)

1
Out of stock

22

WASHER

865-14475-01-00

1
Out of stock

23

BOLT (661)

97013-06012-00

—

$4.71

In stock

24

PIPE

(8A1-14419-00-00)

1
Out of stock

25

SCREW, PAN HEAD

90157-05M19-00

1

$3.62

In stock

26

YBS67-5 WASHER, SPRING

92990-05100-00

—
Out of stock

27

. WASHER, PLAIN

92990-05200-00

1

$5.08

In stock

28

CLAMP, THROTTLE

822-41222-00-00

1
Out of stock

29

SPRING, COMPRESSION

(90501-30363-00)

1
Out of stock

30

GROMMET

(102-82598-00-00)

1
Out of stock

31

GROMMET

(90891-50005-00)

1
Out of stock

32

GROMMET

(90891-50006-00)

1
Out of stock

33

GROMMET

(90480-01210-00)

1
Out of stock

34

SEAL

(8E4-14452-00-00)

1
Out of stock
