Description

Price

1

AXLE,FR,L=259

41068-1072

$89.53

2

COLLAR,FRONT AXLE

41069-031

$32.52

3

COLLAR,L=30

92027-1225

$16.49

4

WHEEL-ASSY,FR,SOLID,B

41073-1202-21

$1,043.29

4

WHEEL-ASSY,FR,SOLID,B

41073-1202-21

$1,043.29

5

RECEIVER-SPEEDOMETER

41064-1006

$11.81

6

BEARING BALL #6302Z

601B6302Z

$25.71

7

COLLAR,FR HUB,L=80

92027-1437

$34.54

8

RING-SNAP,42MM

92033-1041

$4.88

9

SEAL-OIL,BJN22425

92049-1058

$7.72

10

CASE-ASSY-METER GEAR

41078-1013

Unavailable

11

GEAR-METER SCREW,26T

41059-026

$43.35

12

GEAR-METER SCREW,9T

41060-1016

Unavailable

13

WASHER,5.1X9X0.4

41063-001

$4.17

14

PIN,SPRING

41082-001

$3.53

15

WASHER,5.1X9X0.4

41063-001

$4.17

16

SEAL-OIL,BJN30427-C3

92049-1057

$7.38

17

BUSHING-METER GEAR

92087-1002

$22.34

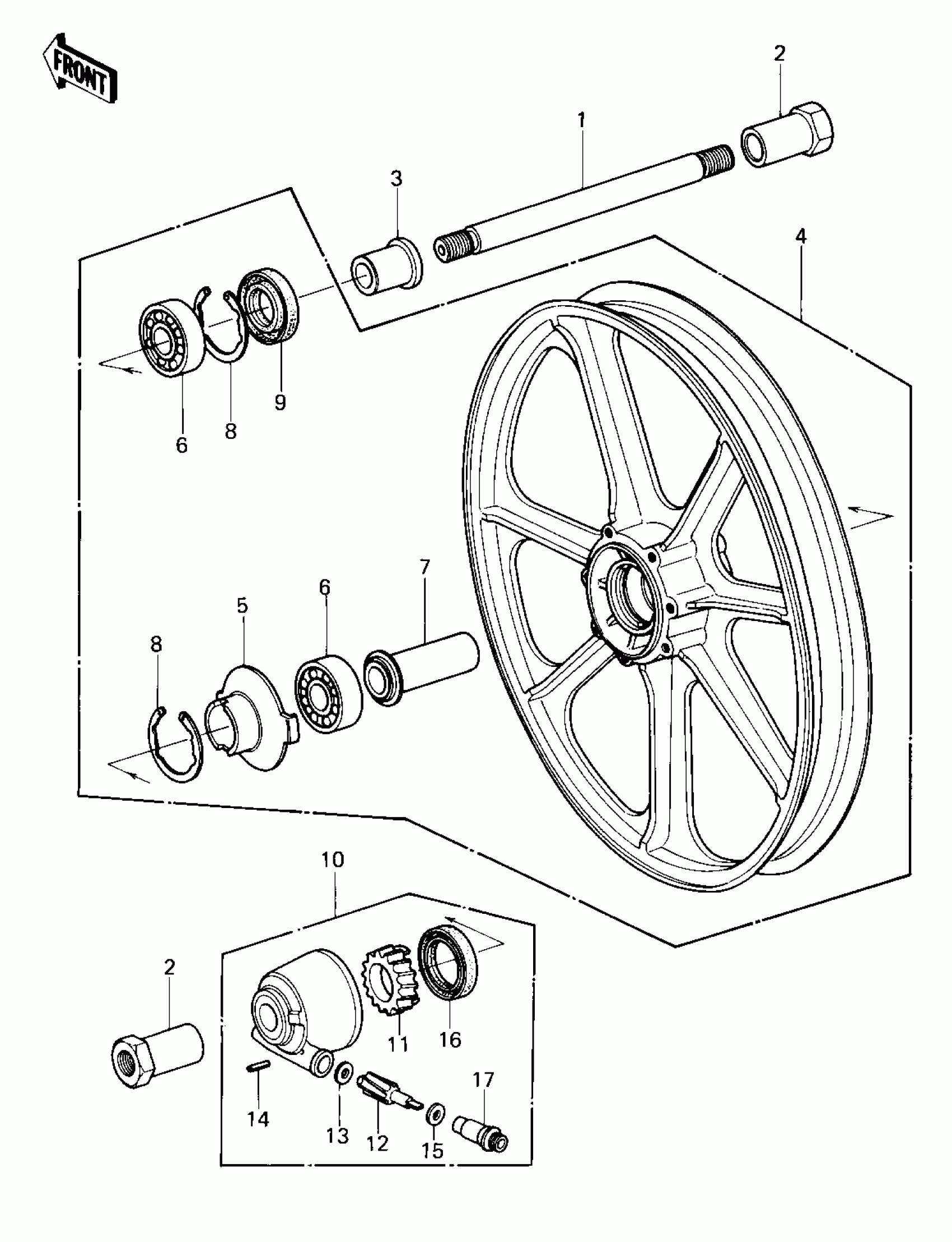

Kawasaki Police 1000 FRONT WHEEL/HUB Diagram

CASE-ASSY-METER GEAR

GEAR-METER SCREW,9T
