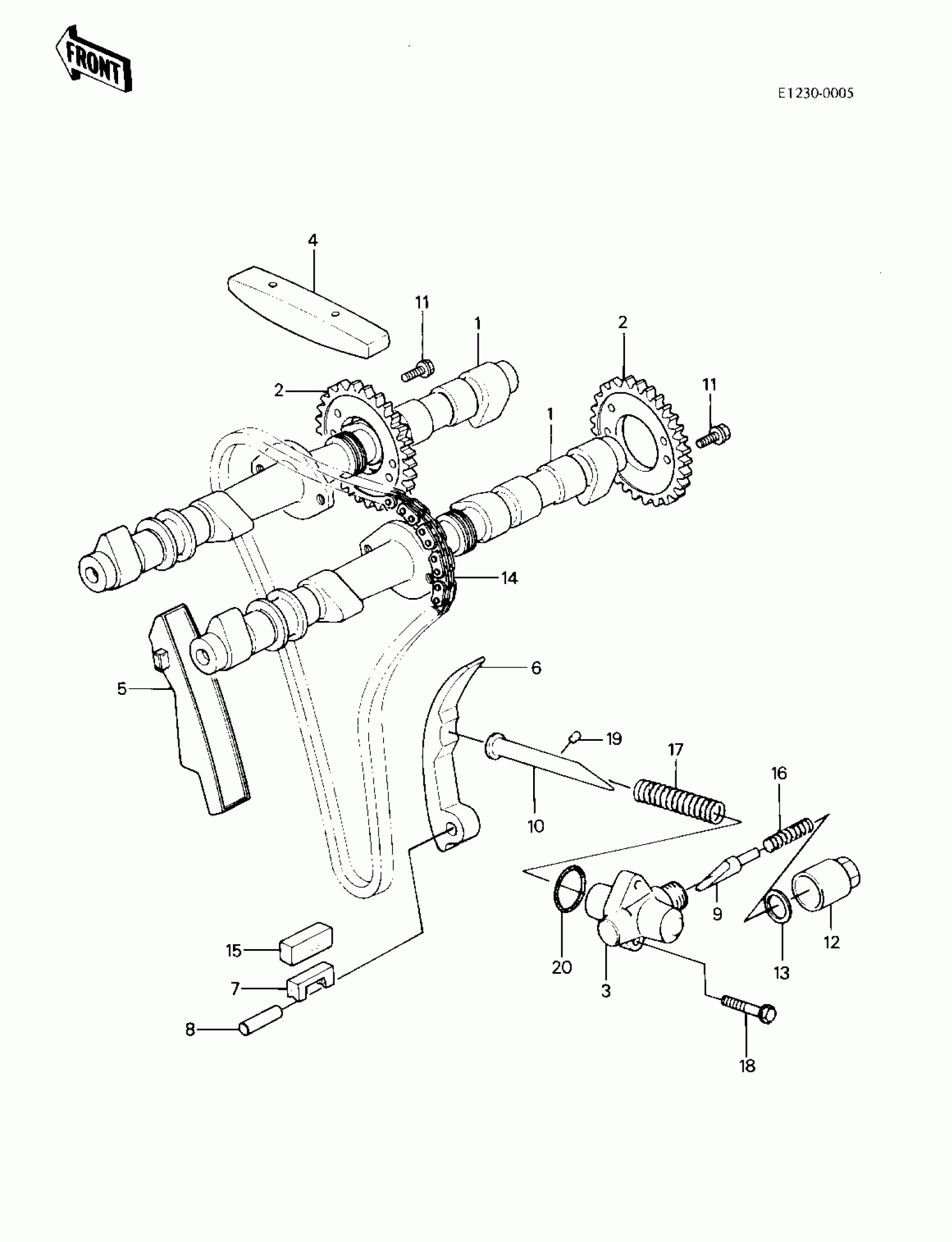

Kawasaki Police 1000 CAMSHAFTS/CHAIN/TENSIONER Diagram

#

Description
Price

1

CAMSHAFT-VALVE

12044-1027

$607.74

2

SPROCKET,CAMSHAFT,42T

12046-1025

$74.35

3

TENSIONER,CAM CHAIN

12049-1009

$55.29

4

GUIDE-CHAIN,CAM,HEAD

12053-1018

$32.75

5

GUIDE-CHAIN,CAM,FR

12053-1048

$60.60

6

GUIDE-CHAIN,CAM,RR

12053-1049

$60.60

7

HOLDER,CAM CHAIN GUIDE

13091-1084

$7.76

8

SHAFT,8X28

13107-1020

Unavailable

9

ROD-PUSH,TENSIONER

13116-1012

$18.36

10

ROD-PUSH,TENSIONER

13116-1038

$43.46

11

BOLT,FLANGED,6X11

92003-208

$3.43

12

NUT,CAP,18MM

92015-1100

Unavailable

13

WASHER,18.3X24X1.4

92022-1175

$3.92

14

CHAIN,CAMSHAFT,75-010X152L

92057-1052

$149.10

15

DAMPER,CAM CHAIN GUIDE

92075-1270

$10.00

16

SPRING,TENSIONER

92081-1302

$4.85

17

SPRING,TENSIONER

92081-1380

$7.97

18

BOLT,FLANGED,6X25

130G0625

Unavailable

18

BOLT-FLANGED,6X25

130Y0625

Unavailable

19

ROLLER,4X8

610A0408

$3.43

20

O RING,22MM

670E2022

$8.19
