10- Electrical Accessories 2, Europe

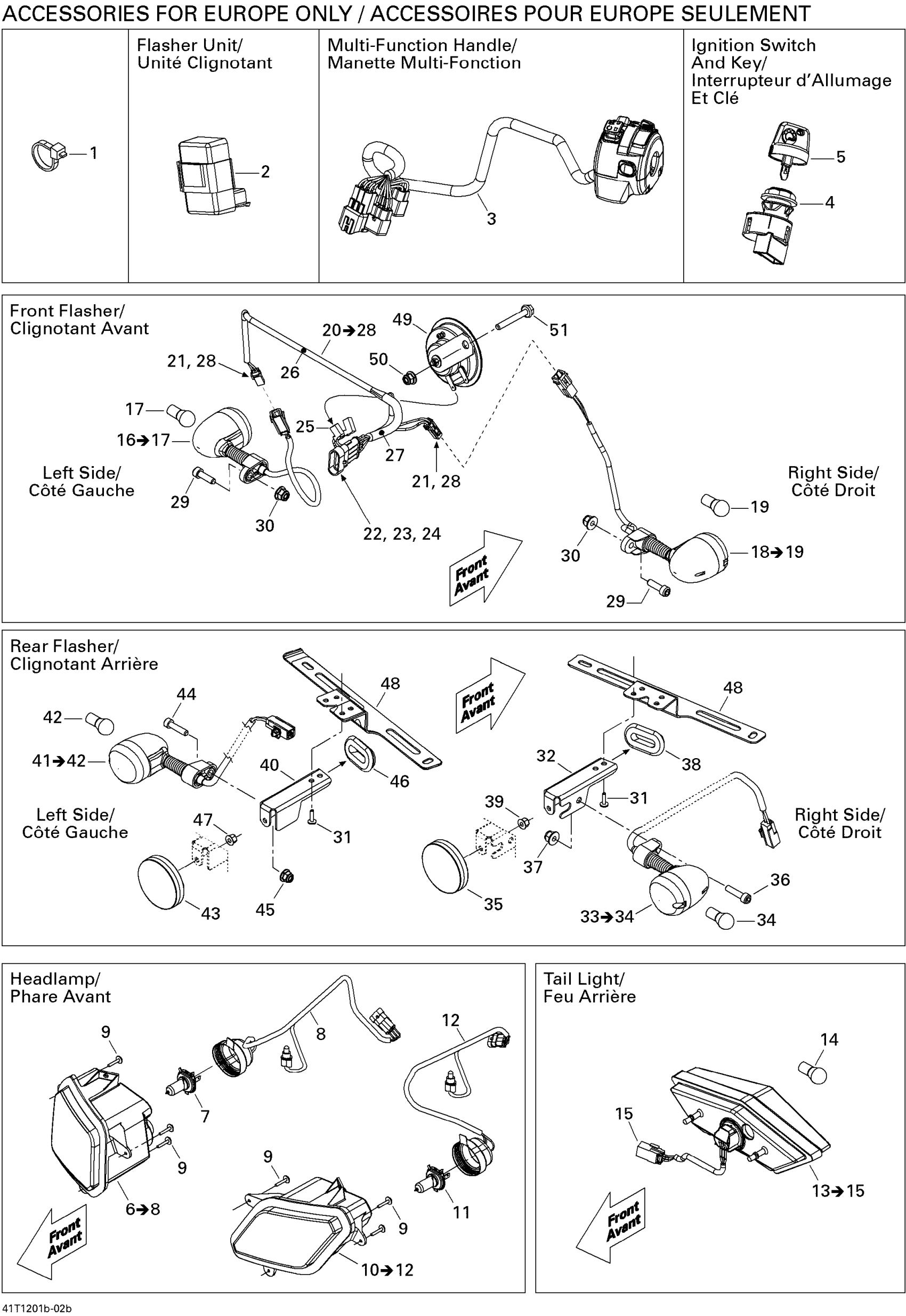

Can-Am Outlander STD, XT, 400 EFI, 2012 10- Electrical Accessories 2, Europe Diagram
#
1
Tie Wrap 368 mm
293750008
Unavailable
2
Flasher Unit
710003239
Unavailable
3
Multi-Function Handle
710004040
Unavailable
4
Ignition Switch | Includes 16 to 17
710002324
Unavailable
5
Black, Electronic Key
710000817
Unavailable
6
RH Headlamp Ass'y | Includes 11 to 13
710000861
Unavailable
7
Bulb, 12V 35/35W
710000871
Unavailable
8
Headlamp Harness
710000923
Unavailable
9
Plastite Screw Type K-40, M4 X 25
250000101
Unavailable
10
LH Headlamp Ass'y | Includes 14 to 16
710000862
Unavailable
11
Bulb, 12V 35/35W
710000871
Unavailable
12
Headlamp Harness
710000923
Unavailable
13
Tail Light Housing Ass'y | Includes 17 to 19
710001204
Unavailable
14
Bulb
520000758
Unavailable
15
Male Housing, 3 Circuits
515175494
Unavailable
16
FLASHING LIGHT ASS'Y - Call your local BRP dealership | Includes 25 to 26
710001079
Unavailable
17
Bulb
415129258
Unavailable
18
FLASHING LIGHT ASS'Y - Call your local BRP dealership | Includes 34 to 35
710001080
Unavailable
19
Bulb
415129258
Unavailable
20
FRONT HARNESS ASS'Y - Call your local BRP dealership | Includes 18 to 26
710001495
Unavailable
21
Female Terminal
515175231
Unavailable
22
Male Terminal | Europe Models
409012900
Unavailable
23
HOUSING, 4CIRCUITS - Call your local BRP dealership | Europe Models
710000576
Unavailable
24
Wire Seal
278001013
Unavailable
25
Female Terminal
409010300
Unavailable
26
Tubing 6 Mm 3000Mm Long
219704425
Unavailable
27
Was 409901700 Tubing (9 mm)
219704399
Unavailable
28
Female Terminal Housing, 2 Circuits
515176296
Unavailable
29
Socket Head Screw M6 X 25
205062544
Unavailable
30
Hex. Flange Elastic Nut M6 x 1.0
233261414
Unavailable
31
Pop Rivet 3/16"
390402400
Unavailable
32
BRACKET - Call your local BRP dealership
710001329
Unavailable
33
FLASHING LIGHT ASS'Y - Call your local BRP dealership | Includes 25 to 26
710001079
Unavailable
34
Bulb
415129258
Unavailable
35
Red Reflector
705011221
Unavailable
36
Socket Head Screw M6 X 20
205062044
Unavailable
37
Hex. Flange Elastic Nut M6 x 1.0
233261414
Unavailable
38
Oblong Grommet
705003668
Unavailable
39
Hex. Flange Elastic Nut M5
233251414
Unavailable
40
BRACKET - Call your local BRP dealership
710001330
Unavailable
41
FLASHING LIGHT ASS'Y - Call your local BRP dealership | Includes 34 to 35
710001080
Unavailable
42
Bulb
415129258
Unavailable
43
Red Reflector
705011221
Unavailable
44
Socket Head Screw M6 X 20
205062044
Unavailable
45
Hex. Flange Elastic Nut M6 x 1.0
233261414
Unavailable
46
Oblong Grommet
705003668
Unavailable
47
Hex. Flange Elastic Nut M5
233251414
Unavailable
48
BRACKET - Call your local BRP dealership
710001241
Unavailable
49
Horn
710004791
Unavailable
50
Hex. Flange Elastic Nut M6 x 1.0
233261414
Unavailable
51
Hex. Flange Screw M6 X 45
207664544
Unavailable
