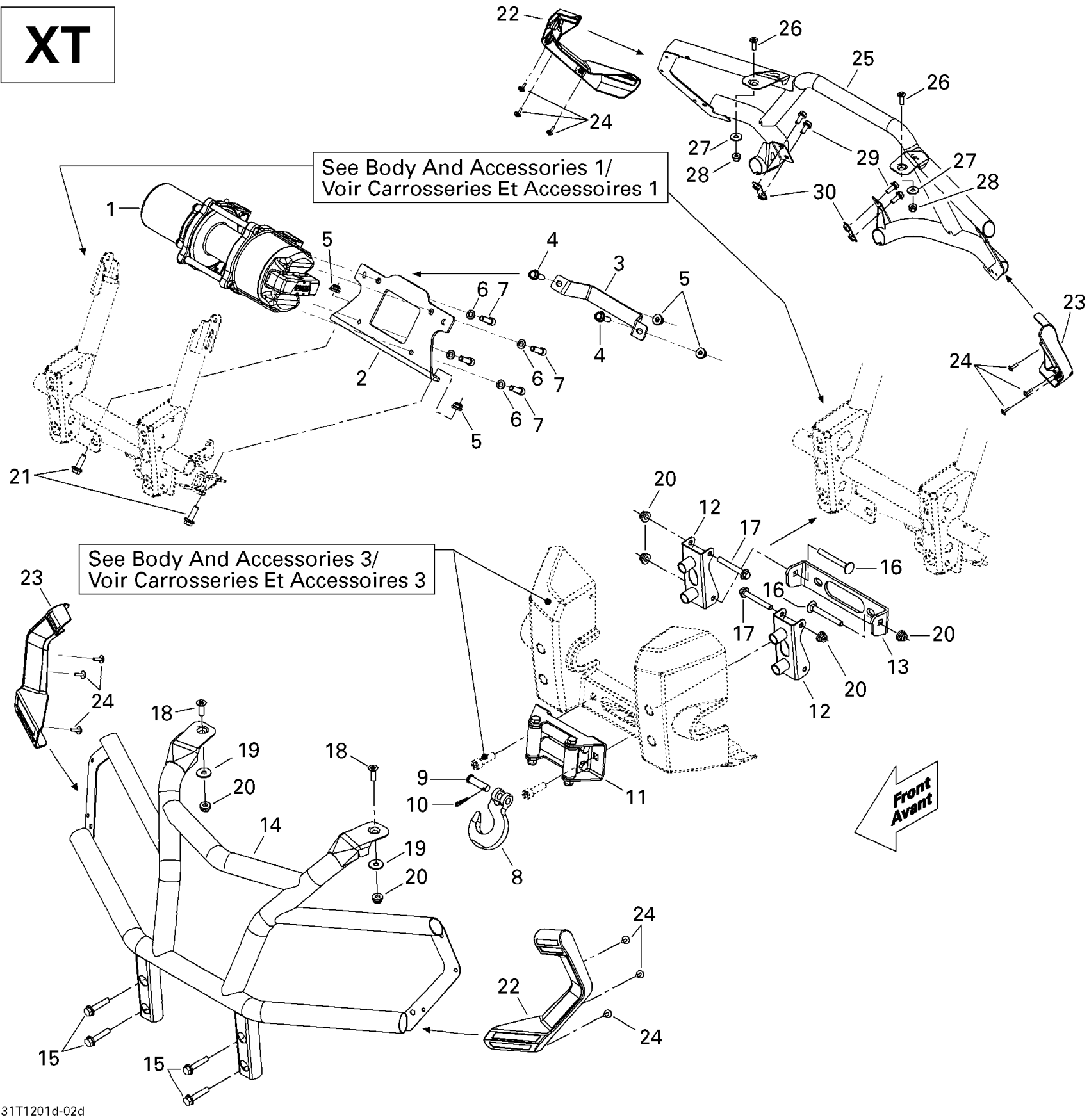

Can-Am Outlander STD, XT, 400 EFI, 2012 Body And Accessories XT Diagram

#

Description
Price

1

WINCH - Call your local BRP dealership | Europe

705008546

Unavailable

2

BLACK MOUNTING PLATE - Call your local BRP dealership | XT

705004278

Unavailable

3

BLACK WINCH BRACKET - Call your local BRP dealership | XT

705001460

Unavailable

4

Hex. Flange Screw M8 X 25

207682544

$1.35

5

Hex. Flange Elastic Nut M8

233281414

$1.47

6

Lock Washer 8 mm

234181401

$0.92

7

Socket Head Screw M8 X 20

205082044

$1.15

8

Winch Hook Kit

705014949

$24.99

9

Clevis Pin

250400021

$13.18

10

Cotter Pin

250400022

$9.69

11

Fairlead_Roller Kit

715007699

$83.99

12

BUMPER BRACKET - Call your local BRP dealership

705003828

Unavailable

13

WINCH BRACKET - Call your local BRP dealership

705003649

Unavailable

14

Front Bumber | XT

705002812

$301.99

15

Not Available As Spare Parts

XXX

Unavailable

16

Carriage Bolt M8 X 70

207787044

$1.37

17

Hex. Flange Screw M8 x 60

207686044

$3.07

18

Not Available As Spare Parts

XXX

Unavailable

19

Not Available As Spare Parts

XXX

Unavailable

20

Not Available As Spare Parts

XXX

Unavailable

20

Hex. Flange Elastic Nut M8

233281414

$1.47

21

Hex. Flange Screw M8 X 25

207682544

$1.35

22

LH Front Cap | XT

705002802

$11.11

23

RH Front Cap | XT

705002803

$11.11

24

Screw M4 X 16

250000725

$3.49

25

Rear Bumber | XT

705002806

$187.99

26

TORX SCREW M8 X 25 - Call your local BRP dealership

235482584

Unavailable

27

Flat Washer 8 mm

234082410

$1.47

28

Hex. Flange Elastic Nut M8

233281414

$1.47

29

Hex Screw Washer Head M8 X 20

207582054

$3.17

30

LINK PLATE - Call your local BRP dealership

705003796

Unavailable
