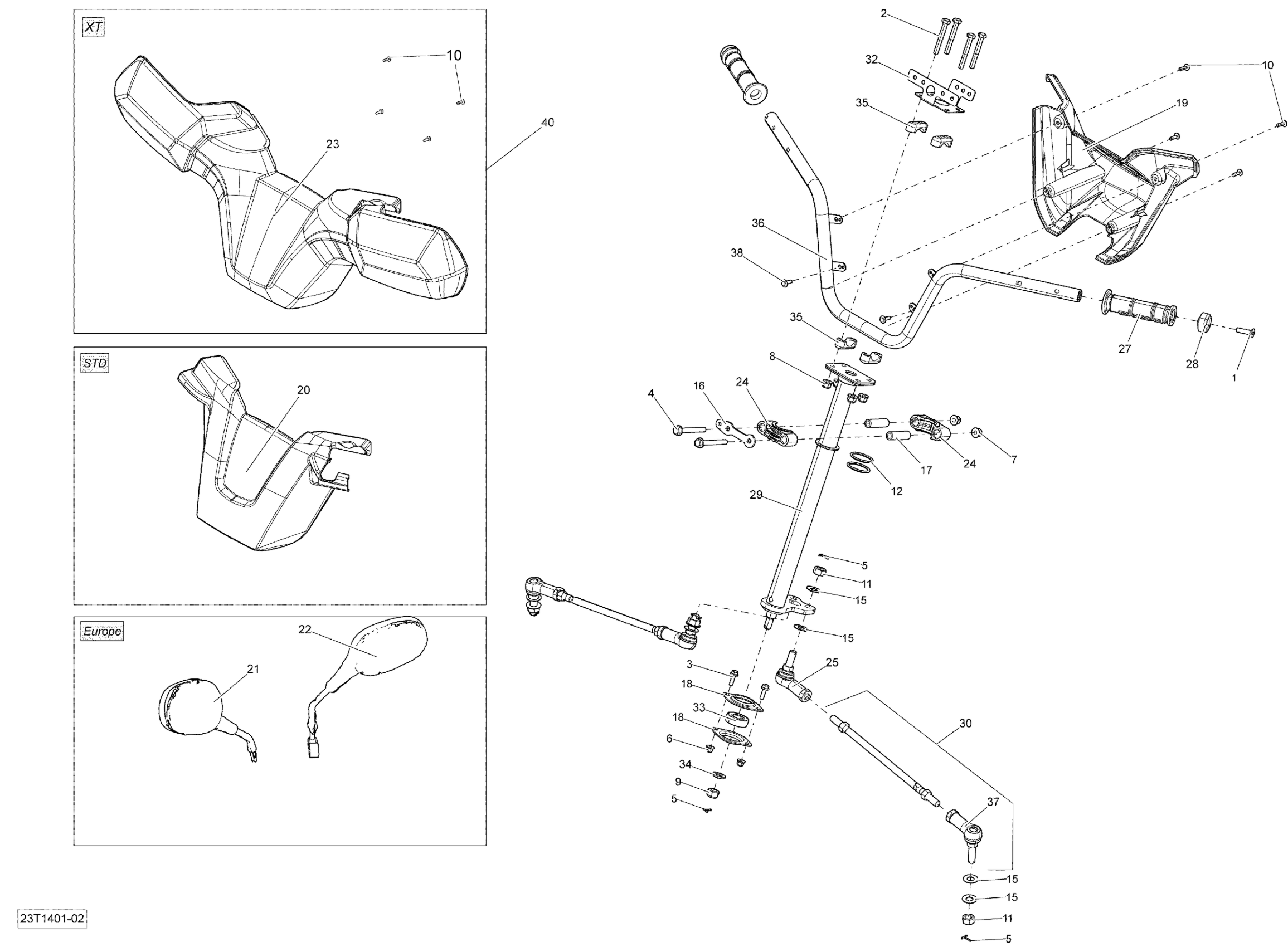

Can-Am Outlander 400 EFI, STD, XT, 2014 07- Steering Diagram
#
1
SOCKET HEAD SCREW, M8 - Call your local BRP dealership
205883046
Unavailable
2
Hex. Screw M8 X 60
207086046
Unavailable
3
Hex. Flange Screw M6 X 20, Scotch Grip
207562034
Unavailable
4
Hex. Flange Screw M8 X 70
207687044
Unavailable
5
Cotter Pin
211400013
Unavailable
6
Hex. Flange Elastic Nut M6 x 1.0
233261414
Unavailable
7
Hex. Flange Elastic Nut M8
233281414
Unavailable
8
Hex. Elastic Flange Nut M8
233281416
Unavailable
9
Hex. Flange Elastic Nut M12
250000047
Unavailable
10
Torx Screw K50 X 16
250000720
Unavailable
11
Nut M12
250100099
Unavailable
12
O-Ring
293300068
Unavailable
15
Hardened Washer
706200281
Unavailable
16
STOPPER PLATE - Call your local BRP dealership
709400053
Unavailable
17
BUSHING - Call your local BRP dealership
709400072
Unavailable
18
FLANGE, BEARING - Call your local BRP dealership
709400152
Unavailable
19
BLACK REAR STEERING COVER - Call your local BRP dealership
709400313
Unavailable
20
BLACK FRONT STEERING COVER - Call your local BRP dealership | STD
709400386
Unavailable
21
LH Mirror | Europe
709400406
Unavailable
22
RH Mirror | Europe
709400407
Unavailable
23
Not Available As Spare Part - Friction Washer
Unavailable
24
Half Bushing
709400471
Unavailable
25
Ball Joint, RH Threads
709400487
Unavailable
27
Handle Grip
709400493
Unavailable
28
END PIECE - Call your local BRP dealership
709400868
Unavailable
29
Main Tube
709401056
Unavailable
30
Tie Rod Ass'y
709401059
Unavailable
32
Connector Bracket
709400586
Unavailable
33
Ball Bearing
709400439
Unavailable
34
Flat Washer 12 mm
234021410
Unavailable
35
Steering Support
709400919
Unavailable
36
Steering | STD
709401237
Unavailable
37
LH Ball Joint
709402303
Unavailable
38
Hex. Plastic Screw M4.8 X 16
243141630
Unavailable
40
HANDLE GUARD, XT - Call your local BRP dealership | Includes 38 to 39 / XT
703100217
Unavailable
