06- Brakes EUROPE

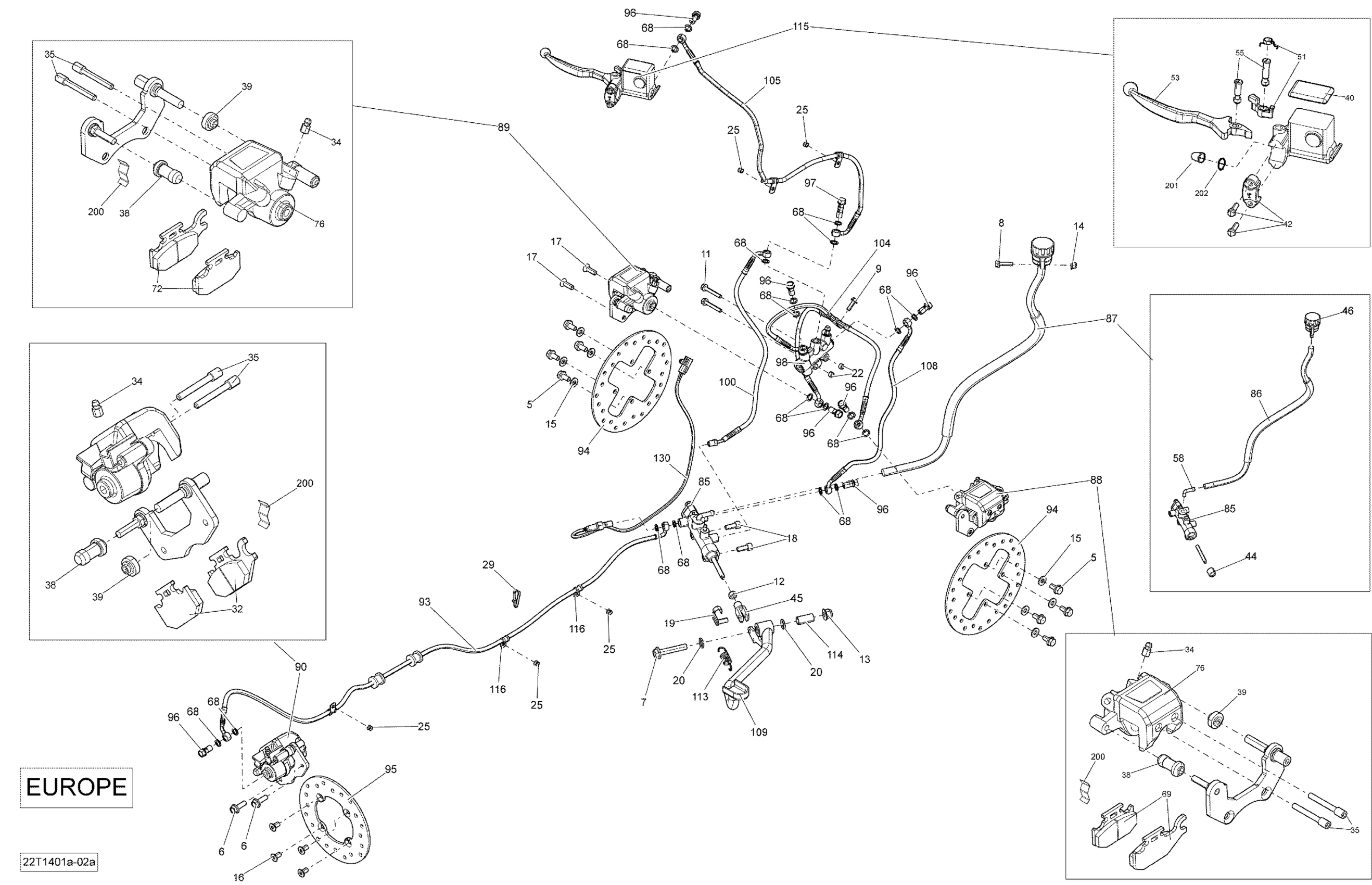

Can-Am Outlander 400 EFI, STD, XT, 2014 06- Brakes EUROPE Diagram
#
5
Hex. Flange Screw M8 X 16, Scotch Grip
207581646
Unavailable
6
Hex. Flange Screw M8 X 25, Scotch Grip
207582544
Unavailable
7
Hex. Flange Screw M10 X 55
207605544
Unavailable
8
Hex. Flange Screw M6 X 25
207662544
Unavailable
9
Hexagonal Head Screw
210262050
Unavailable
11
HEX. SCREW M6 X 40 - Call your local BRP dealership
210264080
Unavailable
12
Hex. Nut M8
232081414
Unavailable
13
Hex. Flange Elastic Nut M10
233201414
Unavailable
14
Hex. Flange Elastic Nut M6 x 1.0
233261414
Unavailable
15
Conical Spring Washer M8
234281474
Unavailable
16
Torx Screw M8 X 16, Scotch Grip
235381646
Unavailable
17
Torx Screw M8 X 25, Scotch Grip
250000143
Unavailable
18
Socket Head Screw M8 X 20, Scotch Grip
250000136
Unavailable
19
Pin Kit
219702305
Unavailable
20
O-Ring
293300144
Unavailable
22
Bushing | DS 650 X
293900104
Unavailable
25
Pop Rivet 3/16”
390910000
Unavailable
29
Tie-Rap 180 mm
414115200
Unavailable
32
LH Brake Pad Kit
705600398
Unavailable
34
Bleeding Screw
705600080
Unavailable
35
Pin Set (2)
705600081
Unavailable
38
Compression Boot
705600082
Unavailable
39
Compression Boot
705600083
Unavailable
40
Cap Set
705600084
Unavailable
42
BRACKET KIT - Call your local BRP dealership
705600087
Unavailable
44
Compression Boot
705600090
Unavailable
45
Yoke
705600100
Unavailable
46
Oil Tank, Brake Fluid Reservoir
705600182
Unavailable
51
PARKING KIT, BRAKE LEVER LOCK - Call your local BRP dealership
705600477
Unavailable
53
Lever Arm
705600243
Unavailable
55
Brake Lever Bolt Kit
705600246
Unavailable
58
PUSHER BRACKET, HOSE CONNECTOR - Call your local BRP dealership
705600064
Unavailable
68
Copper Washer
705601628
Unavailable
69
Brake Pad Kit
705600004
Unavailable
72
Brake Pad Kit
705600014
Unavailable
76
Piston Set
705600078
Unavailable
85
Piston Set
705600255
Unavailable
86
OIL HOUSING HOSE - Call your local BRP dealership
705600754
Unavailable
87
REAR MASTER CYLINDER ASS'Y - Call your local BRP dealership | Includes40 to 48
705600743
Unavailable
88
RH CALIPER - Call your local BRP dealership | Includes 1 to 9
705600728
Unavailable
89
LH CALIPER - Call your local BRP dealership | Includes 10 to 18
705600729
Unavailable
90
REAR CALIPER - Call your local BRP dealership | Includes 55 to 62
705600791
Unavailable
93
Rear Hose | Includes 34 to 35
705600929
Unavailable
94
Disk Brake
705600603
Unavailable
95
Disk Brake
705600604
Unavailable
96
Banjo Bolt (M10 x 1.25 thread)
705600609
Unavailable
97
Banjo Bolt
705600958
Unavailable
98
SPLITTER - Call your local BRP dealership
705600800
Unavailable
100
LINE BRAKE - Call your local BRP dealership
705600756
Unavailable
104
LINE BRAKE - Call your local BRP dealership
705600757
Unavailable
105
LINE BRAKE - Call your local BRP dealership
705600758
Unavailable
108
LINE BRAKE - Call your local BRP dealership
705600759
Unavailable
109
BRAKE PEDAL, BLACK - Call your local BRP dealership
705601154
Unavailable
113
Brake Pedal Spring
705600792
Unavailable
114
Inner Spacer
705600815
Unavailable
115
Front Master Cylinder | Includes 19 to 26
705600844
Unavailable
116
Clamp
293650256
Unavailable
130
Brake Switch
705600798
Unavailable
200
Spring
705600079
Unavailable
201
COMPRESSION BOOT - Call your local BRP dealership
705600089
Unavailable
202
CIRCLIP - Call your local BRP dealership
705600088
Unavailable
