01- Cooling System

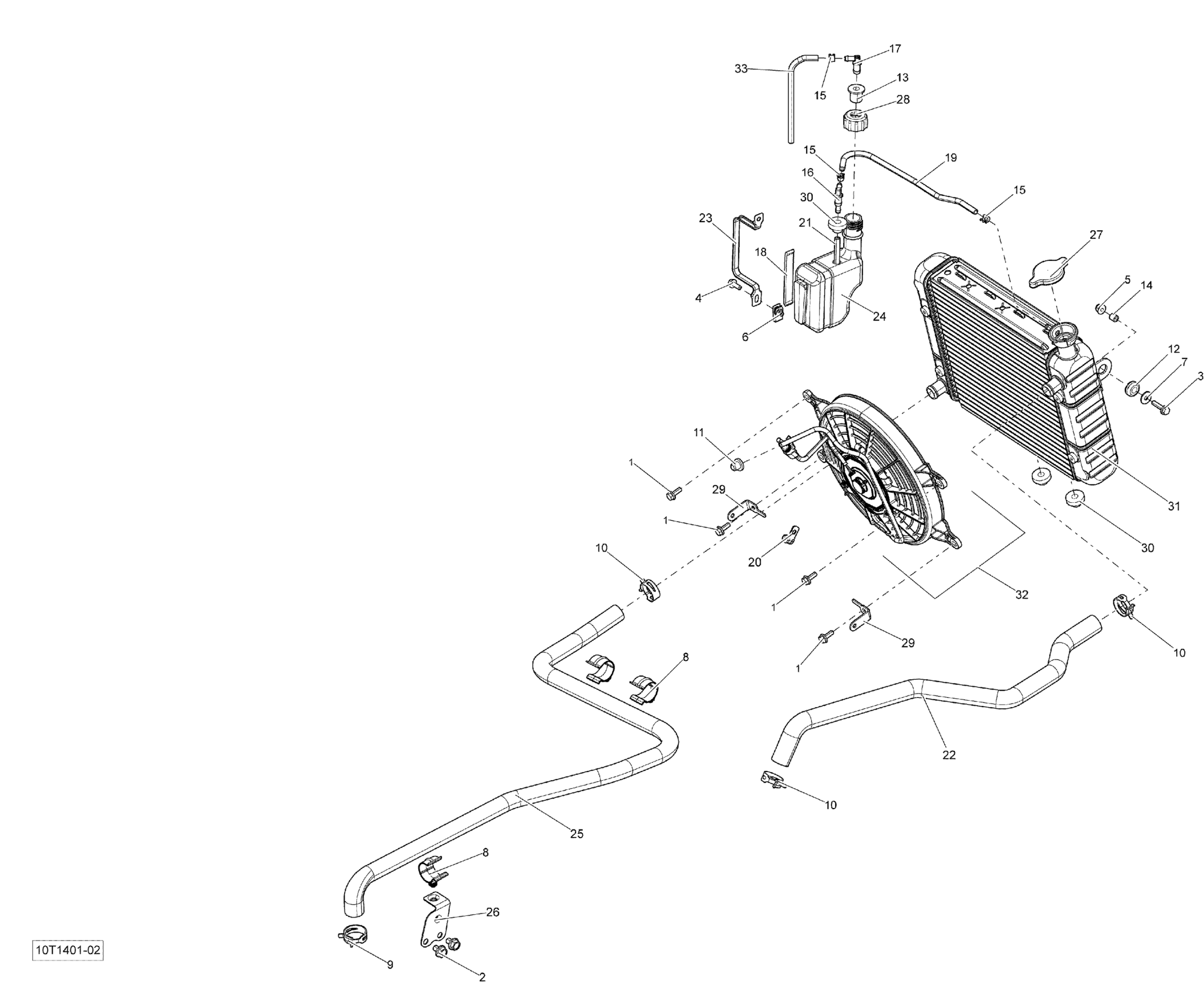

Can-Am Outlander 400 EFI, STD, XT, 2014 01- Cooling System Diagram
#
Description
Price
1
Hex. Flange Screw M6 X 16, Scotch Grip
207561644
Unavailable
2
Hex. Flange Screw M8 X 12, Scotch Grip
207581244
Unavailable
3
Hex. Flange Screw M6 X 25
207662544
Unavailable
4
Hex. Flange Screw M6 X 16
210261650
Unavailable
5
Hex. Flange Elastic Nut M6 x 1.0
233261414
Unavailable
6
Panel Nut M6 X 1.0
250100198
Unavailable
7
Flat Washer
250200082
Unavailable
8
Retainer
275500526
Unavailable
9
Norma Spring Clamp
293650108
Unavailable
10
Norma Spring Clamp
293650109
Unavailable
11
Grommet
293720029
Unavailable
12
Grommet
709000582
Unavailable
13
Grommet
293830136
Unavailable
14
Bushing
293900105
Unavailable
15
Spring Clamp
414554800
Unavailable
16
Elbow Male Connector
414580600
Unavailable
17
Male Connector
414580700
Unavailable
18
Gasket, Neoprene 2000Mm Long
219704476
Unavailable
19
Was 415110000 Polyurethane Hose 5.2 mm
219704414
Unavailable
20
Clamp
293650256
Unavailable
21
Was 415110000 Polyurethane Hose 5.2 mm
219704414
Unavailable
22
RADIATOR INLET HOSE - Call your local BRP dealership
709200077
Unavailable
23
TANK ANCHOR - Call your local BRP dealership
709200080
Unavailable
24
COOLANT TANK - Call your local BRP dealership
709200099
Unavailable
25
HOSE OUTLET RADIATOR - Call your local BRP dealership
709200198
Unavailable
26
Hose Support
709200206
Unavailable
27
Radiator Pressure Cap
709200207
Unavailable
28
Cap
709200586
Unavailable
29
SUPPORT - Call your local BRP dealership
709200284
Unavailable
30
Grommet
709200285
Unavailable
31
RADIATOR ASS'Y - Call your local BRP dealership
709200307
Unavailable
32
Fan Ass'y
709200371
Unavailable
33
Polyurethane Hose 10000Mm Long
219704410
Unavailable
