- Outlander 400 EFI, 2009
10- Main Harness Europe

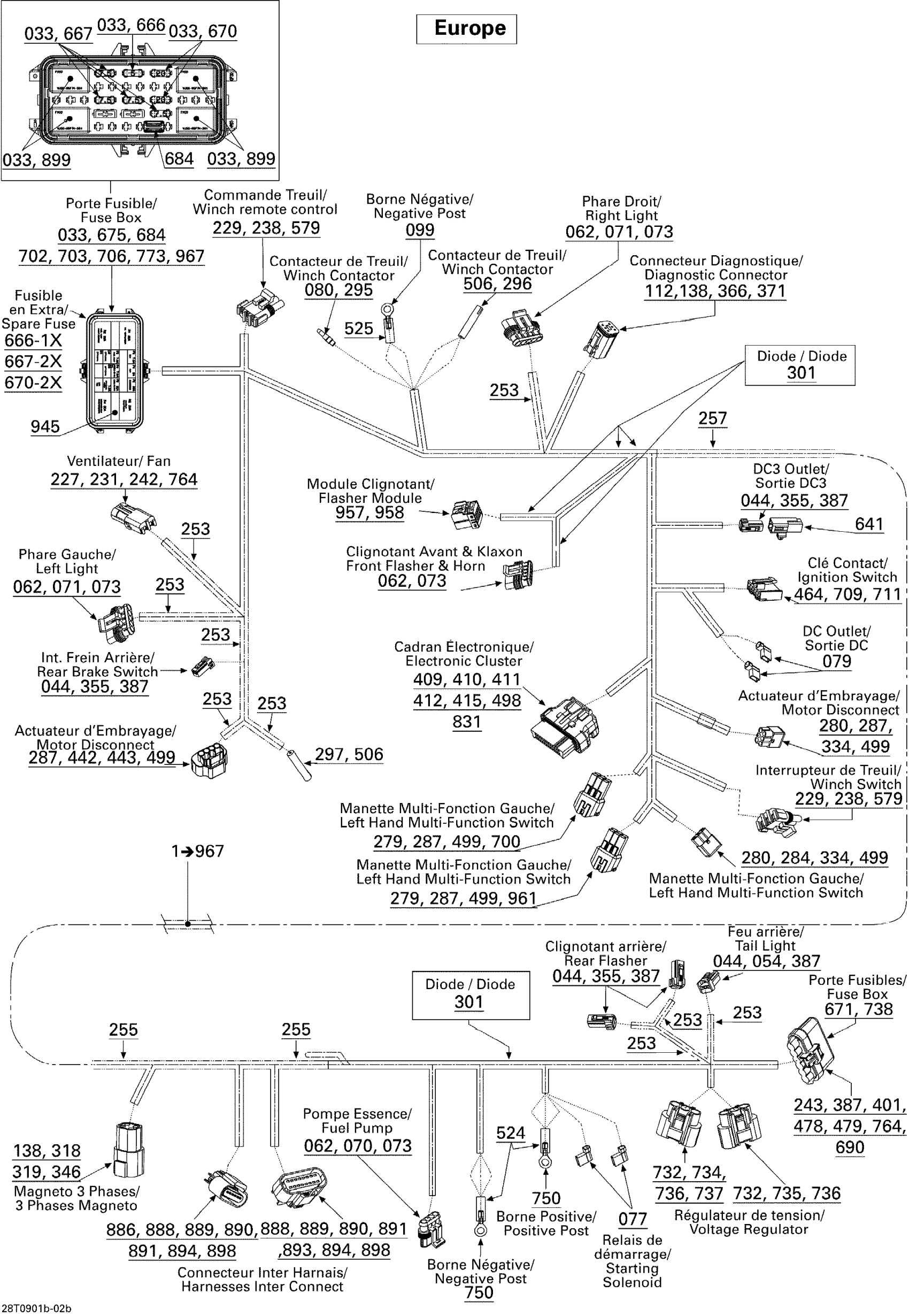

Can-Am Outlander 400 EFI, 2009 10- Main Harness Europe Diagram
#
1
Main Harness | Includes 1 to 967
710001422
Unavailable
33
Wire Seal
278000999
Unavailable
44
Female Terminal
515175231
Unavailable
54
Female Housing, 3 Circuits
515175495
Unavailable
62
Female Terminal
278001014
Unavailable
70
Female Housing, 4 Circuits
409209700
Unavailable
71
Connector
710000780
Unavailable
73
Wire Seal
278001013
Unavailable
77
Female Terminal
409010300
Unavailable
79
Female Terminal
710000038
Unavailable
80
Male Terminal
278000230
Unavailable
99
Open Barrel
278000992
Unavailable
112
Female Terminal
278000632
Unavailable
138
Sealing Cap
293000052
Unavailable
227
Male Terminal
409004300
Unavailable
229
Female Terminal
278000223
Unavailable
231
Female Housing, 2 Circuits
278000217
Unavailable
238
Male Housing, 3 Circuits
278000273
Unavailable
242
Wire Seal
278000218
Unavailable
243
Wire Seal
710000048
Unavailable
253
Tubing 6 Mm 3000Mm Long
219704425
Unavailable
254
Was 409901700 Tubing (9 mm)
219704399
Unavailable
255
Was 409901800 Tubing (13 mm)
219704400
Unavailable
256
Tubing 16 Mm 1000Mm Long
219704408
Unavailable
257
Was 409901600 Tubing 19mm
219704398
Unavailable
279
Male Terminal
409011300
Unavailable
280
Female Terminal
409012100
Unavailable
286
Seal
409012300
Unavailable
287
Cap
710000080
Unavailable
295
Insulated Sheath
278001008
Unavailable
296
Insulated Sheath
278000770
Unavailable
297
Insulated Sheath
278001007
Unavailable
301
Diode
409012700
Unavailable
318
FEMALE HOUSING, 4 CIRCUITS - Call your local BRP dealership
278001477
Unavailable
319
Male Terminal
515175568
Unavailable
334
Female Housing, 6 Circuits
710000081
Unavailable
346
MALE WEDGE, 4 CIRCUITS - Call your local BRP dealership
278001478
Unavailable
355
Female Housing, 2 Circuits
515175658
Unavailable
365
MALE HOUSING, 4 CIRCUITS - Call your local BRP dealership
515175672
Unavailable
366
Male Housing, 6 Circuits
515175673
Unavailable
371
Male Wedge, 6 Circuits
515175678
Unavailable
387
Was 293550004 Dielectric Grease, 150 g
219704453
Unavailable
401
WIRE SEAL - Call your local BRP dealership
278001505
Unavailable
409
Plug
515175812
Unavailable
410
Female Housing, 24 Circuits
515175801
Unavailable
411
Retainer Block
515175802
Unavailable
412
Wire Seal
515175803
Unavailable
415
Female Terminal
515175806
Unavailable
442
Male Housing, 4 Circuits
710000329
Unavailable
443
Female Terminal
710000335
Unavailable
464
Female Terminal
710000274
Unavailable
478
Housing, 6 Circuits
710000888
Unavailable
479
Lock
710000889
Unavailable
484
Seal
415128501
Unavailable
498
Female Housing
710000399
Unavailable
499
Wire Seal
710000402
Unavailable
506
Female Terminal
710000421
Unavailable
524
Heat Shrink Tubing 25 mm
512059668
Unavailable
525
SHRINK TUBING - Call your local BRP dealership
710000482
Unavailable
579
Wire Seal
710000504
Unavailable
641
Male Housing, 2 Circuits
710000667
Unavailable
666
Little Fuse, 5 Amperes
710000742
Unavailable
667
Little Fuse, 7.5 Amperes
710000743
Unavailable
670
Little Fuse, 20 Amperes
710000746
Unavailable
671
Little Fuse, 30 Amperes
710000747
Unavailable
672
Diode
710000748
Unavailable
675
Fuse Box Base Ass´y
415129856
Unavailable
684
Fuse Puller
710000781
Unavailable
690
Female Terminal
710000890
Unavailable
700
Male Terminal Housing, 6 Circuits
710000835
Unavailable
702
Female Terminal
710000836
Unavailable
703
Female Terminal
710000837
Unavailable
706
Cap
710000840
Unavailable
709
Lock
710000848
Unavailable
711
Male Housing, 6 Circuits
710000849
Unavailable
732
Female Terminal
710000877
Unavailable
734
Female Housing, 3 Circuits
710000879
Unavailable
735
Housing, 3 Circuits
710000880
Unavailable
736
Seal
710000881
Unavailable
737
Cap
710000882
Unavailable
738
Cover
710000897
Unavailable
750
Terminal
710000913
Unavailable
757
Female Terminal
278001665
Unavailable
764
Clip
710000992
Unavailable
773
Fuse Cover
710001026
Unavailable
831
Female Terminal
710001131
Unavailable
886
Housing
710001232
Unavailable
888
Seal
710001230
Unavailable
889
Seal
710001233
Unavailable
890
Terminal
710001229
Unavailable
891
Terminal
710001228
Unavailable
893
Housing
710001226
Unavailable
894
Cap
710001225
Unavailable
898
LOCK - Call your local BRP dealership
710001221
Unavailable
899
Relay, 30 AMP | Obsolete. ATV order 515176774
278002168
Unavailable
921
Female Terminal
710001340
Unavailable
930
Wire Seal
515176621
Unavailable
945
Fuse/Relay Decal
710001372
Unavailable
957
HOUSING - Call your local BRP dealership
710001435
Unavailable
958
TERMINAL - Call your local BRP dealership
710001436
Unavailable
961
Male Housing Terminal, 6 Circuits
710001446
Unavailable
967
Foam
278002172
Unavailable
